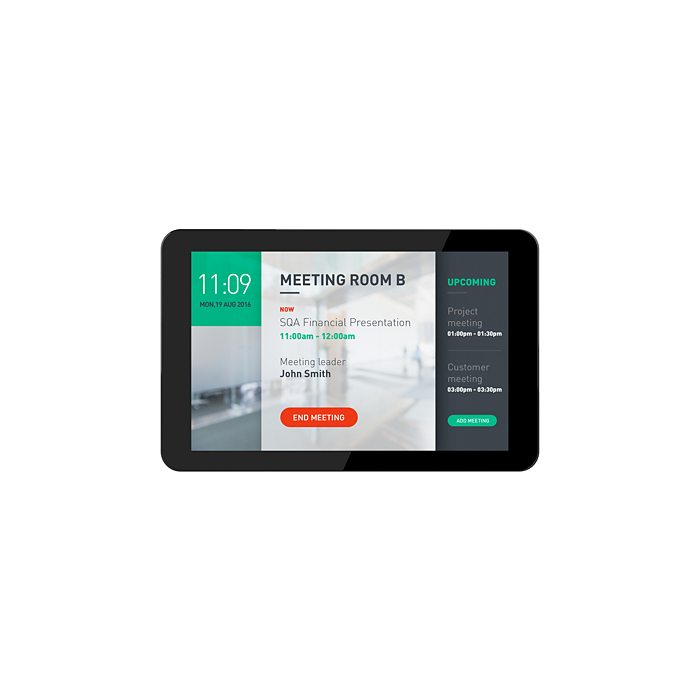

10BDL3051T 10" Multi-Touch Android Display

Diagonal screen size (metric)

25.6  cm

Diagonal screen size (inch)

10.1''  inch

Panel resolution

1280 x 800

Optimum resolution

1280 x 800

Brightness

300  cd/m²

Contrast ratio (typical)

800:1

Aspect ratio

16:9

Response time (typical)

30  ms

Viewing angle (horizontal)

170  degree

Viewing angle (vertical)

170  degree

Display colors

262 Thousand

Operating system

Android 4.4.4

Interactivity

Multi-touch technology

Projected capacitive

Touch points

5 simultaneous touchpoints

Protection glass

0.7 mm tempered safety glass

Connectivity

Video output

HDMI

Audio output

External speaker connector

External control

RJ45

Other connections

• USB
• micro SD

Convenience

Placement

• Landscape (24/7)
• Portrait (12/7)
• Portrait (24/7)

Network controllable

• RJ45
• WiFi

Picture performance

Advanced color control

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Energy saving functions

Smart Power

Memory

8GB eMMC

Dimensions

Set Width

261  mm

Set Height

167.2  mm

Set Depth

29  mm

Product weight

0.71  kg

VESA Mount

75 x 75

Product weight (lb)

1.57  lb

Set Depth (inch)

1.14  inch

Set Height (inch)

6.58  inch

Set Width (inch)

10.28  inch

Bezel width (L/R, T/B)

19.77 (L/R), 13.56 (T/B) mm

Sound

Built-in speakers

2 x 2W

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20 ~ 60  °C

Power

Mains power

DC12V +/- 5%, 1.5A, PoE=24W

Standby power consumption

<0.5W

Consumption (Typical)

6  W

Accessories

Included accessories

• Quick start guide
• Table top stand
• USB cable
• DC power adapter
• HDMI cable
• Power plug
• Silicon foot

Miscellaneous

On-Screen Display Languages

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• CB
• CE
• RoHS
• FCC, Class A
• UL

Warranty

3 year warranty
