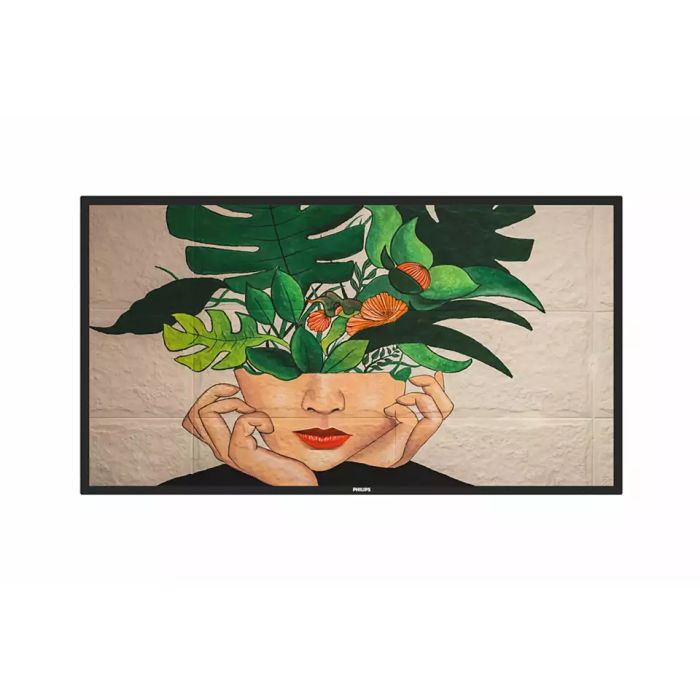

32BDL4550D 32" 24/7 Android Display

Philips

32BDL4550D 32" FHD Easy-Setup 24/7 FailOver SmartPower Android

Key Features:

  • Innovative solutions for any signage application
    • Save and play content with internal memory
    • Integrated dual-band WiFi
    • Android SoC processor. Native and web apps
  • Maximizing the impact of your message
    • Manage settings of multiple displays with CMND & Control
    • Create and update content with CMND & Create
    • Connect and control your content via the cloud
  • Care about you, your business and your audience
    • Ensure your content is running with automatic screenshots
    • Keep your content up and running with FailOver
    • SmartPower for energy saving

In stock

SKU
32BDL4550D
Size
32"

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 32BDL4550D 32" 24/7 Android Display

The 32BDL4550D is a 32 inch FHD easy-setup 24/7 display with internal memory to ensure content is always displayed even with a network outage. Powered by Android version 8.0 for deployment of Android and web apps directly to the display. Use Proof of Play to setup automatic screenshots checking your content is always up and running correctly.

Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing.

Key Features:

  • Innovative solutions for any signage application
    • Save and play content with internal memory
    • Integrated dual-band WiFi
    • Android SoC processor. Native and web apps
  • Maximizing the impact of your message
    • Manage settings of multiple displays with CMND & Control
    • Create and update content with CMND & Create
    • Connect and control your content via the cloud
  • Care about you, your business and your audience
    • Ensure your content is running with automatic screenshots
    • Keep your content up and running with FailOver
    • SmartPower for energy saving

More Information

brand Philips
Specifications

Picture/Display
• Diagonal screen size: 32 inch / 81.28 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60Hz
• Brightness: 400 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.36375 (H) x 0.36375 (V) mm
• Display colors: 16.7 million
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing, 3D
MA deinterlacing, Dynamic contrast enhancement,
Progressive scan
• Operating system: Android 8.0
• Panel technology: IPS


Connectivity
• Video input: Display Port1.2 (x1), DVI-I (x 1),
HDMI 2.0 (x2), USB 2.0 (x2)
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack
• WiFi: dual antenna 2,4Ghz and 5Ghz


Supported Display Resolution
• Computer formats
1920 x 1080 60Hz
1024 x 768 60Hz
1280 x 1024 60Hz
1280 x 720 60Hz
1440 x 900 60 Hz
1600 x 900 60Hz
1680 x 1050 60Hz
640 x 480 60Hz
800 x 600 60Hz
• Video formats
576i 50Hz
576p 50Hz
480p 60Hz
480i 60Hz
1080p 50, 60Hz
1080i 50, 60Hz
720p 50,60 Hz


Dimensions
• Set dimensions (W x H x D):
726.5 x 425.4 x 65.1(@Wal mount)/
69.1(@AC) mm
• Set dimensions in inch (W x H x D):
28.60 x 16.75 x 2.56(@Wall mount)/
2.72(@AC) inch
• Bezel width: 11.9 mm (T/L/R), 17.2 mm (B)
• Product weight (lb): 12.57 lb
• Product weight: 5.7 kg
• Wall Mount: 100(H) x 100(V) mm / 200(H) x
200(V) mm, M4


Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 10 x 15
• Keyboard control: Hidden, Lockable
• Signal loop through: RS232, IR Loopthrough,
DisplayPort, HDMI
• Network controllable: RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low Bright
• WiFi protocol: a b g n, 802.1x


Power
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 44 W
• Consumption (Max): 85 W
• Energy Label Class: G


Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% RH (No
condensation)
• Humidity range (storage) [RH]: 5 - 95% RH (No
condensation)


Sound
• Built-in speakers: 2 x 10W RMS


Accessories
• Included accessories: Quick start guide, RS232
cable, AC Power Cord, IR sensor cable (1.8M),
Remote Control & AAA Batteries
• Stand: BM05911 (Optional)
• Included Accessories: Philips logo (x1), RS232
daisy-chain cable, Screws, USB Cover (x1)


Multimedia Applications
• USB Playback Audio: AAC, HEAAC, MPEG
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Video: MPEG, H.263, H.264, H.265


Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: CE, CCC, RoHS, BSMI, CB,
VCCI, CU, EMF, EnergyStar 8.0, ETL, FCC, Class
A, PSB
• Warranty: 3 year warranty


Internal Player
• CPU: 2 x A53 + 2 x A73
• GPU: ARM Mali G51
• Memory: 3GB DDR
• Storage: 32 GB eMMc
Description

The 32BDL4550D is a 32 inch FHD easy-setup 24/7 display with internal memory to ensure content is always displayed even with a network outage. Powered by Android version 8.0 for deployment of Android and web apps directly to the display. Use Proof of Play to setup automatic screenshots checking your content is always up and running correctly.

Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing.

Key Features:

  • Innovative solutions for any signage application
    • Save and play content with internal memory
    • Integrated dual-band WiFi
    • Android SoC processor. Native and web apps
  • Maximizing the impact of your message
    • Manage settings of multiple displays with CMND & Control
    • Create and update content with CMND & Create
    • Connect and control your content via the cloud
  • Care about you, your business and your audience
    • Ensure your content is running with automatic screenshots
    • Keep your content up and running with FailOver
    • SmartPower for energy saving
