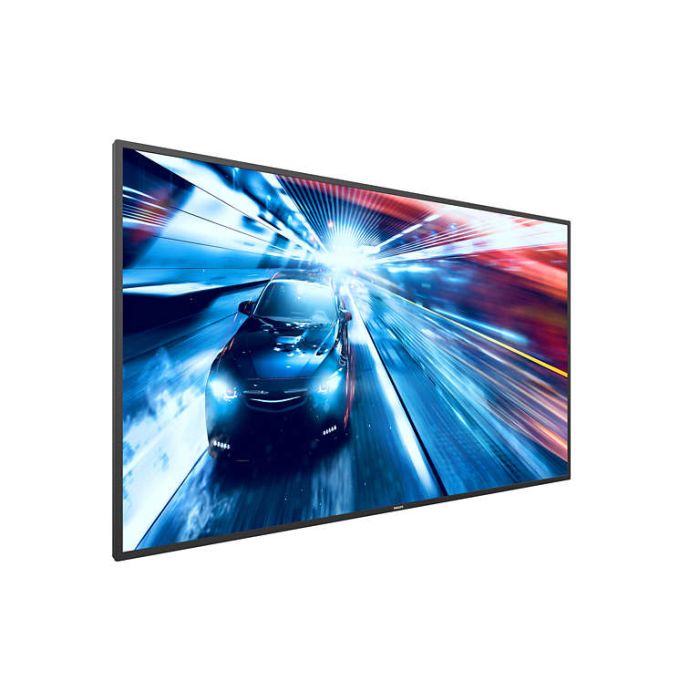

43BDL3010Q 43" Full HD 16/7 Display

Diagonal screen size (metric)

108  cm

Diagonal screen size (inch)

42.5  inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350  cd/m²

Contrast ratio (typical)

3000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

6.5  ms

Aspect ratio

16:9

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.49 x 0.49 mm

Display colors

16.7 Million

DICOM

Clinical D-image

Panel technology

VA

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• 3D MA deinterlacing
• Dynamic contrast enhancement
• Motion compens. deinterlacing
• Progressive scan

Supported Display Resolution

Computer formats

• 1920 x 1080, 60Hz
• 1680 x 1050, 60Hz
• 1600 x 1200, 60Hz
• 1440 x 900, 60Hz
• 1280 x 1024, 60Hz
• 1280 x 800, 60Hz
• 1280 x 720, 60Hz
• 1152 x 870, 75Hz
• 1024 x 768, 60, 70, 75Hz
• 800 x 600, 56, 60, 72, 75Hz
• 720 x 400, 70Hz
• 640 x 480, 60, 67, 72, 75Hz

Video formats

• 1080p, 60Hz
• 1080i, 60Hz
• 1080i, 50Hz
• 720p, 60Hz
• 576p, 50Hz
• 576i, 50Hz
• 480p, 60Hz
• 480i, 60Hz

Connectivity

Video input

• DVI-I x 1
• HDMI (x2)
• USB
• VGA (via DVI)

Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Convenience

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Switch on delay
• Switch on status
• Boot on source

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45

Signal Loop Through

• RS232
• IR Loopthrough

Placement

Landscape

Remote control signal

Lockable

Dimensions

Bezel width

11.9 (TLR) / 14.7 (B) mm

Set Width

968.2  mm

Set Height

559.4  mm

Set Depth

60.9  mm

Set Width (inch)

38.12  inch

Set Height (inch)

22.02  inch

Set Depth (inch)

2.39  inch

VESA Mount

400mm x 400mm , M6

Product weight

8.8  kg

Product weight (lb)

19.4  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

MTBF

50,000  hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Altitude

0 ~ 3000 m

Power

Consumption (On mode)

75 W

Mains power

100 - 240V~, 50/60Hz

Standby power consumption

<0.5 W

comsumption(Max)

110 W

Consumption (Typical)

75  W

Power Saving Features

Smart Power

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• H.264
• JPEG
• MPEG

USB Playback Picture

• BMP
• JPEG
• PNG

USB Playback Audio

• AAC
• WMA
• HEAAC
• MPEG

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• Quick start guide

Included Accessories

• IR sensor cable (1.8 m)
• RS232 daisy-chain cable
• USB Cover and screw x1

Stand

BM02542/BM05922

Miscellaneous

Warranty

3 year warranty
