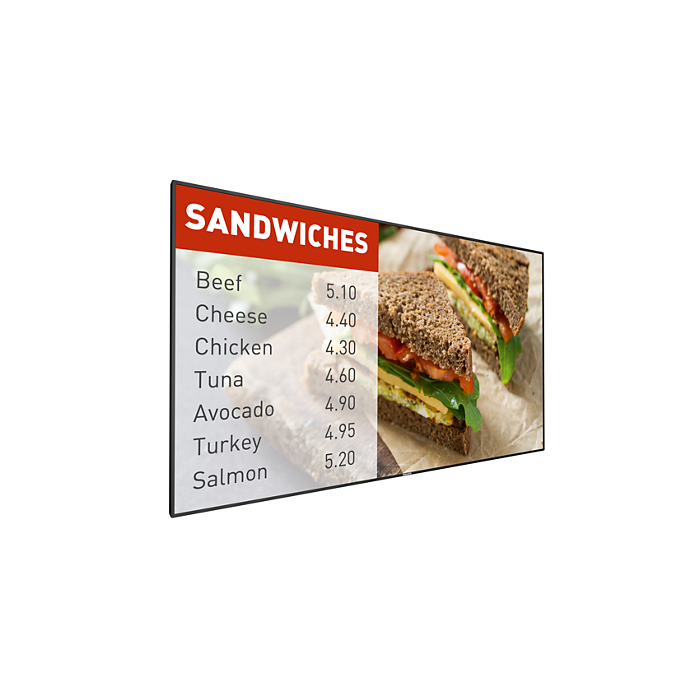

Shop 49BDL5057P 49" 24/7 Android Display

Philips

P-Line Display 49" Powered by Android, 700cd/m2

In stock

SKU: 49BDL5057P
Size: 49"

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 49BDL5057P 49" 24/7 Android Display

Meet the requirements of challenging environments with a robust P-Line professional Full HD display. Tough components keep this display operating from the kitchen to the engine room. The wide viewing angle assures critical information is clear.

Brilliant picture. Strong build.

Android SoC processor. Native and web apps
IPS panel: vibrant colour consistency from every angle
Sturdy metal housing
D-image: clinically precise imaging

Effortless setup. Total control

CMND & Deploy. Install and launch apps remotely
Operate, monitor and maintain with CMND & Control
CMND & Create. Develop and drive your own content
Proof of Play for Android content. Know what's playing
Integrated mPCIe slot for optional 4G/LTE module

Robust system solution

Energy-saving automatic backlight control
Integrated HTML5 browser. Play and control online content
FailOver ensures content is constantly playing

More Information

Brand	Philips
Specifications	Picture/Display Diagonal screen size: 48.5 inch Panel resolution: 1920x1080p Optimum resolution: 1920 x 1080 @ 60Hz Brightness: 700 cd/m² Contrast ratio (typical): 1300:1 Dynamic contrast ratio: 500,000:1 Aspect ratio: 16:9 Response time (typical): 8 ms Pixel pitch: 0.55926 x 0.55926 mm Display colors: 1.07 billion Viewing angle (horizontal): 178 degree Viewing angle (vertical): 178 degree Operating system: Android 5.1.1 Connectivity Video input Display Port1.2x1 DVI-I x 1 HDMI 1.4x2 USB 2.0 (Type A) x2 USB 2.0 (Type B )x1 Video output DVI-I x1 DisplayPort1.2x1 Audio input 3.5 mm jack Audio output 3.5mm jack Other connections micro SD x1 Micro USB(type B)x1 OPS Optional WiFi functionality requires WiFi module and external antennas External control RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack Supported Display Resolution Computer formats 1920 x 1080, 60Hz 1360 x 768, 60Hz 1280 x 800, 60Hz 1280 x 768, 60Hz 1024 x 768, 60, 75Hz 1280 x 1024, 60Hz 1600 x 1200, 60Hz 640 x 480, 60, 72, 75Hz 720 x 400, 70Hz 800 x 600, 60, 75Hz Video formats 1080p, 50, 60Hz 720p, 50, 60Hz 576p, 50Hz 480p, 60Hz 1080i, 25, 30Hz 480I, 30Hz 576i, 25Hz Dimensions Set Width 1092.8 mm Set Height 623.0 mm Set Depth 71.1 mm Set Width (inch) 43.0 inch Set Height (inch) 24.5 inch Set Depth (inch) 2.80 inch Bezel width 6.5 mm Product weight (lb) 41.9 lb Product weight 19.0 kg VESA Mount 400 x 400 mm, M6 Convenience Placement Landscape Portrait Tiled Matrix Up to 15 x 15 Keyboard control Hidden Lockable Signal Loop Through DVI VGA RS232 IR Loopthrough DisplayPort Network controllable RJ45 RS232 HDMI (One Wire) Energy saving functions Smart Power Screen saving functions Pixel Shift, Low Bright Ease of installation AC Out Carrying Handles Other convenience G sensor Power Standby power consumption <0.5 W Mains power 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (Typical) 95 W comsumption(Max) 240 W Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Relative humidity 20 ~ 80 % Altitude 0 ~ 3000 m MTBF 60,000 hour(s) Sound Built-in speakers 2 x 10W RMS Accessories Included accessories Remote Control Batteries for remote control Quick start guide AC Power Cord RS232 cable Included Accessories Edge Alignment Kit (1 )-2pcs Edge Alignment Kit (2)-1pcs Logo guide Philips logo Thumbscrew (8pcs) RS232 daisy-chain cable Stand BM04642/00( optional) Multimedia Applications USB Playback Audio AAC M4A MP3 WMA MP1 MP2 USB Playback Picture BMP GIF JPEG JPG PNG USB Playback Video MKV MP4 MPG TS VOB 3GP AVI DAT FLV MOV WEBM Miscellaneous On-Screen Display Languages English French German Spanish Polish Turkish Russian Italian Simplified Chinese Traditional Chinese Arabic Japanese Danish Dutch Finnish Norwegian Portuguese Swedish Regulatory approvals CE CCC CB CECP BSMI EAC EnergyStar 7.0 UL/cUL VCCI EMF PSB FCC, Class A PSE Warranty 3 year warranty
Description	Meet the requirements of challenging environments with a robust P-Line professional Full HD display. Tough components keep this display operating from the kitchen to the engine room. The wide viewing angle assures critical information is clear. Brilliant picture. Strong build. Android SoC processor. Native and web apps IPS panel: vibrant colour consistency from every angle Sturdy metal housing D-image: clinically precise imaging Effortless setup. Total control CMND & Deploy. Install and launch apps remotely Operate, monitor and maintain with CMND & Control CMND & Create. Develop and drive your own content Proof of Play for Android content. Know what's playing Integrated mPCIe slot for optional 4G/LTE module Robust system solution Energy-saving automatic backlight control Integrated HTML5 browser. Play and control online content FailOver ensures content is constantly playing

Brand

Philips

Specifications

Picture/Display

Diagonal screen size: 48.5 inch
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60Hz
Brightness: 700 cd/m²
Contrast ratio (typical): 1300:1
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 8 ms
Pixel pitch: 0.55926 x 0.55926 mm
Display colors: 1.07 billion
Viewing angle (horizontal): 178 degree
Viewing angle (vertical): 178 degree
Operating system: Android 5.1.1

Connectivity
Video input
- Display Port1.2x1
- DVI-I x 1
- HDMI 1.4x2
- USB 2.0 (Type A) x2
- USB 2.0 (Type B )x1
Video output
- DVI-I x1
- DisplayPort1.2x1
Audio input

3.5 mm jack

Audio output

3.5mm jack

Other connections
- micro SD x1
- Micro USB(type B)x1
- OPS
Optional WiFi functionality

requires WiFi module and external antennas

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1360 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60, 75Hz
- 1280 x 1024, 60Hz
- 1600 x 1200, 60Hz
- 640 x 480, 60, 72, 75Hz
- 720 x 400, 70Hz
- 800 x 600, 60, 75Hz
Video formats
- 1080p, 50, 60Hz
- 720p, 50, 60Hz
- 576p, 50Hz
- 480p, 60Hz
- 1080i, 25, 30Hz
- 480I, 30Hz
- 576i, 25Hz
Dimensions

Set Width

1092.8 mm

Set Height

623.0 mm

Set Depth

71.1 mm

Set Width (inch)

43.0 inch

Set Height (inch)

24.5 inch

Set Depth (inch)

2.80 inch

Bezel width

6.5 mm

Product weight (lb)

41.9 lb

Product weight

19.0 kg

VESA Mount

400 x 400 mm, M6
Convenience
Placement
- Landscape
- Portrait
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal Loop Through
- DVI
- VGA
- RS232
- IR Loopthrough
- DisplayPort
Network controllable
- RJ45
- RS232
- HDMI (One Wire)
Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation
- AC Out
- Carrying Handles
Other convenience

G sensor
Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

95 W

comsumption(Max)

240 W
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 ~ 80 %

Altitude

0 ~ 3000 m

MTBF

60,000 hour(s)
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- AC Power Cord
- RS232 cable
Included Accessories
- Edge Alignment Kit (1 )-2pcs
- Edge Alignment Kit (2)-1pcs
- Logo guide
- Philips logo
- Thumbscrew (8pcs)
- RS232 daisy-chain cable
Stand

BM04642/00( optional)
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- MP3
- WMA
- MP1
- MP2
USB Playback Picture
- BMP
- GIF
- JPEG
- JPG
- PNG
USB Playback Video
- MKV
- MP4
- MPG
- TS
- VOB
- 3GP
- AVI
- DAT
- FLV
- MOV
- WEBM
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- CCC
- CB
- CECP
- BSMI
- EAC
- EnergyStar 7.0
- UL/cUL
- VCCI
- EMF
- PSB
- FCC, Class A
- PSE
Warranty

3 year warranty

Description

Brilliant picture. Strong build.

Android SoC processor. Native and web apps
IPS panel: vibrant colour consistency from every angle
Sturdy metal housing
D-image: clinically precise imaging

Effortless setup. Total control

CMND & Deploy. Install and launch apps remotely
Operate, monitor and maintain with CMND & Control
CMND & Create. Develop and drive your own content
Proof of Play for Android content. Know what's playing
Integrated mPCIe slot for optional 4G/LTE module

Robust system solution

Energy-saving automatic backlight control
Integrated HTML5 browser. Play and control online content
FailOver ensures content is constantly playing
