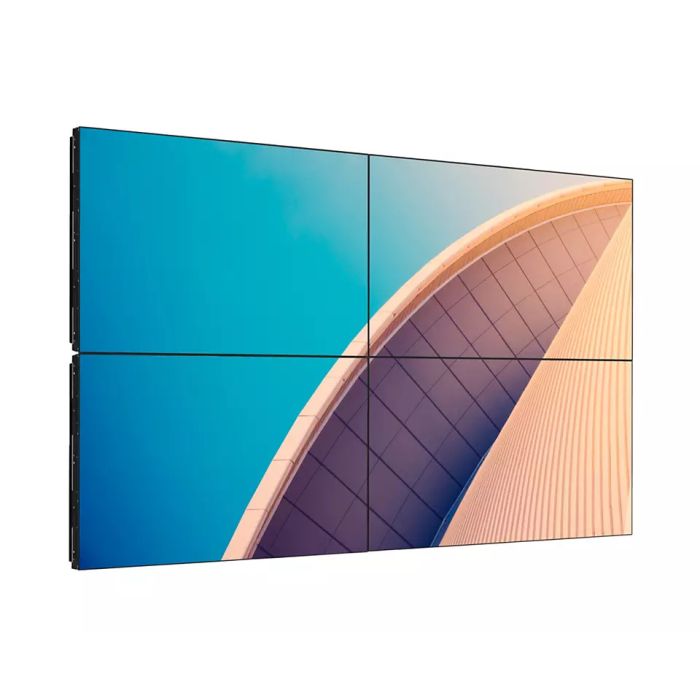

Shop 55BDL3105X 55" FHD 24/7 Video Wall Display

Philips

55BDL3105X 55" FHD 24/7 Video-Wall 3.5mm-Bezel OPS

Key Features:

Immersive visual experience
- Direct LED IPS display with brilliant FHD picture quality
- Ultra-narrow 3.5mm bezel for near seamless display linking
- Pure Colour Pro and advanced colour accuracy
Control made easy
- Remote system management through CMND
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- FailOver ensures content is always playing
- OPS slot allows for PC embedding without cabling
- Energy saving automatic backlight control when using CRD41

In stock

SKU: 55BDL3105X
Size: 55"

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 55BDL3105X 55" FHD 24/7 Video Wall Display

The 55BDL3105X is a 55" FHD 24/7 video wall display designed with an ultra-narrow bezel for use in tiled screen setups. Equipped with CMND & Control for network management along with Pure Colour Pro for better visual calibration.

Key Features:

Immersive visual experience
- Direct LED IPS display with brilliant FHD picture quality
- Ultra-narrow 3.5mm bezel for near seamless display linking
- Pure Colour Pro and advanced colour accuracy
Control made easy
- Remote system management through CMND
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- FailOver ensures content is always playing
- OPS slot allows for PC embedding without cabling
- Energy saving automatic backlight control when using CRD41

More Information

Brand	Philips
Specifications	Picture/Display • Diagonal screen size: 54.6 inch / 138.7 cm • Panel resolution: 1920x1080p • Optimum resolution: 1920 x 1080 @ 60 Hz • Brightness: 500 cd/m² • Contrast ratio (typical): 1200:1 • Dynamic contrast ratio: 500,000:1 • Response time (typical): 8 ms • Aspect ratio: 16:9 • Viewing angle (H / V): 178 / 178 degree • Pixel pitch: 0.63 x 0.63 mm • Display colors: 1.07 B • Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement Supported Display Resolution • Computer formats 1920 x 1080 60Hz 1600 x 1200 60Hz 1366 x 768 60Hz 1360 x 768 60Hz 1280 x 1024 60Hz 1280 x 800 60Hz 1280 x 768 60Hz 1024 x 768 60, 75Hz 1280 x 960 60Hz 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 60, 75Hz • Video formats 1080p 50, 60Hz 720p 50, 60Hz 1080i 25, 30Hz Connectivity • Video input: Component BNC (x3), Composite (Share component Y), DisplayPort, DVI-D (x1), VGA (Analog D-Sub) (x1), HDMI (x2) • Video output: DisplayPort, DVI-I (x1) • Audio input: 3.5 mm jack, Audio Left/Right (RCA) • Audio output: Audio Left/Right (RCA) • External control: IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack, RJ45 • Other connections: OPS Convenience • Signal loop through: RS232, DisplayPort, IR Loopthrough • Ease of installation: Carrying Handles, Smart Insert • Energy saving functions: Smart Power • Network controllable: RS232, RJ45 • Placement: Landscape, Portrait • Screen saving functions: Pixel Shift, Low Bright • Tiled Matrix: Up to 15 x 15 • Control software: SICP / CMND&Control Dimensions • Bezel thickness: 3.5 mm (A-A) • Bezel width: Top/Left: 2.3mm, Bottom/Right: 1.2mm • Set dimensions (W x H x D): 1213.4 x 684.2 x 98 mm(D@Wall Mount)/ 99.2 (D@Handle) mm • Set dimensions in inch (W x H x D): 47.77 x 26.94 x 3.86 (D@Wall Mount)/ 3.91 (D@Handle) inch • Product weight: 26.2 kg • Wall Mount: 400 x 400 mm Operating conditions • Temperature range (operation): 0 ~ 40 °C • Temperature range (storage): -20 ~ 60 °C • Altitude: 0 ~ 3000 m • MTBF: 50,000 hour(s) • Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation) • Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation) Power • Standby power consumption: <0.5W • Consumption (Max): 320 W • Consumption (Typical): 160 W • Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz • Energy Label Class: G Sound • Built-in speakers: 2 x 10W (RMS) Accessories • Included accessories: Remote Control, Batteries for remote control, AC Power Cord, Quick start guide, Edge alignment pins, DVI-D cable, RS232 cable • Optional accessories: Edge finishing kit, Color calibration kit, CRD41 • Included Accessories: Edge Alignment Kit (1) -1 pcs, Edge Alignment Kit (2) - 2 pcs, HDMI cable (1.8 m) (x1), IR cable, IR sensor cable (1.8 m) (x1), RS232 daisy chain cable, Thumb Screw (x8) Miscellaneous • On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish • Regulatory approvals: CE, CB, BSMI, CU, EPA, ETL, FCC, Class A, PSB, RoHS, VCCI • Warranty: 3 year warranty Multimedia Applications • USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, PLS, WMA • USB Playback Picture: BMP, GIF, JPEG, JPG, PNG • USB Playback Video: ISM, M4V, Manifest, MK3D, MKV, MP4, MPD, MPEG, MPG, MT2, MTS, TS, TTS, VOB
Description	The 55BDL3105X is a 55" FHD 24/7 video wall display designed with an ultra-narrow bezel for use in tiled screen setups. Equipped with CMND & Control for network management along with Pure Colour Pro for better visual calibration. Key Features: Immersive visual experience Direct LED IPS display with brilliant FHD picture quality Ultra-narrow 3.5mm bezel for near seamless display linking Pure Colour Pro and advanced colour accuracy Control made easy Remote system management through CMND Operate, monitor and maintain with CMND & Control Add Android processing power with an optional CRD50 module Powerful system solution Tiling mode. Create tiled 4K videowalls of any size FailOver ensures content is always playing OPS slot allows for PC embedding without cabling Energy saving automatic backlight control when using CRD41

Brand

Philips

Specifications

Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.63 x 0.63 mm
• Display colors: 1.07 B
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing,
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement

Supported Display Resolution
• Computer formats
1920 x 1080 60Hz
1600 x 1200 60Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 768 60Hz
1024 x 768 60, 75Hz
1280 x 960 60Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
• Video formats
1080p 50, 60Hz
720p 50, 60Hz
1080i 25, 30Hz

Connectivity
• Video input: Component BNC (x3), Composite
(Share component Y), DisplayPort, DVI-D (x1),
VGA (Analog D-Sub) (x1), HDMI (x2)
• Video output: DisplayPort, DVI-I (x1)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/Right (RCA)
• External control: IR (in/out) 3.5 mm jack, RS232C
(in/out) 2.5 mm jack, RJ45
• Other connections: OPS

Convenience
• Signal loop through: RS232, DisplayPort, IR
Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Placement: Landscape, Portrait
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 15 x 15
• Control software: SICP / CMND&Control

Dimensions
• Bezel thickness: 3.5 mm (A-A)
• Bezel width: Top/Left: 2.3mm, Bottom/Right:
1.2mm
• Set dimensions (W x H x D): 1213.4 x 684.2 x 98
mm(D@Wall Mount)/ 99.2 (D@Handle) mm
• Set dimensions in inch (W x H x D):
47.77 x 26.94 x 3.86 (D@Wall Mount)/ 3.91
(D@Handle) inch
• Product weight: 26.2 kg
• Wall Mount: 400 x 400 mm

Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH
(No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)

Power
• Standby power consumption: <0.5W
• Consumption (Max): 320 W
• Consumption (Typical): 160 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Energy Label Class: G

Sound
• Built-in speakers: 2 x 10W (RMS)

Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, Quick start
guide, Edge alignment pins, DVI-D cable, RS232
cable
• Optional accessories: Edge finishing kit, Color
calibration kit, CRD41
• Included Accessories: Edge Alignment Kit (1) -1
pcs, Edge Alignment Kit (2) - 2 pcs, HDMI cable
(1.8 m) (x1), IR cable, IR sensor cable (1.8 m) (x1),
RS232 daisy chain cable, Thumb Screw (x8)

Miscellaneous
• On-Screen Display Languages: Arabic, Simplified
Chinese, Traditional Chinese, English, French,
German, Italian, Japanese, Polish, Russian, Spanish,
Turkish
• Regulatory approvals: CE, CB, BSMI, CU, EPA,
ETL, FCC, Class A, PSB, RoHS, VCCI
• Warranty: 3 year warranty

Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,
M3U, M4A, MP3, MP4, PLS, WMA
• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG
• USB Playback Video: ISM, M4V, Manifest, MK3D,
MKV, MP4, MPD, MPEG, MPG, MT2, MTS, TS,
TTS, VOB

Description

Key Features:

Immersive visual experience
- Direct LED IPS display with brilliant FHD picture quality
- Ultra-narrow 3.5mm bezel for near seamless display linking
- Pure Colour Pro and advanced colour accuracy
Control made easy
- Remote system management through CMND
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- FailOver ensures content is always playing
- OPS slot allows for PC embedding without cabling
- Energy saving automatic backlight control when using CRD41
