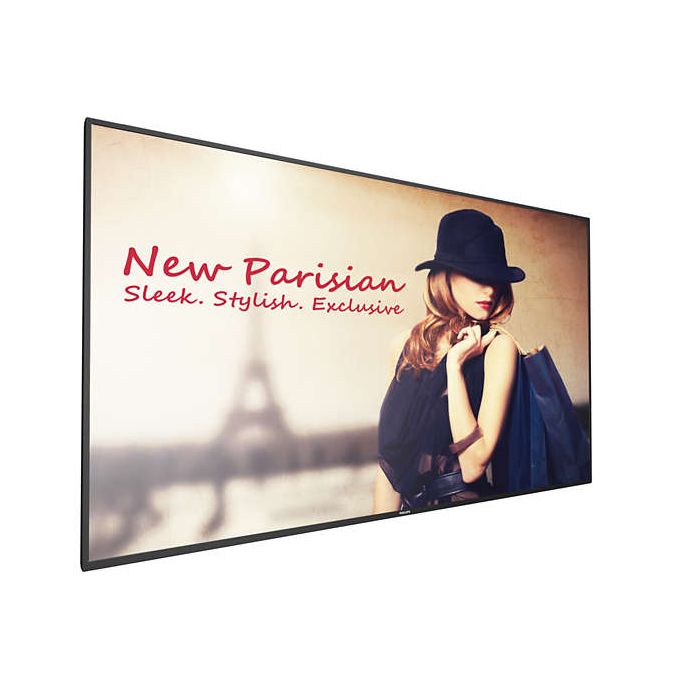

55BDL4050D - 55" Full HD Android Display

Picture/Display

Diagonal screen size (inch)

54.64  inch

Diagonal screen size (metric)

138.8  cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60Hz

Brightness

450  cd/m²

Contrast ratio (typical)

1100:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

12  ms

Pixel pitch

0.63 x 0.63 mm

Display colors

16.7 million

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• Motion compens. deinterlacing
• 3D MA deinterlacing
• Dynamic contrast enhancement
• Progressive scan

Operating system

Android 4.4.4

Connectivity

Video input

• DisplayPort (1.2)
• HDMI (x2)
• DVI-D
• USB
• VGA (via DVI)

Video output

• DisplayPort
• DVI-I
• VGA (via DVI-D)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

• Audio Left/Right (RCA)
• Ext. speaker cntrl (aud. out)

Other connections

• mPCIe
• micro SD
• micro USB
• USB power outlet (5 V. 2 amp)

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats

• 1920 x 1080, 60Hz
• 1440 x 900, 60Hz
• 1366 x 768, 60Hz
• 1360 x 768, 60Hz
• 1280 x 800, 60Hz
• 1280 x 768, 60Hz
• 1024 x 768, 60Hz
• 800 x 600, 56, 60, 72, 75Hz
• 640 x 480, 60, 67, 72, 75Hz

Video formats

• 1080p, 50, 60Hz
• 1080i, 50, 60Hz
• 720p, 50, 60Hz
• 576i, 50Hz
• 576p, 50Hz
• 480p, 60Hz
• 480i, 60Hz

Dimensions

Set Width

1231.9  mm

Set Height

711.2  mm

Set Depth

45.72  mm

Set Width (inch)

48.5  inch

Set Height (inch)

28.0  inch

Set Depth (inch)

1.8  inch

Bezel width

9.5 mm (T/L/R) 15.6mm (B)

Product weight (lb)

39.68  lb

Product weight

18.0  kg

VESA Mount

400 x 400 mm, M6

Convenience

Placement

• Landscape (24/7)
• Portrait (24/7)

Tiled Matrix

Up to 15 x 15

Keyboard control

• Hidden
• Lockable

Signal Loop Through

• DVI
• VGA
• RS232
• IR Loopthrough
• DisplayPort

Network controllable

• RJ45
• RS232
• One Wire (HDMI-CEC)
• HDMI (One Wire)

Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Power

Standby power consumption

<0.4 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (EPA 6.0)

64  W

Consumption (Typical)

76  W

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

Altitude

0 ~ 3000 m

MTBF

50,000  hour(s)

Sound

Built-in speakers

2 x 10W RMS
