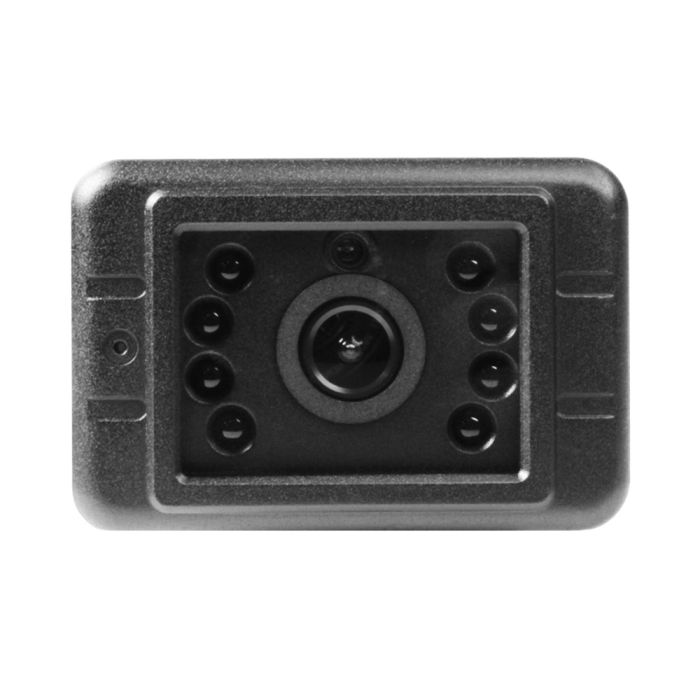

GPCR-675A1GN 5MP H.265/4 POE IP67 IP Vehicle Camera

Camera

• Lens
  • 2.8mm (Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H))
• Image Sensor
  • Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array
• Number of Effective Pixels
  • 5.14 M effective pixels
• Min. Illumination
  • Color Mode: 0.1 Lux
• Scanning Mode
  • Progressive Scan

Network

• Video Compression
  • H.265, H.264, Motion JPEG
• Video Resolution
  • 30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
• Frame rate
  • Primary up to 30fps @ 2592x1944
• Video Streaming
  • Motion JPEG and H.264/265 Triple Streaming (Simultaneously)
  • Additional JPEG streaming (total quadruple streaming)
  • Independently Controllable frame rate and bandwidth
• Time Stamp
  • Supported (Date/Time Only) in primary stream
• Image setting
  • Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest
  • Colour: colour, black & white
• LAN interface
  • 10/100BaseT Ethernet auto-sensing
• Built-in Motion detections
  • Up to 4 zones
  • Motion Sensitivity : 0 ~ 100 : 100 is hypersensitive
• Simultaneous clients
  • Live-cast for up to 16 clients
• Web browsing
  • Video access from a Web browser
• Developer support
  • Provides HTTP CGI API, ActiveX control development kit
• Supported protocols
  • HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc

Operation Environments

• Operating Temperature
  • -20℃~ + 70℃
• IP Rate
  • IP67
• Power
  • PoE
• Power Consumption
  • 2.1W
