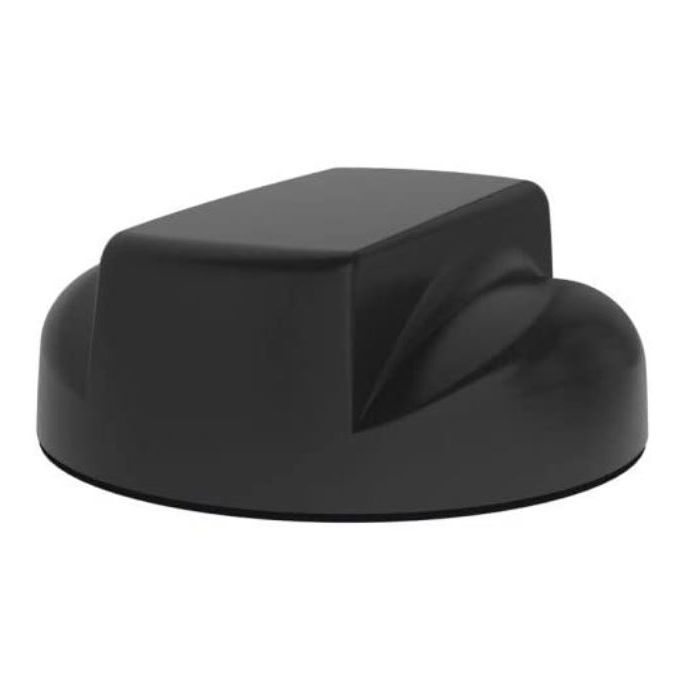

Shop 6-in-1 Dome Antenna, 2xLTE, 3xWifi, 1xGNSS, 4m coax

Sierra Wireless AirLink Antenna 6 in 1 Dome

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 6-in-1 Dome Antenna, 2xLTE, 3xWifi, 1xGNSS, 4m coax

· 2 x LTE, 3 x Wifi, 1 x GNSS

· Active GNNS

· IP66 Rated

· 4m coax, Bolt mounted

Specifications	Frequency Range Elements 1 & 2 698-960 / 1710-2700MHz Elements 3,4 & 5 2.4/4.9-6GHz Operational Bands Elements 1 & 2 2G/3G/4G LTE Elements 3,4 & 5 2.4/5.0GHz Wi-Fi Peak gain: Isotropic Elements 1 & 2 698-960MHz 2.3dBi 1710-2700MHz 5dBi Elements 3,4 & 5 2.4/4.9-6.0GHz 2dBi Isolation Cellular > 15dB Correlation Co-efficient < 0.1 Polarisation Vertical Impedance 50Ω Max Input Power 25W
Description	· 2 x LTE, 3 x Wifi, 1 x GNSS · Active GNNS · IP66 Rated · 4m coax, Bolt mounted
