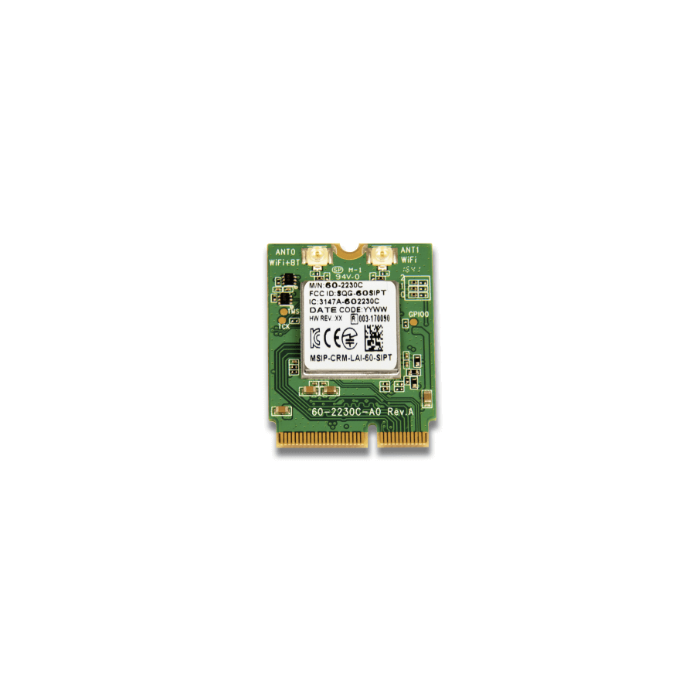

60-2230C Series Bluetooth and WiFi Module
Advanced 802.11ac Wave 2, 2x2 MU-MIMO, Advanced Power Save, Optimized Internal BT/Wi-Fi Coexistence, Fast Roam
In stock
- SKU
- 60-2230C Series Bluetooth and WiFi Module
Have a Question about this product?
Description / 60-2230C Series Bluetooth and WiFi Module
Powered by the powerful Marvell 88W8997 chipset, Laird Connectivity’s 60-2230C Series Wi-Fi + Bluetooth modules achieve the best possible connectivity and performance in any RF environment. With industry-leading software, broad OS support, and M.2 form factor, Laird Connectivity’s 60 Series offers flexibility to meet your needs. The 60 Series introduces 802.11ac, 2x2 MU-MIMO, and Bluetooth 5.1 on one low-power module, delivering future-ready cutting edge technology for your product. Building on the security and robustness inherited from Laird Connectivity’s expertise in its 40, 45, and 50 Series modules means ultra-high data rates, improved performance, and the most reliable wireless in crucial applications such as medical and industrial.
More Information
| Brand | Ezurio (Laird Technologies) |
|---|---|
| Specifications | Antenna Options
2x U. FL
Chipset (Wireless)
Marvell 88W8997
Compliance
Certifications and approvals for FCC (USA), IC (Canada), ETSI (Europe), KCC (Korea), Giteki (Japan), RCM (AUS/NZ)
Connector Type
M.2 Connector (2230 E-Key)
Data Rate
1,2,3 Mbps
Encryption
WEP, TKIP, AES
Frequency
2.4 GHz to 2.495, 5.15 GHz to 5.825 GHz (including DFS)
Frequency Range
2400 - 5825
Operating Humidity
10 to 90% humidity (non-condensing)
Operating Systems Supported
Android / Linux
Operating Temp (°C)
-30 °C - 85 °C
Protocols
Wi-Fi Media Access Protocol
Security
WEP, WPA, WPA2
Spatial Streams
2 (2x2-MIMO)
Wireless Specification
802.11ac Wi-Fi + Bluetooth 5.1
|
| Description |
Powered by the powerful Marvell 88W8997 chipset, Laird Connectivity’s 60-2230C Series Wi-Fi + Bluetooth modules achieve the best possible connectivity and performance in any RF environment. With industry-leading software, broad OS support, and M.2 form factor, Laird Connectivity’s 60 Series offers flexibility to meet your needs. The 60 Series introduces 802.11ac, 2x2 MU-MIMO, and Bluetooth 5.1 on one low-power module, delivering future-ready cutting edge technology for your product. Building on the security and robustness inherited from Laird Connectivity’s expertise in its 40, 45, and 50 Series modules means ultra-high data rates, improved performance, and the most reliable wireless in crucial applications such as medical and industrial. |
