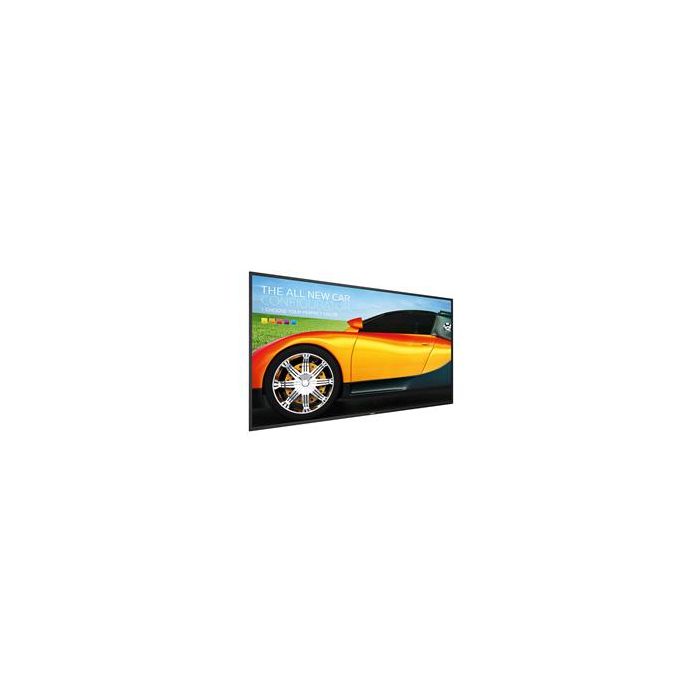

65BDL3000Q - 65" Full HD Display

Diagonal screen size (inch)

65  inch

Diagonal screen size (metric)

163.9  cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350  cd/m²

Contrast ratio (typical)

3000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

8  ms

Aspect ratio

16:9

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.74 x 0.74 mm

Display colors

1.07 Billion

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• Motion compens. deinterlacing
• Progressive scan
• 3D MA deinterlacing
• Dynamic contrast enhancement

Panel technology

VA

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1360 x 768, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz
• 1280 x 1024, 60Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 72, 75Hz

Video formats

• 480p, 60Hz
• 576p, 50Hz
• 720p, 50, 60Hz
• 1080p, 50, 60Hz
• 1080i, 25, 30Hz
• 480i, 30, 60Hz
• 576i, 25, 50Hz

Connectivity

Video input

• DVI-D
• VGA (Analog D-Sub)
• USB
• Component (BNC)
• Composite (BNC)
• DisplayPort (1.2)
• HDMI (x2)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

• Audio Left/Right (RCA)
• External speaker connector

External control

• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack
• RJ45

Video output

• DisplayPort
• DVI-I
• VGA (via DVI-D)

Other connections

• OPS
• USB

Convenience

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Network controllable

• LAN (RJ45)
• RS232
• One Wire (HDMI-CEC)

Signal Loop Through

• DisplayPort
• DVI
• VGA
• RS232

Ease of installation

Smart Insert

Energy saving functions

Smart Power

Placement

Landscape

Remote control signal

Lockable

Tiled Matrix

Up to 10 x 15

Dimensions

Bezel width

13.9 (Top/Left/Right) 14.9 (Bottom) mm

Set Width

1458.7  mm

Set Height

834.7  mm

Set Depth

81.6  mm

Set Width (inch)

57.43  inch

Set Height (inch)

32.86  inch

Set Depth (inch)

3.21  inch

Product weight

24.8  kg

Product weight (lb)

54.7  lb

VESA Mount

400 x 400 mm, M6

Smart Insert mount

100 x 100 mm, 100 x 200 mm

Operating conditions

Altitude

0 ~ 3000 m

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Power

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (On mode)

176 W

Standby power consumption

<0.5W

Power Saving Features

Smart Power

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• User manual on CD-ROM
• Quick start guide

Optional accessories

Table top stand

Multimedia Applications

USB Playback Video

• M2TS
• M4V
• MK3D
• MKV
• MP4
• MPEG
• MPG
• MTS
• TS
• TTS
• VOB
• WMV

USB Playback Picture

• BMP
• GIF
• JPEG
• JPG

USB Playback Audio

• AAC
• AIF
• AIFF
• ASF
• M4A
• LPCM
• M3U
• MP3
• MP4
• WAV
• WMA

Miscellaneous

Warranty

3 year warranty
