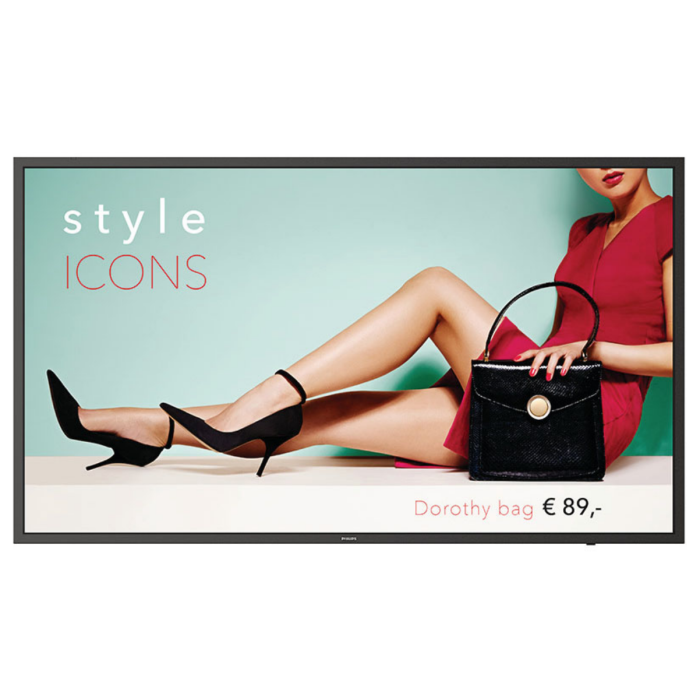

75BDL4003H 75" UHD 24/7 High-Brightness Display

Picture/Display
• Diagonal screen size: 74.5 inch / 189.3 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60Hz
• Brightness: 3000 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.429 x 0.429 mm
• Display colors: 1.07 Billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
Progressive scan, Dynamic contrast enhancement
• Panel technology: IPS
• Contrast ratio (typical): 1200:1

Connectivity
• Video input: DisplayPort (1.2), DVI-I (digital +
analogue) 1x, HDMI 2.0 (x3)
• Audio input: 3.5 mm jack
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack
• Other connections: OPS, USB 2.0 (x2)

Supported Display Resolution
• Computer formats
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
3840 x 2160 30Hz
3840 x 2160 60Hz
• Video formats
480i 30, 60Hz
480p 60Hz
576p 50Hz
576i 25, 50Hz
1080i 25, 30Hz
1080p 50, 60Hz
3840 x 2160 30Hz
3840 x 2160 60Hz

Dimensions
• Set dimensions (W x H x D):
1688.2 x 966.6 x 111.1 mm
• Set dimensions in inch (W x H x D):
66.46 x 38.06 x 4.37 inch
• Bezel width: 18.8 (even bezel)
• Wall Mount: 600 x 400 mm, M8
• Smart insert width: 180 mm
• Smart insert height: 300 mm
• Product weight: 54.1 kg
• Product weight (lb): 119.27 lb

Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Screen saving functions: Pixel Shift, Low Brightness
• Signal loop through: DisplayPort, RS232, HDMI, IR
Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, LAN (RJ45)
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable

Power
• Consumption (Typical): 510 W
• Consumption (Max): 790
• Standby power consumption: <0.5W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80 %
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)

Sound
• Built-in speakers: 2 x 10W RMS

Accessories
• Included Accessories: Edge Alignment Kit, Philips
logo (x1), RS232 daisy-chain cable, Wire Clamper
(x3), AC switch cover & Screw x1, USB cover and
screws, AC Power Cord, HDMI cable, IR sensor
cable (1.8 m) (x1), Open frame kit, Quick start guide
(x1), Remote control & AAA batteries, RS232 cable

Multimedia Applications
• USB Playback Video: AVI, MP4, MPEG, MPG, TTS,
VOB
• USB Playback Picture: BMP, JPEG, PNG

Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Turkish, Traditional Chinese
• Regulatory approvals: CE, CB, EAC, UL
• Warranty: 3 year warranty

Internal Player
• CPU: 2 x A53 + 2 x A73
• GPU: ARM Mali G51
• Memory: 3GB DDR
• Storage: 32 GB eMMc
