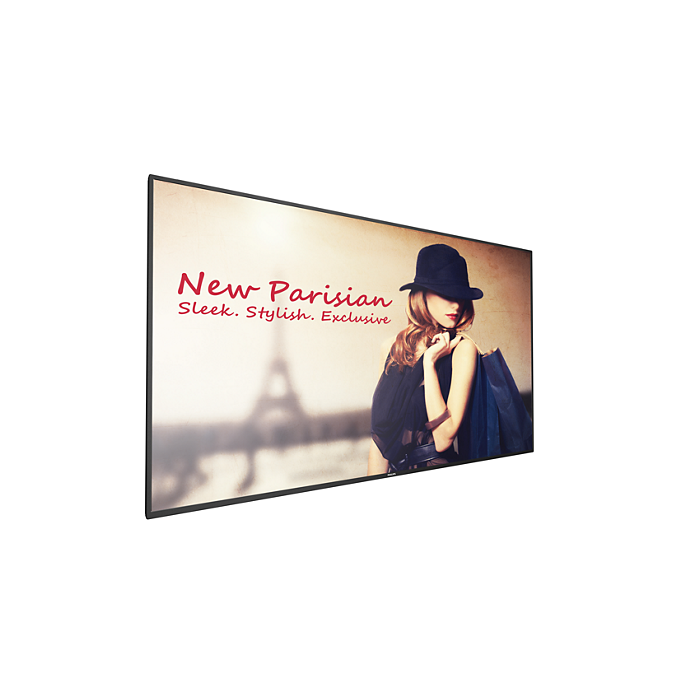

86BDL4152T - 86" UHD Touch Display

Philips

D-Line Display 86" Powered by Android, 500cd/m2, Multi-Touch Display

In stock

SKU
86BDL4152T
Size
86"

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 86BDL4152T - 86" UHD Touch Display

86" Powered by Android, 500cd/m2, Multi-Touch Display



  •     86"
  •     Powered by Android
  •     500cd/m2

More Information

brand Philips
Specifications
  • Diagonal screen size (inch)
    86  inch
    Diagonal screen size (metric)
    218.44  cm
    Panel resolution
    3840 x 2160
    Optimum resolution
    3840x 2160 @ 60Hz
    Brightness
    500  cd/m²
    Contrast ratio (typical)
    1200
    Dynamic contrast ratio
    500,000:1
    Aspect ratio
    16:9
    Response time (typical)
    12  ms
    Pixel pitch
    0.744 x 0.744 mm
    Display colors
    1.07 billion
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Progressive scan

  • Connectivity

    Video input
    • DisplayPort (1.2)
    • HDMI (x2)
    • DVI-D
    • USB
    • VGA (via DVI)
    Video output
    • DisplayPort
    • DVI-I
    • VGA (via DVI-D)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Audio output
    • Audio Left/Right (RCA)
    • Ext. speaker cntrl (aud. out)
    Other connections
    • mPCIe
    • micro SD
    • micro USB
    • USB power outlet (5 V. 2 amp)
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack

  • Supported Display Resolution

    Computer formats
    • 1920 x 1080, 60Hz
    • 1440 x 900, 60Hz
    • 1366 x 768, 60Hz
    • 1360 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 768, 60Hz
    • 1024 x 768, 60Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 640 x 480, 60, 67, 72, 75Hz
    Video formats
    • 1080p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 720p, 50, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 480p, 60Hz
    • 480i, 60Hz

  • Dimensions

    Set Width
    1967  mm
    Set Height
    1128  mm
    Set Depth
    104.9  mm
    Set Width (inch)
    77.4  inch
    Set Height (inch)
    44.4  inch
    Set Depth (inch)
    4.13  inch
    Bezel width
    9.5 (T/L/R) 15.6 (B)
    Product weight (lb)
    212.1  lb
    Product weight
    96.21  kg
    VESA Mount
    400 x 400, M6
    Smart Insert mount
    100 x 100 mm, 100 x 200 mm

  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Hidden
    • Lockable
    Signal Loop Through
    • DVI
    • VGA
    • RS232
    • IR Loopthrough
    • DisplayPort
    Network controllable
    • RJ45
    • RS232
    • One Wire (HDMI-CEC)
    • HDMI (One Wire)
    Energy saving functions
    Smart Power
    Screen saving functions
    Pixel Shift, Low Bright
    Ease of installation
    Smart Insert
    Picture in picture
    PIP

  • Power

    Standby power consumption
    <0.4 W
    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (EPA 6.0)
    99  W
    Consumption (Typical)
    103  W

  • Operating conditions

    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Relative humidity
    20 ~ 80  %
    Altitude
    0 ~ 3000 m
    MTBF
    50,000  hour(s)

  • Sound

    Built-in speakers
    2 x 10W RMS

  • Accessories

    Included accessories
    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • RS232 cable
    • AC Power Cord
    Stand
    BMO5922 (Optional)
    Optional accessories
    ColourCalibrationKit (CCK4602)

  • Multimedia Applications

    USB Playback Audio
    • AAC
    • AIF
    • AIFF
    • M4A
    • MP3
    • WAV
    • WMA
    • ASF
    • LPCM
    • M3U
    • MP4
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    • PDF
    USB Playback Video
    • M2TS
    • M4V
    • MK3D
    • MKV
    • MP4
    • MPEG
    • MPG
    • MTS
    • TS
    • TTS
    • VOB
    • WMV

  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Spanish
    • Polish
    • Turkish
    • Russian
    • Italian
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Regulatory approvals
    • EnergyStar 7.0
    • CE
    • FCC, Class B
    • UL/cUL
    • CCC
    • C-Tick
    • RoHS
    • GOST
    • BSMI
    • CB
    • J-Moss
    • PSE
    • VCCI
    Warranty
    3 year warranty
Description

86" Powered by Android, 500cd/m2, Multi-Touch Display



  •     86"
  •     Powered by Android
  •     500cd/m2
