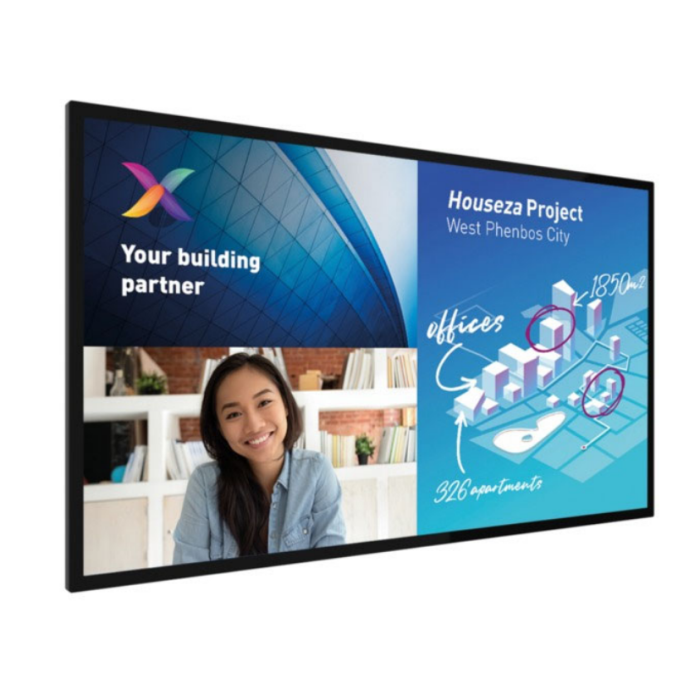

86BDL6051C 86" UHD 18/7 Capacitive Touch Android Display

Philips

86BDL6051C 86" UHD 18/7 Multi-Touch Android Wireless OPS

Key Features:

  • Interactive and collaborative
    • Wireless screen sharing & advanced collaboration
    • HID Capacitive Touch with USB Plug & Play
    • Operate, monitor and maintain with CMND & Control
  • Smart and powerful
    • Anti-glare toughened glass
    • Android SoC processor. Native and web apps
    • Install and use your preferred apps and features
    • Whiteboard mode built-in
    • Fast and easy video conferencing
    • OPS slot allows for PC embedding without cabling
    • Crestron Connected certified

In stock

SKU
86BDL6051C
Size
86"

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / 86BDL6051C 86" UHD 18/7 Capacitive Touch Android Display

The 86BDL6051C is a 86 inch UHD 18/7 display powered by Android for use with web apps and content delivery. Wireless screen sharing allows up to four feeds to be displayed from any device on the same Wi-Fi network. Included with whiteboard mode for multiple users to interact with the display and an OPS slot for additional computing power if required. 'Creston Connected' certified for full system control alongside Philips CMND & Control for network management.

Key Features:

  • Interactive and collaborative
    • Wireless screen sharing & advanced collaboration
    • HID Capacitive Touch with USB Plug & Play
    • Operate, monitor and maintain with CMND & Control
  • Smart and powerful
    • Anti-glare toughened glass
    • Android SoC processor. Native and web apps
    • Install and use your preferred apps and features
    • Whiteboard mode built-in
    • Fast and easy video conferencing
    • OPS slot allows for PC embedding without cabling
    • Crestron Connected certified

More Information

brand Philips
Specifications

Picture/Display
• Diagonal screen size: 85.6 inch / 217.42 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840x 2160 @ 60Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 1000:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.4935 (H) x 0.4935 (V) mm
• Display colors: 1.07 billion
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
Motion compens. deinterlacing, 3D MA
deinterlacing, Dynamic contrast enhancement,
Progressive scan
• Operating system: Android 9


Connectivity
• Video input: Display Port1.2 (x1), HDMI 2.0 (x4),
DVI-I (x 1), USB 2.0 (x2), USB 3.0 (x2), USB-C
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm Jack (x2)
• Other connections: OPS, micro SD
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack


Supported Display Resolution
• Computer formats
1920 x 1200 60Hz
1920 x 1080 60Hz
1680 x 1050 60Hz
1600 x 1200 60Hz
1600 x 900 60Hz
1440 x 1050 60Hz
1440 x 900 60, 75Hz
1400 x 1050 60, 75Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280x1024 60,67,75Hz
1280 x 960 60Hz
1280 x 800 60,75Hz
1280 x 768 60Hz, 75Hz
1280 x 720 60,70Hz
1152 x 900 66Hz
1152 x 864 60, 70, 75Hz
1024x768 60,70Hz
960x720 75Hz
848 x 480 60Hz
832 x 624 75Hz
800 x 600 56, 60, 72, 75Hz
720 x 400 70Hz
640 x 350 70Hz
640 x 480 60, 67, 72, 75Hz
• Video formats
1080p 50, 60Hz
576p 50Hz
480p 60Hz
1080i 50, 60Hz
4K x 2K 50,60Hz
720p 50, 60Hz
• UHD Formats: 3840 x 2160, 24, 25, 30, 60 Hz,
3840 x 2160, 50 Hz


Dimensions
• Set dimensions (W x H x D):
1949.00 x 1120.00 x 77.50(@wall mount),
93.00(@max) mm
• Set dimensions in inch (W x H x D):
76.73 x 44.09 x 3.05(@wall mount),
3.66(@max) inch
• Bezel width: 1.50 mm(even)
• Product weight (lb): 172.18 lb
• Product weight: 78.1 kg
• Wall Mount: 600(H)x400(V) mm, M8
• Smart Insert mount: 6*M4*L6, 100mm pitch, Max.
Size 180mm x 300mm


Convenience
• Placement: Landscape (18/7)
• Keyboard control: Hidden, Lockable
• Signal loop through: RS232, IR Loopthrough,
DisplayPort
• Network controllable: RJ45, RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low Bright
• Ease of installation: Smart Insert
• DPMS power saving system


Power
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 300 W
• Consumption (Max): 500 W
• Energy Label Class: G


Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80%(operating),5
~95%(storage) %
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)


Sound
• Built-in speakers: 2 x 20W RMS


Accessories
• Included Accessories: Philips logo (x1), RS232
Daisy chain cable (x1), AAA batteries (x1),
Cleaning cloth (x1), DVI - I Cable (1.8m) (x1),
HDMI Cable (3m) (x1), IR sensor cable (1.8 m)
(x1), M2 Screw (x2), M3 screw (x2), Power cable
(x3), Quick start guide (x1), Remote control (x1),
RS232 cable (3 m) (x1), Touch Pen (x2), USB A to
B cable (3m) (x1), USB Cover (x1)


Multimedia Applications
• USB Playback Audio: AAC, M4A, MP3, WMA
• USB Playback Picture: BMP, JPEG, JPG, PNG
• USB Playback Video: ASF, AVI, FLV, MKV, MP4,
MPEG, MPG, TS, VOB, WEBM, WMV, DAT


Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: CE, RoHS, CB, CU, EAC,
EMF, ETL, FCC, Class A, PSB, VCCI
• Warranty: 3 year warranty


Internal Player
• CPU: MTK5680
• Storage: 32 GB eMMc
• Micro SD Card: Support to 1TB
• RAM: DDR4 4GB
• Wifi: AP(WC0SR2511-88112BU),
STA(WCT5GM2511MT7668AU)


Multi-touch Interactivity
• Touch points: 10 simultaneous touch points
Description

The 86BDL6051C is a 86 inch UHD 18/7 display powered by Android for use with web apps and content delivery. Wireless screen sharing allows up to four feeds to be displayed from any device on the same Wi-Fi network. Included with whiteboard mode for multiple users to interact with the display and an OPS slot for additional computing power if required. 'Creston Connected' certified for full system control alongside Philips CMND & Control for network management.

Key Features:

  • Interactive and collaborative
    • Wireless screen sharing & advanced collaboration
    • HID Capacitive Touch with USB Plug & Play
    • Operate, monitor and maintain with CMND & Control
  • Smart and powerful
    • Anti-glare toughened glass
    • Android SoC processor. Native and web apps
    • Install and use your preferred apps and features
    • Whiteboard mode built-in
    • Fast and easy video conferencing
    • OPS slot allows for PC embedding without cabling
    • Crestron Connected certified
