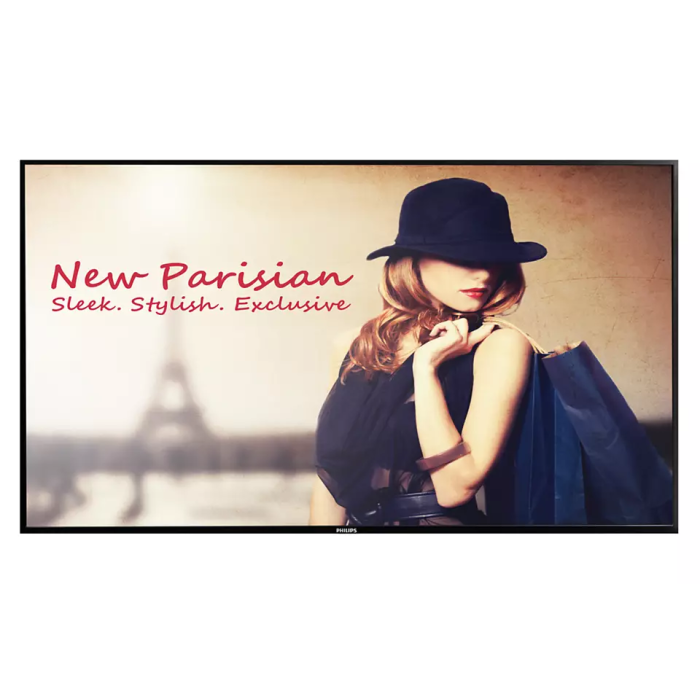

98BDL4150D 98" UHD Android Display

Diagonal screen size (inch)

97.5  inch

Diagonal screen size (metric)

247.7  cm

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @60HZ

Brightness

500  cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

12  ms

Pixel pitch

0.5622 x 0.5622 mm

Display colors

1.07 Billion

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• Motion compens. deinterlacing
• 3D MA deinterlacing
• Dynamic contrast enhancement
• Progressive scan

Operating system

Android 7.1.2

Connectivity

Video input

• DVI-D
• DisplayPort
• HDMI (x3)
• VGA (Analog D-Sub)

Video output

DisplayPort

Audio input

3.5 mm jack

Audio output

3.5mm jack

Other connections

• mPCIe
• micro SD
• micro USB
• USB power outlet (5 V. 2 amp)
• OPS
• USB, type A

External control

• RJ45
• RS232C (in/out) 2.5 mm jack

Supported Display Resolution

Computer formats

• 3840 x 2160, 60Hz
• 1920 x 1080, 60Hz
• 1600 x 1200, 60Hz
• 1360 x 768, 60Hz
• 1280 x 1024, 60Hz
• 1280 x 800, 60Hz
• 1280 x 768, 60Hz
• 1024 x 768, 60, 75Hz
• 640 x 480, 60, 72, 75Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 75Hz

Video formats

• 2160p, 30,50, 60Hz
• 1080p, 50, 60Hz
• 1080i, 25, 30Hz
• 720p, 50, 60Hz
• 576p, 25, 50Hz
• 576i, 25, 50Hz
• 480i, 30, 60Hz
• 480p, 30, 60Hz

Dimensions

Set Width

2193.2  mm

Set Height

1248.2  mm

Set Depth

83.8  mm

Set Width (inch)

86.35  inch

Set Height (inch)

49.14  inch

Set Depth (inch)

3.30  inch

Bezel width

16.0 (T/L/R/B)

Product weight (lb)

201.50  lb

Product weight

91.4  kg

VESA Mount

800(H)X500(V) mm, M8

Smart Insert mount

100 x 200 mm

Convenience

Placement

• Landscape
• Portrait

Tiled Matrix

Up to 15 x 15

Keyboard control

• Hidden
• Lockable

Signal Loop Through

IR Loopthrough

Network controllable

• RJ45
• RS232

Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation

Smart Insert

Picture in picture

PIP

Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

520W+/-10%  W

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 %~ 80%(operation),10%-90%(storage)  %

Altitude

0 ~ 3000 m

MTBF

50,000  hour(s)

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• Remote Control
• Batteries for remote control
• Quick start guide
• RS232 cable
• AC Power Cord
• HDMI cable
• IR sensor cable (1.8M)

Included Accessories

• RS232 daisy-chain cable
• SD card cover

Multimedia Applications

USB Playback Audio

• AAC
• M4A
• MP3
• WMA

USB Playback Picture

• BMP
• JPEG
• JPG
• PNG

USB Playback Video

• MKV
• MP4
• MPEG
• MPG
• TS
• VOB
• WMV
• ASF
• AVI
• DAT
• FLV
• WEBM

Miscellaneous

On-Screen Display Languages

• English
• French
• German
• Spanish
• Polish
• Turkish
• Russian
• Italian
• Simplified Chinese
• Traditional Chinese
• Arabic
• Japanese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• CE
• FCC, Class B
• UL/cUL
• C-Tick
• RoHS
• GOST
• BSMI
• CB

Warranty

3 year warranty
