Semi-industrial computer with Intel 13th Gen., Supports vPro Technology
Key Features:
Intel Raptor Lake-U Core processors
1 x DP (7680 x 4320 @60 Hz)
2 x HDMI (4096 x 2304 @60 Hz)
Support Intel® vPro® technology
Fanless design
Wide temperature and voltage
VESA mountable
In stock
SKU
AF613-13x5U40N0G-GIA
Have a Question about this product?
Description /

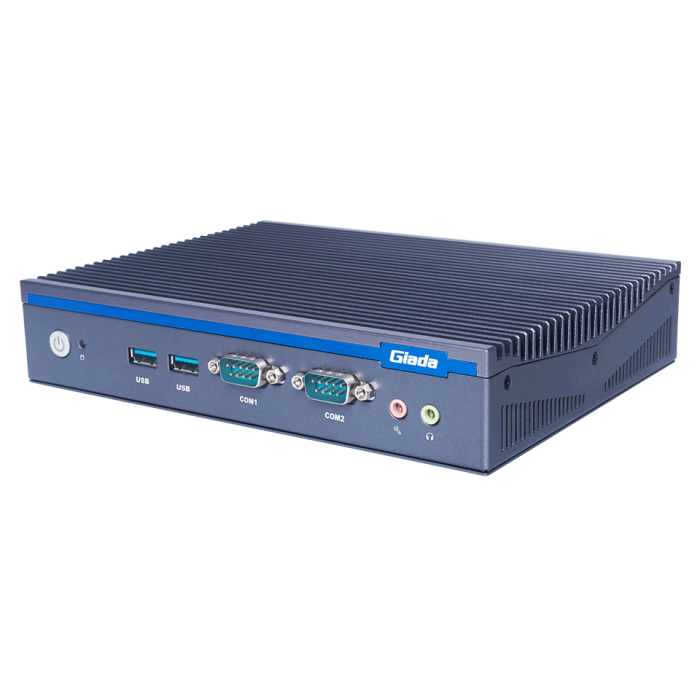

AE613 Wide Temp Fanless Media Player
Intel® 13th Gen. Raptor Lake Processors High Computing Performance
Giada AE613, powered by Intel® Raptor Lake™ Core i3-1315U/i5-1335U processors, introduces a new era of performance and efficiency. The semi-industrial computer features a TDP of 15W, which provides superior processing power while minimizing energy consumption.
Semi-industrial PC
Giada AE613 is a semi-industrial PC supporting wide temperature (-20℃ ~60℃) and voltage (12 V~24 V) range. With 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 and two COM ports, this device is ready for anything.
3 Display Outputs Supporting 8K
Giada AE613 has 3 display outputs, with a DP and two HDMI ports. Powered by Intel® UHD Graphics (Core i3)/Intel® Iris® Xe Graphics (Core i5), Giada AE613 can support 8K resolution (7680 x 4320 @60 Hz), delivering stunning visuals and an immersive multimedia experience.
Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof. It enables this Giada® device applicable in mission-critical applications.
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042) for 3G/4G,
1 x SIM Slot
I/O interface
USB
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
Serial Port
1 x RS232, 1 x RS232/422/485
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT 2 x Connector for 3G/4G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
NA
Power Requirement
DC-IN, 12 ~ 24V, 65W
Dimensions
200 mm x 150 mm x 40 mm (7.87” x 5.90” x 1.57”)
Construction
Metal, Grey
Operating System
Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
Humidity
10% ~ 90% @45°C (non-condensing)
Storage Temperature
-40°~80°C (-40°F~176°F) not include the package
Certifications
CE, FCC Class B, UKCA
Description
Intel® 13th Gen. Raptor Lake Processors High Computing Performance
Giada AE613, powered by Intel® Raptor Lake™ Core i3-1315U/i5-1335U processors, introduces a new era of performance and efficiency. The semi-industrial computer features a TDP of 15W, which provides superior processing power while minimizing energy consumption.
Semi-industrial PC
Giada AE613 is a semi-industrial PC supporting wide temperature (-20℃ ~60℃) and voltage (12 V~24 V) range. With 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 and two COM ports, this device is ready for anything.
3 Display Outputs Supporting 8K
Giada AE613 has 3 display outputs, with a DP and two HDMI ports. Powered by Intel® UHD Graphics (Core i3)/Intel® Iris® Xe Graphics (Core i5), Giada AE613 can support 8K resolution (7680 x 4320 @60 Hz), delivering stunning visuals and an immersive multimedia experience.
Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof. It enables this Giada® device applicable in mission-critical applications.
