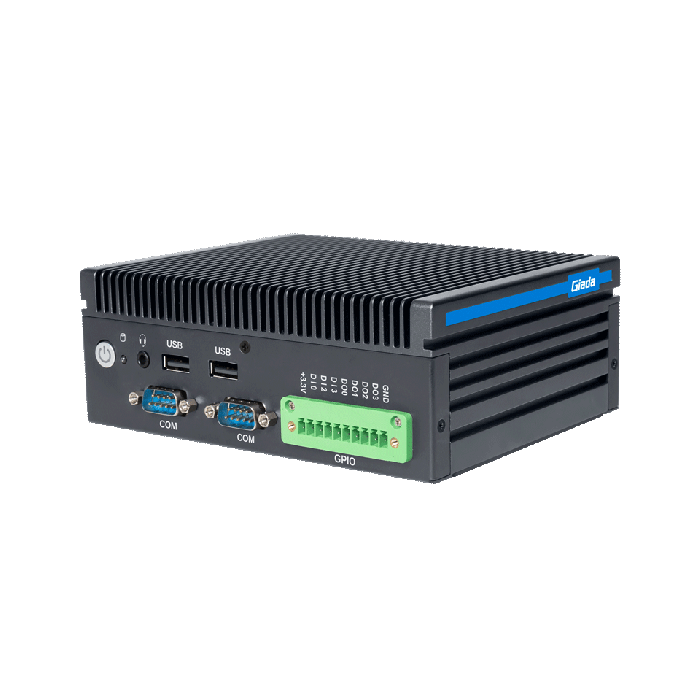

AF208 Fanless Semi-industrial N97 CPU

Giada Technology Inc.

Fanless semi-industrial computer, Intel Alder Lake-N Inside, Supports 4K Display

Key Features:

  • Intel® Alder Lake-N N-series/Core processors
  • 1 x DP (4096 x 2160 @60 Hz)
  • 1 x HDMI (4096 x 2160@60 Hz)
  • Support Wi-Fi/BT module
  • Fanless design
  • -20°C ~60°C (-4°F~140°F) Operating temp.
  • Lockable DC-IN, 12~24 V, 45 W

In stock

SKU
AF208-N9753N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AF208 Fanless Semi-industrial N97 CPU

Powered by Intel Alder Lake-N Processors

The Giada AF208 outdoor digital signage player is powered by Intel® Alder Lake-N processors and supports up to 16GB DDR5-4800MHz memory. This power-efficient processing unit ensures optimal performance while keeping energy consumption low, a critical factor for outdoor digital signage that operates around the clock.

Wide-range Temperature & Voltage

The Giada AF208 outdoor signage player can operate within a wide temperature range of -20℃ to 60℃, making it suitable for use in various rugged environments. Its wide voltage (12 V24 V) range also makes it ideal for a variety of outdoor applications, including bus stop displays, drive-through menus, digital billboards, and wayfinding systems.

4K Media Playback with Dual Display Outputs

The signage player delivers smooth 4K media playback with dual display outputs. Equipped with Intel® UHD Graphics, it provides stunning, high-quality visuals through HDMI 2.0 and DP1.2 outputs, ensuring sharp, vibrant content that engages audiences in any outdoor environment.

Fanless Design

The Giada AF208 boasts a fanless design, making it a perfect fit for outdoor environments where space is often limited and airflow may be constrained. This design ensures that the player runs quietly and efficiently, with minimal maintenance required, while avoiding dust and debris build-up that can occur in traditional fan-based systems.

More Information

brand Giada Technology Inc.
Specifications

Processor

CPU
Intel® Processor N97
Intel® Atom X7211E Processor

Turbo Frequency

3.60 GHz/3.20 GHz

Chipset

SoC

Processing Units

4 Cores/2 Cores

TDP

12 W/6 W

Memory

Size

8 GB/16 GB

Type

LPDDR5-4800 MHz, Single-channel

Storage

Socket 1

1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD

Display

GPU

Intel® UHD Graphics

Graphic Engine

DirectX 12.1, OpenGL 4.6, OpenCL 3.0

Display Interface

1 x DP1.2 (Max.4096 x 2160 @60Hz)

1 x HDMI2.0 (Max.4096 x 2160 @60Hz)

Network

Network Controller

1 x Intel l i226-V Gigabit Ethernet, 1 x Intel i210-AT Gigabit Ethernet

Ethernet Interface

1 x 2.5 GbE RJ45, 1 x 1 GbE RJ45

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6/6E

I/O interface

USB

2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Serial Port

2 x RS232, 2 x RS485

Audio

1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Button

1 x Power on, 1 x CLR-CMOS

GPIO

10pin GPIO (4 x GPI, 4 x GPO)

Antenna

2 x Connector for Wi-Fi/BT

System

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

Lockable DC-IN, 12~24 V, 45 W

Dimensions

160 mm x 130 mm x 60 mm (6.30” x 5.12” x 2.36”)

Construction

Metal, Grey

Operating System

Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow

Humidity

95% @ 45°C (non-condensing)

Certifications

CE, FCC Class B, UKCA
Description

Powered by Intel Alder Lake-N Processors

The Giada AF208 outdoor digital signage player is powered by Intel® Alder Lake-N processors and supports up to 16GB DDR5-4800MHz memory. This power-efficient processing unit ensures optimal performance while keeping energy consumption low, a critical factor for outdoor digital signage that operates around the clock.

Wide-range Temperature & Voltage

The Giada AF208 outdoor signage player can operate within a wide temperature range of -20℃ to 60℃, making it suitable for use in various rugged environments. Its wide voltage (12 V24 V) range also makes it ideal for a variety of outdoor applications, including bus stop displays, drive-through menus, digital billboards, and wayfinding systems.

4K Media Playback with Dual Display Outputs

The signage player delivers smooth 4K media playback with dual display outputs. Equipped with Intel® UHD Graphics, it provides stunning, high-quality visuals through HDMI 2.0 and DP1.2 outputs, ensuring sharp, vibrant content that engages audiences in any outdoor environment.

Fanless Design

The Giada AF208 boasts a fanless design, making it a perfect fit for outdoor environments where space is often limited and airflow may be constrained. This design ensures that the player runs quietly and efficiently, with minimal maintenance required, while avoiding dust and debris build-up that can occur in traditional fan-based systems.
