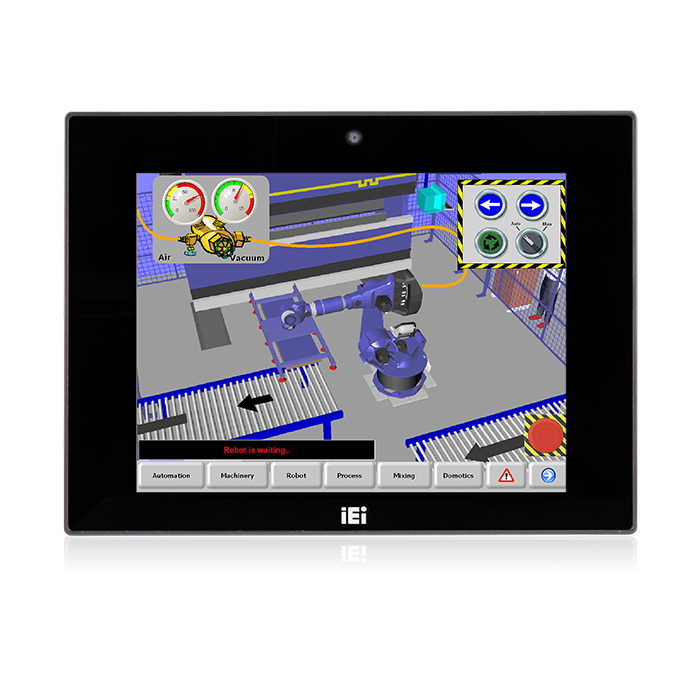

AFL3-08A-BT 8.4" J1900 Panel PC

IEI Integration Corp.

8.4” 450cd/m² SVGA fanless panel PC with Intel Celeron J1900 quad core 2 GHz

Key Features:

  • 8.4” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

In stock

SKU
AFL3-08A-BT

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-08A-BT 8.4" J1900 Panel PC

8.4” 450cd/m² SVGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

  • 8.4” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)



More Information

Brand IEI Integration Corp.
Specifications

Hardware Spec.

System
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max. One 204-pin 2 GB 1333MHz single-channel, 2GB
DDR3L SDRAM pre-installed (system max. 8GB)
Storage mSATA
I/O Interface
Ethernet 2 x PCIe GbE by RTL8111E controller
Audio ALC892
Power
Power consumption 12V@2A(Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement 9 V ~ 30 V
Environment
Operating Temperature -10°C~50°C
Safety & EMC CE/FCC
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
Dimensions
Dimensions 233 x 175 x 50
Weight
Weight 0.8/2.44
LCD
Size 8.4”
Resolution 800 x 600 (4:3)
Brightness (cd/m2) 450
Contrast Ratio 600:1
LCD Color 16.2M
Pixel Pitch (mm) 0.213 (H) x 0.213 (V)
Viewing Angle (H-V) 160º / 140º
Touch
Touch Screen 5-wire resistive with RS-232 interface (anti-glare coating)
Touch Controller EETI EXC3160
I/O Interface
I/O Interface 1 x RS-232 ((RJ45 connector))
  1 x RS-422/485 ((DB-9 connector))
  2 x USB 2.0
  2 x USB 3.2 Gen1x1
  1 x LAN (Gbe)
  1 x DC Input Jack (9-30V Lockable)
  1 x Reset Button
  1 x Power Switch
  1 x AT/ATX switch
  1 x Audio ((line-out))

Ordering Information

AFL3-08A-BT-J1/R/2G-R14 8.4”500 cd/m² SVGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R14

Package Contents

Package Content

  • 2 x Setting kit

  • 6 x Round head machine screw

  • 4 x Pan head machine screw

  • 2 x Fix holder

  • 2 x Power cord

  • 1 x Power adapter

  • 1 x Touch pen
Description

8.4” 450cd/m² SVGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

  • 8.4” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)


pdf
Datasheet
