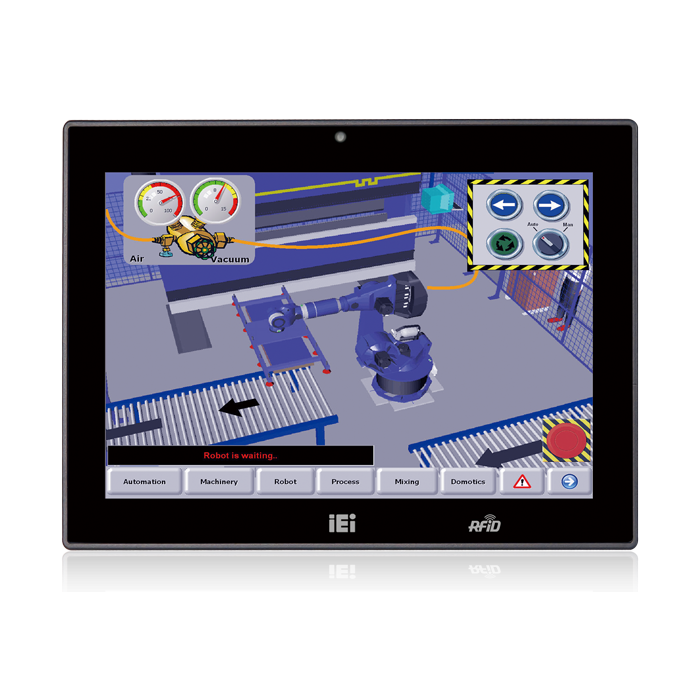

AFL3-12A-BT 12.1" Celeron Panel PC

IEI Integration Corp.

12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

  • W10”~12” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

In stock

SKU
AFL3-12A-BT-J1/xx/xG-R16

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-12A-BT 12.1" Celeron Panel PC

12.1” 500 cd/m² XGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

  • W10”~12” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

More Information

Brand IEI Integration Corp.
Specifications

Hardware Spec.

Communication
Wi-Fi IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions 303 x 243 x 44
Environment
Operating Temperature -20°C~50°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
RAM One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB)
LCD
Backlight MTBF 50000 (LED backlight panel)
Brightness (cd/m2) 500
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Resolution 1024 x 768
Size 12.1"
Viewing Angle (H-V) 160º/160º
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
Power
Power Requirement 9~30 VDC
Storage
Storage mSATA
2.5” SATA 3Gb/s HDD bay
System
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Touch
Touch Controller PenMount DMC9000/ EETI EXC7200
Touch Screen 5-wire resistive touch window/ projected capacitive type
Weight
Weight 1.92Kg/3.95Kg
I/O Interface
I/O Interface 1 x AT/ATX switch
  1 x Audio((line-out))
  1 x DC Input Jack(9-30V lockable power jack)
  2 x LAN(RJ-45 for GbE LAN)
  1 x Power Switch
  1 x RS-232(COM port (RJ-45 connector))
  1 x RS-422/485(COM port (DB-9 connector)(RI/5V/12V))
  1 x Reset Button
  2 x USB 2.0
  2 x USB 3.0

Ordering Information

AFL3-12A-BT-J1/R/4G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 4GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/R/2G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/PC/4G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/PC/2G-R15 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R15

Package Contents

Package Content

  • 10 x Screw Pack M2

  • 1 x Power Adpater

  • 1 x Touch Pen

  • 1 x RJ45 to RS-232 Transfer Cable
Description

12.1” 500 cd/m² XGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

  • W10”~12” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64-compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
