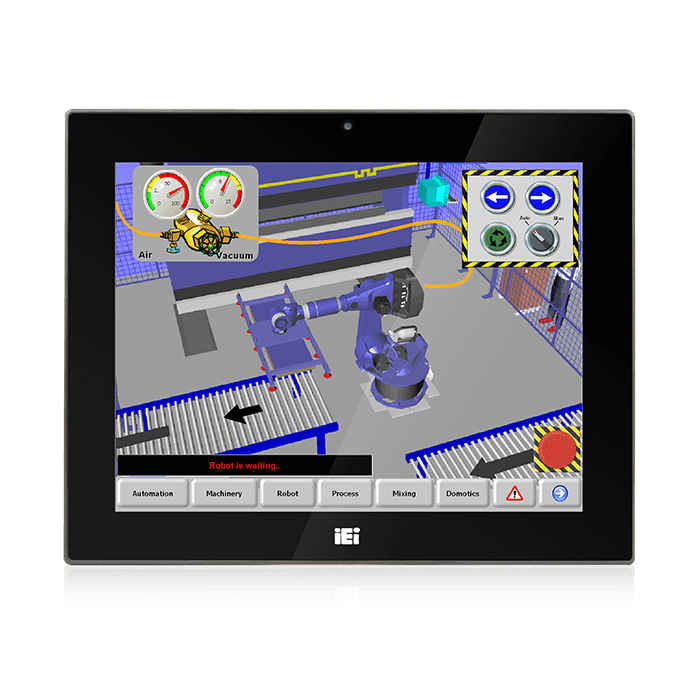

Shop AFL3-12C-ULT3 12" Celeron Panel PC

IEI Integration Corp.

Intel® Core™ i5 and Celeron® ULT Processor

In stock

SKU: AFL3-12C-ULT3

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-12C-ULT3 12" Celeron Panel PC

12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10

12.1” light industrial interactive panel PC
Intel 6th Generation Skylake
Wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
One HDMI output
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth V4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC892
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	One 260-pin 2133MHz single-channel, 4GB DDR4L SO-DIMM pre-installed (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1024 x 768 (4:3)
Size	12.1""
Viewing Angle (H-V)	160º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power consumption	12V@6A
System
CPU	6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage	2.5” SATA 3Gb/s HDD bay M.2 M key PCIe (2230) mSATA slot (PCIe/mSATA/USB)
Touch
Touch Controller	EETI EXC3180
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	3/5.03
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x HDMI
	2 x LAN(GbE)
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	1 x RS-232(DB-9 (RI/5V/12V))
	1 x RS-422/485(DB-9 (RI/5V/12V))
	2 x USB 2.0
	2 x USB 3.0

Description

12.1” light industrial interactive panel PC
Intel 6th Generation Skylake
Wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
One HDMI output
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
