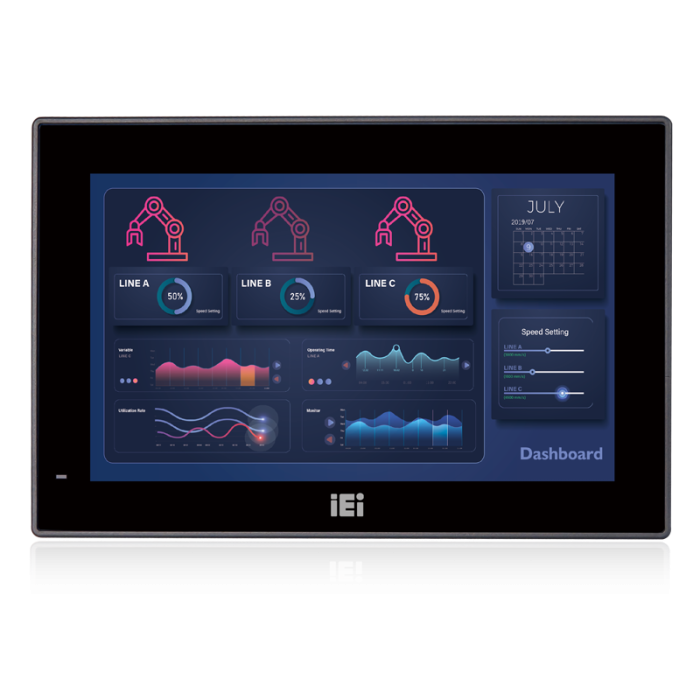

Shop AFL3-W15A-AL 15" Celeron POE Panel PC

IEI Integration Corp.

Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)

In stock

SKU: AFL3-W15A-AL

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-W15A-AL 15" Celeron POE Panel PC

Wide 15.6” 300 cd/m² 1366x768 Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, R10

Key Features:

W15.6” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
Support PoE PD IEEE803.2 af/at/bt
IP64-compliant front panel
Touch screen with anti-UV / anti-glare coating

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth V4.1
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 2W + 2W (internal speaker)
Audio Codec	ALC269
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	one 204-pin 1866MHz DDR3L DIMMs support up to 8GB
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	300
Contrast Ratio	500:1
LCD Color	16.7M
Pixel Pitch (mm)	0.252 (H) x 0.252 (V)
Resolution	1366 x 768 (16:9)
Size	15,6”
Viewing Angle (H-V)	170° / 160°
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power Requirement	9~30V , 6.67A~5A
System
Cooling method / System Fan	Fanless
CPU	Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
Storage	1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal)
Touch
Touch Controller	EETI EXC3160
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	3.3kg/5.6kg
I/O Interface
I/O Interface	1 x AT/ATX Switch
	1 x Clear CMOS
	1 x HDMI(output)
	2 x LAN(GbE)
	1 x Line out
	1 x Power In(9 V ~ 30 V lockable DC jack)
	1 x Power Switch
	1 x Reset Button
	1 x RS-232(RS-232 by DP9 (RI/5V , 1A))
	1 x RS-422/485(RS-232/422/485 by RJ45)
	2 x USB 2.0
	2 x USB 3.0
