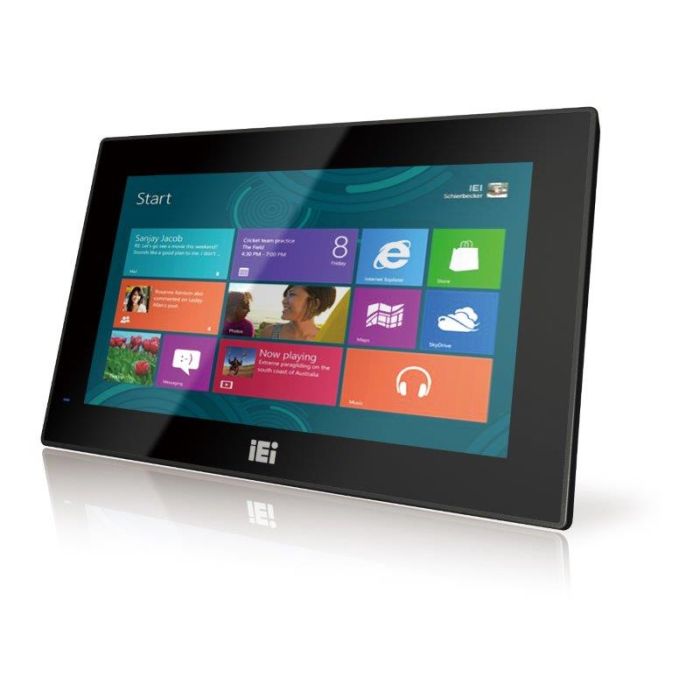

Shop AFL3-W15C-ULT3 15" Wide Panel PC

IEI Integration Corp.

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

In stock

SKU: AFL3-W15C-ULT3

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-W15C-ULT3 15" Wide Panel PC

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

● W15” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC power input

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth v4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 64 compliant front panel
Operating Temperature	-20°C~50°C
Safety & EMC	CE / FCC
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speakers)
Audio Codec	ALC892
Ethernet	2 x Intel® I211 PCIe GbE controller
I/O Ports and Switches	1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
RAM	Two 260-pin 2133/1867 MHz dual-channel DDR4 SO-DIMMs (system max. 32 GB)
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	400
Contrast Ratio	500:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768 (16:9)
Size	15.6""
Viewing Angle (H-V)	170º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
OSD Function	Software OSD
System Cooling	Fanless
Physical Characteristics
Color	Black C
Construction Front Panel	PC + ABS Plastic
Dimensions (LxWxH) (mm)	396 x 250 x 64
Mounting	Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight	4.5Kg
Power
Power consumption	12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
System
Cooling method / System Fan	Fanless
CPU	6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage	1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Touch
Touch Controller	PenMount DMC9000/ EETI EXC7200
Touch Screen	5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight	4.5/6.5Kg
I/O Interface
I/O Interface	1 x RS-232(DB-9 (RI/5V/12V))
	1 x RS-422/485(DB-9 (RI/5V/12V))
	4 x USB 3.0
	1 x HDMI(output)
	2 x LAN(Gbe)
	1 x Reset Button
	1 x Power In(9-30V lockable power jack)
	1 x AT/ATX switch
	1 x Power Switch
