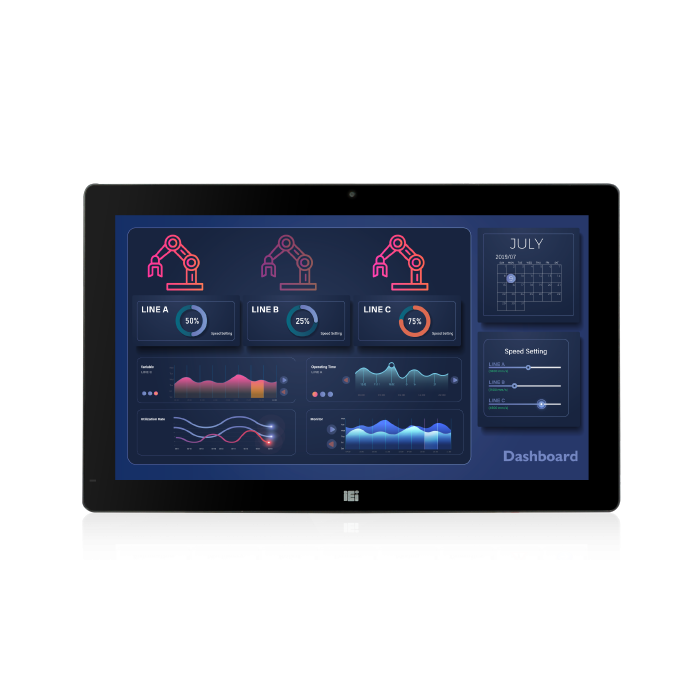

Shop AFL3-W19A-AL 18.5" Celeron J3455 CPU

IEI Integration Corp.

Intel® Celeron® J3455 quad core , 1.5GHz up to 2.3 GHz

In stock

SKU: AFL3-W19A-AL

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-W19A-AL 18.5" Celeron J3455 CPU

Wide 18.5” 250 cd/m² 1366x768 Panel PC with with Intel® Celeron® Processor J3455 (10W) on-board Processor (Apollo lake), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10

18.5” light industrial interactive panel PC
Intel Apollo lake processor
Wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
One HDMI output
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Bluetooth	Bluetooth V4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-15ºC ~ 50ºC
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC269
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	One 204-pin 1600/1333 MHz single-channel DDR3L SO-DIMM, 4GB pre-installed (system max. 8GB)
LCD
Backlight MTBF	30000 (LED backlight)
Brightness (cd/m2)	250
Contrast Ratio	1000:1
LCD Color	262K
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768 (16:9)
Size	18.5”
Viewing Angle (H-V)	170º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power consumption	12V@3.2A
System
CPU	Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)
Storage	(1) 1 x 2.5” SATA 3Gb/s HDD bay (2) 1 x mSATA slot
Touch
Touch Controller	EETI EXC3180
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	6.3/9
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x HDMI
	2 x LAN(GbE)
	1 x Line out
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	1 x RS-232(RJ45 (RI/5V/12V))
	1 x RS-422/485(RJ45 (RI/5V/12V))
	2 x USB 2.0
	2 x USB 3.0

Description

18.5” light industrial interactive panel PC
Intel Apollo lake processor
Wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
One HDMI output
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
