Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor
In stock
SKU
AFL3-W19C-ULT3
Have a Question about this product?
Description /

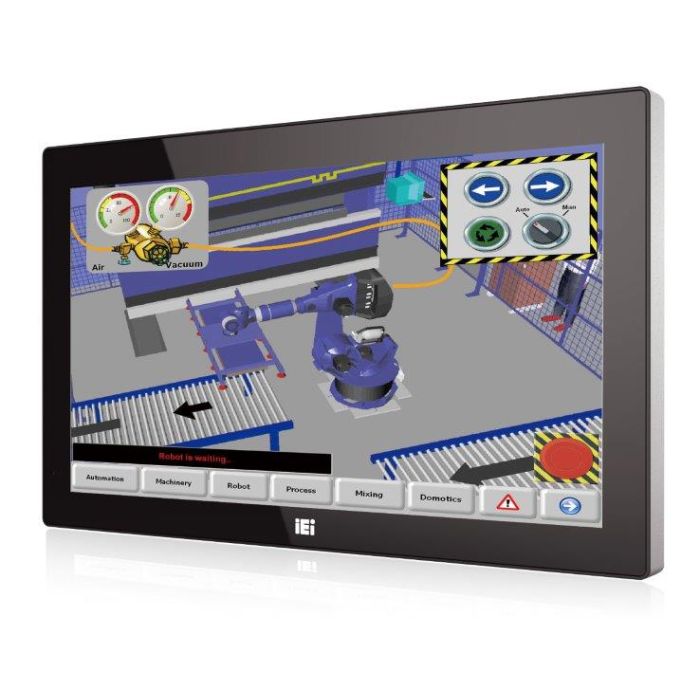

AFL3-W19C-ULT3 18.5" Wide Celeron Panel PC
Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor
● 18.5” light industrial interactive panel PC
● Wide range DC power input
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● IP64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
More Information
Brand
IEI Integration Corp.
Specifications
Spec Item
Description
Communication
Bluetooth
Bluetooth v4.0 (M.2 slot)
Wireless
IEEE 802.11a/b/g/n/ac
Environment
Humidity
10% to 95% (non-condensing)
IP Level
IP 64 compliant front panel
Operating Temperature
-20°C~50°C
Safety & EMC
CE / FCC
Storage Temperature
-20°C~60°C
I/O Interface
Audio
AMP 3W + 3W (internal speaker)
Audio Codec
ALC892
Ethernet
2 x Intel® I211-AT PCIe GbE controller
I/O Ports and Switches
1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
RAM
Two 260-pin DDR4 SO-DIMMs (system max.32GB)
LCD
Backlight MTBF
30,000 (LED backlight panel)
Brightness (cd/m2)
250
Contrast Ratio
1000:1
LCD Color
262K
Pixel Pitch (mm)
0.240 (H) x 0.240 (V)
Resolution
1366 x 768 (16:9)
Size
18.5""
Viewing Angle (H-V)
170º/160º
Other Features
Camera
2-megapixel with low light function
Microphone
digital microphone
OSD Function
Software OSD
System Cooling
Fanless
Physical Characteristics
Color
Black C
Construction Front Panel
PC + ABS Plastic
Cutout Dimensions
443 x 261 (W x H) (mm)
Dimensions (LxWxH) (mm)
470 x 290 x 70
Mounting
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight
7.3Kg
Power
Power consumption
12V@7.1A
Power Requirement
9 V ~ 30 VDC
System
Cooling method / System Fan
Fanless
CPU
Intel® Core™ i5 and Celeron® ULT Processor
Storage
1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Touch
Touch Controller
EETI EXC3180
Touch Screen
Projected capacitive type with USB interface
Weight
Weight
7.3/10Kg
I/O Interface
I/O Interface
1 x HDMI(output)
4 x USB 3.0
1 x Power In(9-30V lockable power jack)
1 x RS-232(DB-9 (RI/5V/12V))
2 x LAN(Gbe)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x RS-422/485(DB-9 (RI/5V/12V))
Description
Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor
● 18.5” light industrial interactive panel PC
● Wide range DC power input
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● IP64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
