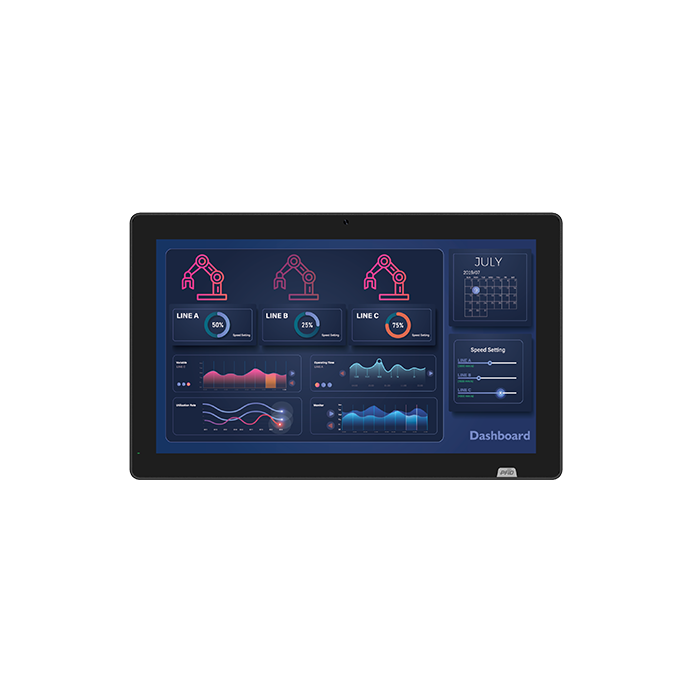

AFL3-W22C-ADLP 21.5” Fanless Touch Panel PC

IEI Integration Corp.

Wide 21.5" 350cd/m² 1920x1080 Panel PC with 12th Gen. Intel Core ion-board processor, PCAP touch, 2M camera, microphone

Key Features:

  • 12th Gen Intel Core Mobile i7/i5/i3 Processors

  • Full HD capacitive touchscreen

  • Anti-AG and Anti-UV PCAP

  • One E-Window that supports an additional connector interface

  • Support WiFi 6E and Bluetooth 5.2

In stock

SKU
AFL3-W22C-ADLP-ix/8G-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL3-W22C-ADLP 21.5” Fanless Touch Panel PC

The AFL3-ADLP is a new addition to IEI's AFOLUX series, designed specifically for light industrial markets. It is a fanless panel PC with an attractive design. The device is powered by a 12th Gen Intel Core processor, ensuring smooth performance even in demanding applications. It comes with 8GB DDR4 memory, which can be expanded up to 32GB, providing enough space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for an enhanced user experience and a wide range of I/O ports for convenient connectivity. With Wi-Fi 6E and Bluetooth 5.2, wireless communication is fast and reliable. The dual 2.5G LAN allows for efficient data transfer. Additionally, the AFL3-ADLP series supports IEI IRIS2 modules, providing an IPMI 2.0 solution for remote management, ensuring optimal performance and minimizing downtime.

More Information

brand IEI Integration Corp.
Specifications

System

CPU

12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)

Memory Ext.

Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM

(8G Pre-installed) (max. 32GB)

Storage

1 x 2.5” SATA HDD bay

Communication

Wireless

IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)

I/O Interface

Ethernet

LAN1: Intel® I225 LM(support Intel AMT)

LAN2: Intel® I225V

Audio

AMP 3W + 3W (internal speaker)

Expansion

2 x M.2 M Key 2280 (PCIe Gen 3 x4)

1 x M.2 B KEY (PCIe x1 or SATA) for IPMI

1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)

Audio Codec

ALC888S

Power

Power Supply

12V DC

Environment

Operating Temperature

0ºC ~ 40ºC

Safety & EMC

CE, FCC (Class A) , UKCA

Humidity

10% ~ 90% (non-condensing)

Storage Temperature

-20ºC ~ 60ºC

IP Level

IP 64 compliant front panel

Physical Characteristics

Color

Black

Mounting

Panel, Wall, Stand and Arm VESA 75 /100mm

Construction Front Panel

PC + ABS Plastic

LCD

Size

21.5”

Resolution

1920 x 1080 (16:10)

Brightness (cd/m2)

350 cd/m²

Contrast Ratio

1000 : 1

Viewing Angle (H-V)

178°/178°

Backlight MTBF

50000 hours

Touch

Touch Screen

PCAP with USB interface (anti-UV/AR coating)

Touch Controller

EXC3160

I/O Interface

I/O Interface

1 x AT/ATX switch


1 x Clear CMOS Button


1 x HDMI™ (2.0 (up to 3840*2160 @60Hz))


2 x LAN (Intel® I225V 2.5GbE controller)


1 x Reset Button


1 x RS-232 (by DB9)


1 x RS-232/422/485 (by DB9)


4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))


4 x USB 3.2 Gen1x1 (Type-A (10Gb/s))
Description

The AFL3-ADLP is a new addition to IEI's AFOLUX series, designed specifically for light industrial markets. It is a fanless panel PC with an attractive design. The device is powered by a 12th Gen Intel Core processor, ensuring smooth performance even in demanding applications. It comes with 8GB DDR4 memory, which can be expanded up to 32GB, providing enough space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for an enhanced user experience and a wide range of I/O ports for convenient connectivity. With Wi-Fi 6E and Bluetooth 5.2, wireless communication is fast and reliable. The dual 2.5G LAN allows for efficient data transfer. Additionally, the AFL3-ADLP series supports IEI IRIS2 modules, providing an IPMI 2.0 solution for remote management, ensuring optimal performance and minimizing downtime.
