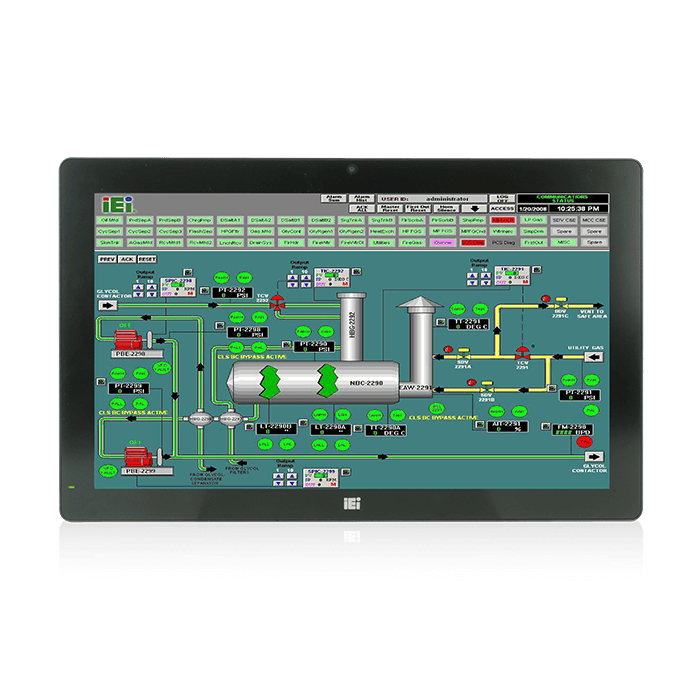

AFL3-W22C-ULT3 21.5" Fanless 6th gen Celeron 3955U/i5-6300U
IEI Integration Corp.
AFL3-W22C-ULT3 21.5" Fanless 6th gen Celeron 3955U/i5-6300U
Wide 21.5” 250 cd/m² 1920x1080 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R13
In stock
SKU
AFL3-W22C-ULT3
Have a Question about this product?
Description /
AFL3-W22C-ULT3 21.5" Fanless 6th gen Celeron 3955U/i5-6300U
W21.5” light industrial interactive panel PC
9 V ~ 30 V wide range DC power input
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
More Information
Brand
IEI Integration Corp.
Specifications
Spec Item
Description
System
CPU
Intel® Core™ i5 and Celeron® ULT Processor
Storage
1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Communication
Bluetooth
v4.0 (M.2 slot)
Wi-Fi
IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet
2 x Intel® I211-AT PCIe GbE controller
Audio
AMP 3W + 3W (internal speaker)
Audio Codec
ALC892
RAM
Two 260-pin DDR4 SO-DIMMs (system max.32GB)
I/O Ports and Switches
1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
Environment
Operating Temperature
-20°C~50°C
Humidity
10% to 95% (non-condensing)
Storage Temperature
-20°C~60°C
IP Level
IP 64 compliant front panel
Physical Characteristics
Color
Black C
Mounting
Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Dimensions (LxWxH) (mm)
528 x 336 x 68
Construction Front Panel
PC + ABS Plastic
Weight
Weight
8.27/11.27
LCD
Size
21.5""
Resolution
1920 x 1080
Brightness (cd/m2)
250
Contrast Ratio
1000:1
LCD Color
16.7M
Pixel Pitch (mm)
248.25 (H) × 248.25 (V)
Viewing Angle (H-V)
170°(H) / 160°(V)
Backlight MTBF
30,000 (LED backlight panel)
Touch
Touch Screen
Projected capacitive type with USB interface
Touch Controller
EETI EXC3180
Other Features
Camera
2-megapixel with low light function
OSD Function
Software OSD
Microphone
digital microphone
I/O Interface
I/O Interface
1 x RS-422/485(DB-9 (RI/5V/12V))
4 x USB 3.0
1 x Power In(DC jack)
2 x LAN(GbE)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x RS-232(DB-9 (RI/5V/12V))
1 x HDMI
Description
W21.5” light industrial interactive panel PC
9 V ~ 30 V wide range DC power input
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
