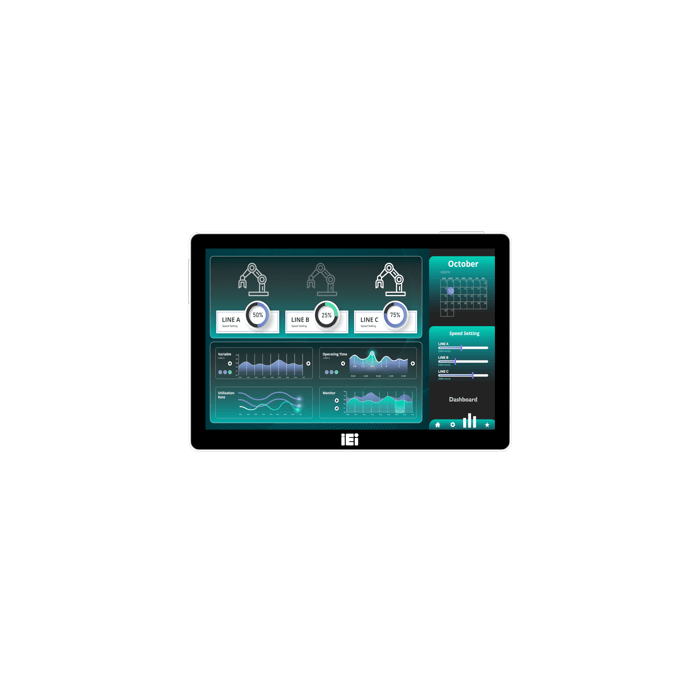

AFL4-W101-ADLP 10.1” Light Industrial Fanless Panel PC 12th Gen

IEI Integration Corp.

10.1” Fanless Panel PC with Intel Alder Lake-P Core Processor

Key Features:

  • Intel Alder Lake-P Platform
  • New narrow bezel design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Support WiFi 6E and Bluetooth 5.2

In stock

SKU
AFL4-W101-ADLP-ix/8G-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AFL4-W101-ADLP 10.1” Light Industrial Fanless Panel PC 12th Gen

The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2- making it ideal for high-speed connectivity and large embedded RAM applications. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation, and surveillance.

More Information

brand IEI Integration Corp.
Specifications

System

CPU

12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)

On-board Memory

Dual channel On board LPDDR4X 8G

Communication

Wireless

IEEE 802.11ax 2T2R module (Wi-Fi 6E)

with BT v5.0 (M.2 2230 A-key)

I/O Interface

Ethernet

LAN1: Intel® I225V 2.5GbE controller

LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT)

Audio

AMP 1.2W (internal speaker)

Expansion

1 x M.2 M key 2242 (PCIE Gen4 x 4)

1 x M.2 M key 2280 (PCIE Gen4 x 4)

Audio Codec

Realtek ALC888S

Power

Input

12V DC

Environment

Operating Temperature

-10°C ~ 50°C

Safety & EMC

CE/EMC , FCC , RED (Class A)

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C ~ 60°C

IP Level

Front panel IP65

Physical Characteristics

Color

Silver+Black

Mounting

Wall, Rack, Stand, ARM, VESA100

Construction Front Panel

Aluminum die casting+SECC

LCD

Size

10.1”

Resolution

1280 x 800 (16:10)

Brightness (cd/m2)

350(cd/m²)

Contrast Ratio

900:1

Viewing Angle (H-V)

170°/170°

Backlight MTBF

30000 hours

Touch

Touch Screen

Multi-point projected capacitive type

(anti-UV / anti-glare coating,support gloves)

Surface hardness: ≥7H

Touch Controller

EETI EXC 81 Series

I/O Interface

I/O Interface

2 x RS-232 (by DB9)


2 x RS-232/422/485 (by DB9)


2 x LAN


1 x DC Input Jack


1 x Reset Button


1 x Power Switch


1 x AT/ATX switch


2 x USB 3.2 Gen1x1


1 x USB2.0


1 x HDMI™ (up to 3840*2160 @30Hz)


2 x LAN (Intel® I225V 2.5GbE controller)


2 x USB 3.2 Gen2

OS Support

OS Support

Windows 10 IoT

Linux
Description

The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2- making it ideal for high-speed connectivity and large embedded RAM applications. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation, and surveillance.
