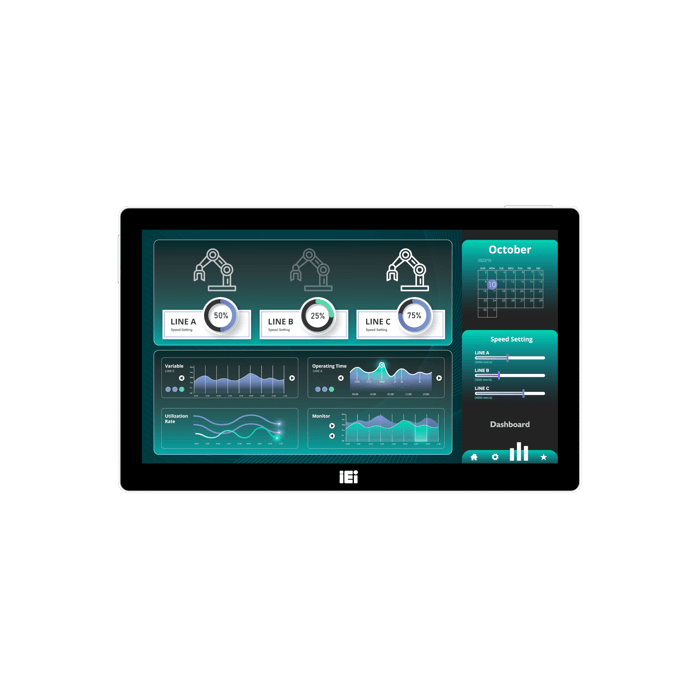

AFL4-W133-ADLP 13.3" Light Industrial Fanless Panel PC 12th Gen
13.3” Fanless Panel PC with Intel Alder Lake-P Core Processor
Key Features:
- Intel Alder Lake-P Platform
- A new narrow bezel design
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Support WiFi 6E and Bluetooth®5.2
In stock
- SKU
- AFL4-W133-ADLP-ix/8G-R10
Have a Question about this product?
Description / AFL4-W133-ADLP 13.3" Light Industrial Fanless Panel PC 12th Gen
Introducing a fanless panel PC featuring a sleek narrow bezel design, powered by the Intel® Alder Lake-P platform with 8GB of onboard memory. This versatile device boasts an HDMI output, dual 2.5GbE LAN ports, four UART ports, five USB ports, and two M.2 M-key expansion slots. Additionally, it sports a 10-point touchscreen with anti-glare and anti-UV coating.
This panel PC is driven by the cutting-edge 12th generation Intel® Alder Lake-P Series processors and an asynchronous architecture, resulting in exceptional performance.
The two M.2 M-key slots are compatible with 2242 and 2280 M.2 modules, offering support for PCIe Gen4 x4 full-speed signals, ensuring enhanced bandwidth and faster speeds.
The 10-point touchscreen, equipped with anti-glare and anti-UV coatings, provides clear visibility without reflections, even in outdoor and brightly lit environments. What's more, it supports glove operation and is waterproof, effectively preventing false touch inputs caused by water spray.
Despite its compact size, this panel PC offers a rich array of I/O options suitable for a wide range of application scenarios. It includes four UART ports, five USB ports, two 2.5G network ports, and an HDMI interface.
Its robust Wi-Fi 6E wireless network capability delivers increased bandwidth, while the low-latency Bluetooth 5.2 connection ensures stability and minimal power consumption.
More Information
| brand | IEI Integration Corp. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | Hardware Spec.
Ordering Information
Package Contents
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | Introducing a fanless panel PC featuring a sleek narrow bezel design, powered by the Intel® Alder Lake-P platform with 8GB of onboard memory. This versatile device boasts an HDMI output, dual 2.5GbE LAN ports, four UART ports, five USB ports, and two M.2 M-key expansion slots. Additionally, it sports a 10-point touchscreen with anti-glare and anti-UV coating. This panel PC is driven by the cutting-edge 12th generation Intel® Alder Lake-P Series processors and an asynchronous architecture, resulting in exceptional performance. The two M.2 M-key slots are compatible with 2242 and 2280 M.2 modules, offering support for PCIe Gen4 x4 full-speed signals, ensuring enhanced bandwidth and faster speeds. The 10-point touchscreen, equipped with anti-glare and anti-UV coatings, provides clear visibility without reflections, even in outdoor and brightly lit environments. What's more, it supports glove operation and is waterproof, effectively preventing false touch inputs caused by water spray. Despite its compact size, this panel PC offers a rich array of I/O options suitable for a wide range of application scenarios. It includes four UART ports, five USB ports, two 2.5G network ports, and an HDMI interface. Its robust Wi-Fi 6E wireless network capability delivers increased bandwidth, while the low-latency Bluetooth 5.2 connection ensures stability and minimal power consumption. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
