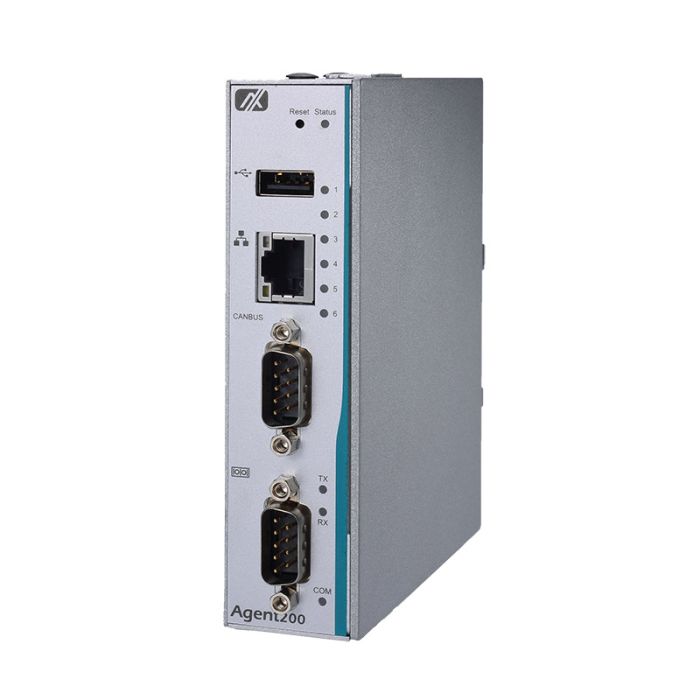

Shop Agent200-FL-DC i.MX 6UltraLite, 4x input/output

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor,
1 COM, 1 LAN, DIO (4-in/4-out) and Optional CANbus

In stock

SKU: Agent200-FL-DC

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / Agent200-FL-DC i.MX 6UltraLite, 4x input/output

● RISC-based (i.MX 6UltraLite) processor 528 MHz
● 256MB DDR3 SDRAM onboard
● 4GB eMMC flash onboard
● 2 PCI Express Mini Card slots (Wi-Fi or 3G/4G)
● 4 digital inputs and 4 digital outputs
● Power input range of 9V to 48V DC with terminal block
● Embedded Linux (Yocto) and Android 8.1 operating system
● Fanless and compact design
● Wide operating temperature range from -40°C to +70°C

More Information

Specifications

CPU	NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Construction	Extruded aluminum and heavy-duty steel, IP40
System Memory	1 x DDR3-1600 onboard, 256 MB
Video Output	Chipset Intel® UHD Graphics 6301 x HDMI 1.4b up to 4096 x 2160 @ 30Hz1 x VGA up to 1920 x 1200 @ 60Hz
System I/O Outlet	Serial Port 1 x RS-232/422/485 LAN 1 x 10/100 Mbps Ethernet Magnetic isolation protection 1.5KV USB 1 x USB 2.0 DIO 1 x DIO (4-in/4-out) DI: Wet DO: Wet DI: Digital input levels for wet contacts: -Logic level 0: Close to GND -Logic level 1: +0.7 to +24 V max. DO: Output channels: 1, sink type Output current: max. 200 mA per channel On-state voltage: 24 VDC nominal, open Console Port Yes, for user setting with debug EEPROM 1 x EEPPROM (2 Kb) Wireless 2 x PCI Express Mini Card slot (USB signal only) 1 x SIM card socket
Watchdog Timer	1 x LED for power status 1 x LED for USB status 2 x LED for TX/RX status 3 x LED (programing by client)
LED	1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with dead reckoning availableTPM 2.0 by Infineon SLB9665TT2 (BOM option)G Sensor (3-axis, 10-bit resolution)
Storage	Storage 1 x eMMC 4GB flash onboard
Power Supply	9 to 48 VDC power input range
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Storage Temperature	-45°C to +85°C (-49°F to +185°F)
Operating System	Windows 10Linux
Humidity	10% to 95%
Vibration Endurance	5 Gms @ (10 to 150Hz random; operation)
Dimensions	31 mm (1.22") (W) x 100 mm (3.94") (D) x 125 mm (4.92") (H)
Weight (net/gross)	0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Installation	DIN-rail, wall mount
OS Support	Yocto 2.4 (rocko), kernel 4.9.88 Ubuntu 18.04, kernel 4.9.88 Android 8.1
Certifications	FCC part 15, Heavy Industrial CE
