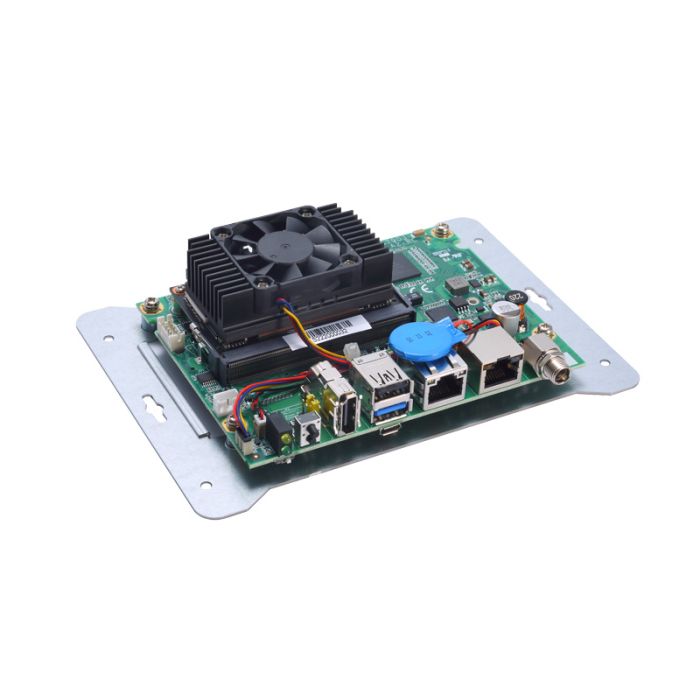

AIE110-XNX Edge AI Developer Kit NVIDIA® Jetson Xavier™

Axiomtek

AIE110-XNX Edge AI Developer Kit NVIDIA® Jetson Xavier™ 1 x GbE LAN 1 x GbE PoE

Key Features:

  • NVIDIA® Jetson Xavier™ NX, 384-core NVIDIA Volta™ GPU
  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
  • Supports one 15W GbE PoE for camera
  • 1 M.2 M-Key NVMe SSD slot and 1 Micro SD slot
  • 1 PCI Express Mini Card for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA
    deployment empowered by Allxon

In stock

SKU
AIE110-XNX
$1,500.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AIE110-XNX Edge AI Developer Kit NVIDIA® Jetson Xavier™

The AIE110 powered by a NVIDIA® Carmel™ 6-core ARM cpu in junction with a 384-core NVIDIA® Volta™ GPU to enable a system capable of AI development. Included with 1 GbE LAN & POE connections to enable the use of cameras and 24/7 secure monitoring and control through remote software. Includes 8GB of LPDDR4x memory onboard and has additional expansion slots for M.2 NVME SSD's alongside Mini PCI Express for use with LTE/Wi-Fi chips.

Key Features:

  • NVIDIA® Jetson Xavier™ NX, 384-core NVIDIA Volta™ GPU
  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
  • Supports one 15W GbE PoE for camera
  • 1 M.2 M-Key NVMe SSD slot and 1 Micro SD slot
  • 1 PCI Express Mini Card for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA
    deployment empowered by Allxon

More Information

brand Axiomtek
Specifications

AI Accelerator

NVIDIA® Jetson Xavier™ NX

CPU

6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3

GPU

384-core NVIDIA Volta™ GPU with 48 Tensor Cores

System Memory

8GB 128-bit LPDDR4x onboard

Carrier Board

SBC87903

System I/O Outlet

1 x HDMI 2.0 with 4K2K supported

1 x 10/100/1000 Mbps Ethernet (via Jetson Xavier™ NX)

1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)

1 x USB 3.2 Gen2, 1 x USB 2.0

1 x DIO (pin header)

1 x Micro USB

1 x Recovery switch

1 x Reset button

1 x Power button

1 x 12 VDC power input connector

Watchdog Timer

Built-in Xavier NX

Storage

Onboard 16GB eMMC (via Jetson Xavier™ NX)

1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot

1 x Micro SD slot

*The bootable device supported by eMMC only

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

System Indicator

1 x Green LED for system power-on

1 x Yellow LED for M.2 storage

Power Supply

12 VDC screw type

Operating Temperature

-10°C to +60°C (14°F to +140°F)

Humidity

10% - 95%, non-condensing

Vibration Endurance

3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)

Dimensions

165 mm (6.49\") (W) x 117 mm (4.60\") (D) x 37.7 mm (1.48\") (H)

Weight (net/gross)

0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb)

Certifications

CE, FCC Class A

OS Support

Linux Ubuntu 18.04 or later
Description

The AIE110 powered by a NVIDIA® Carmel™ 6-core ARM cpu in junction with a 384-core NVIDIA® Volta™ GPU to enable a system capable of AI development. Included with 1 GbE LAN & POE connections to enable the use of cameras and 24/7 secure monitoring and control through remote software. Includes 8GB of LPDDR4x memory onboard and has additional expansion slots for M.2 NVME SSD's alongside Mini PCI Express for use with LTE/Wi-Fi chips.

Key Features:

  • NVIDIA® Jetson Xavier™ NX, 384-core NVIDIA Volta™ GPU
  • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
  • Supports one 15W GbE PoE for camera
  • 1 M.2 M-Key NVMe SSD slot and 1 Micro SD slot
  • 1 PCI Express Mini Card for Wi-Fi/Bluetooth/LTE/GPS
  • JetPack supported
  • Supports 24/7 secure remote monitoring, control, and OTA
    deployment empowered by Allxon
