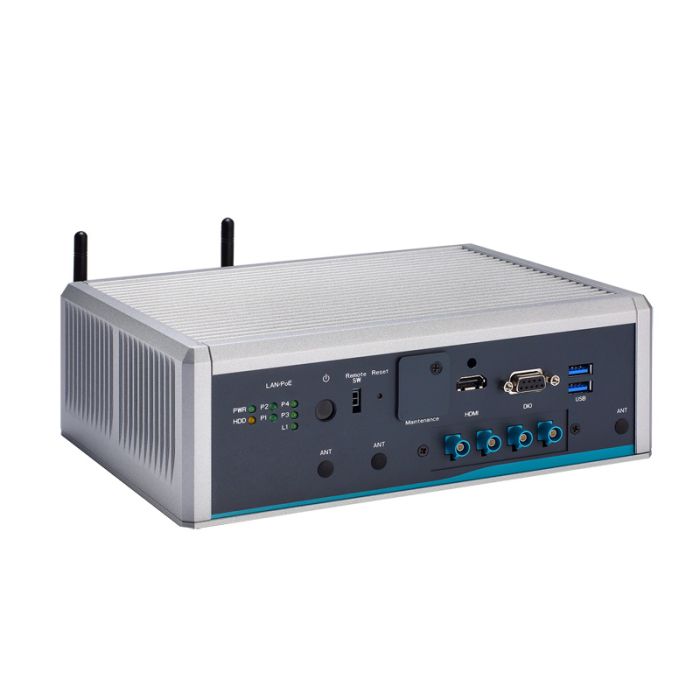

AIE900-XNX Fanless Edge AI System NVIDIA Jetson Xavier NX PoE

Axiomtek

NVIDIA Jetson Xavier NX, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 8-CH DI/DO, and 2 COM/CAN for 5G and AMR Applications

Key Features:

  • NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
  • Advanced edge AI platform for AMR, AGV, and computer vision
  • Wide power input ranges from 9 to 36 VDC (ignition power control for option)
  • Supports four GbE PoE for GigE camera and LiDAR connectivity
  • Wide operating temperature range from -30°C to +60°C
  • One M.2 Key B slot for 5G
  • One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports

In stock

SKU
AIE900-XNX-1L4P

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AIE900-XNX Fanless Edge AI System NVIDIA Jetson Xavier NX PoE

The AIE900-XNX has a powerful and effective 384-core NVIDIA Volta architecture GPU and 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor that together provide up to 21 TOPS accelerated computing performance for running contemporary AI workloads. The advanced edge AI computing platform has one M.2 Key B slot for the 5G module to address the emerging demands for faster throughput, lower latency, and a higher density of connections. Additionally, it has one SIM slot for Wi-Fi, LTE, Bluetooth, and GPS, as well as one full-size PCIe Mini Card slot. Given the high-temperature operation and different voltage input requirements for use in sedans, buses, and trucks, it has an extended operating temperature range of -30°C to +60°C and 9 to 36 VDC power input with an optional ignition power control.

Key Features:

  • NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
  • Advanced edge AI platform for AMR, AGV, and computer vision
  • Wide power input ranges from 9 to 36 VDC (ignition power control for option)
  • Supports four GbE PoE for GigE camera and LiDAR connectivity
  • Wide operating temperature range from -30°C to +60°C
  • One M.2 Key B slot for 5G
  • One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports

More Information

brand Axiomtek
Specifications
CPU Board
  • NVIDIA® Jetson Xavierâ„¢ NX
CPU
  • 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
GPU
  • 384-core NVIDIA Voltaâ„¢ GPU with 48 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 8GB 128-bit LPDDR4x onboard
COM
  • 2 x DB9 for RS-232/422/485/CAN (selected by jumper setting)
USB
  • 2 x USB 3.1 Gen2
  • 1 x Micro USB
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Via Jetson Xavierâ„¢ NX)
  • 4 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 30W)
Display
  • 1 x Lockable HDMI 2.0 with 4K2K supported
Digital I/O
  • 1 x 8-CH DI/DO
Audio
  • N/A
Storage
  • Onboard 16GB eMMC (via Jetson Xavierâ„¢ NX)
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x MIPI CSI-2 connector (4 x FPD-Link III connector by option)
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x M.2 Key B 3050/3042 slot
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Remote switch
  • 1 x Reset button
  • 1 x Power button
  • 5 x SMA-type antenna opening
Power Supply
  • 9 to 36 VDC (ignition power control by option)
Watchdog Timer
  • Dual watchdog timer
Construction
  • Aluminium extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% - 95%, non-condensing
Vibration
  • 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
  • 239 x 185.3 x 79.4 mm (9.41\" x 7.3\" x 3.13\")
Weight (net/gross)
  • 2.8kg (6.17lb)/3.45kg (7.61lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount
Description

The AIE900-XNX has a powerful and effective 384-core NVIDIA Volta architecture GPU and 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor that together provide up to 21 TOPS accelerated computing performance for running contemporary AI workloads. The advanced edge AI computing platform has one M.2 Key B slot for the 5G module to address the emerging demands for faster throughput, lower latency, and a higher density of connections. Additionally, it has one SIM slot for Wi-Fi, LTE, Bluetooth, and GPS, as well as one full-size PCIe Mini Card slot. Given the high-temperature operation and different voltage input requirements for use in sedans, buses, and trucks, it has an extended operating temperature range of -30°C to +60°C and 9 to 36 VDC power input with an optional ignition power control.

Key Features:

  • NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
  • Advanced edge AI platform for AMR, AGV, and computer vision
  • Wide power input ranges from 9 to 36 VDC (ignition power control for option)
  • Supports four GbE PoE for GigE camera and LiDAR connectivity
  • Wide operating temperature range from -30°C to +60°C
  • One M.2 Key B slot for 5G
  • One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports
