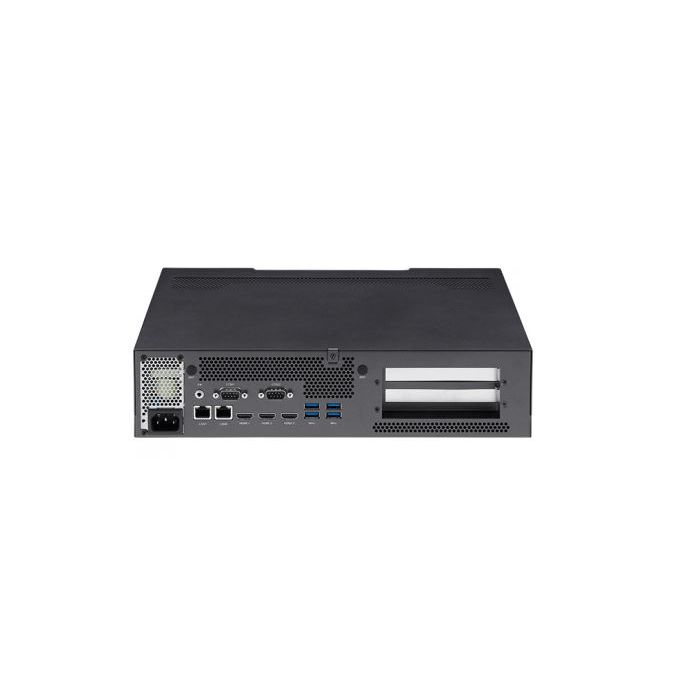

AIEdge-X300 Industrial AI Computing System

Nexcom

Industrial AI Computing System at the Edge Powered by Intel 8th/9th Gen. Intel Core CPU for Optional NVIDIA Graphics Card

In stock

SKU
AIEDGE-X300
$900.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AIEdge-X300 Industrial AI Computing System

The AIEdge-X300 is an ideal high-end PC for optimising Image analytics, interactive projection, information visualisation, convey brand messages, customer engagement, and smart retail management efficiencies to increase customer interaction and brand awareness, with HDMI display, LAN ports, USB 3.0 ports, and an RS232/RS422/RS485 interface. The AIEdge-X300 can be used for a variety of applications, including education, interactive walls/floors, virtual and augmented reality, and more.

Features:

  • Supports 8th/9th Gen Intel® Core™ i5/i7/i9 and socket type processor up to 65W
  • PCIe slot supports PCIe x16 graphics card up to 160W
  • Validated with NVIDIA RTX 2060 graphics card
  • Industrial AI system compact in size
  • Support optional M.2 module for Wi-Fi and flash storage
  • Support 1 x SATA 2.5” HDD/SSD or 1 x 3.5” HDD/SSD

More Information

brand Nexcom
Specifications
CPU Support CPU support
Socket LGA1151, Intel® 8/9th Generation Core™ i9/i7/i5/i3 processor, 14nm process
- i3-8100T Quad cord, 3.10 GHz, TDP 35W
- i5-8500T 6 cord, 2.10 GHz, TDP 35W
- i7-8700T 6 cord, 2.40 GHz, TDP 35W
- i3-8300 Quad cord, 3.70 GHz, TDP 65W
- i5-8500 6 cord, 3.0 GHz, TDP 65W
- i7-8700 6 cord, 3.2 GHz, TDP 65W
- i3-9100TE Quad cord, 2.20 GHz, TDP 35W
- i5-9500TE 6 cord, 2.2 GHz, TDP 35W
- i7-9700TE 8 cord, 1.8 GHz, TDP 35W
- i9-9900T 8 cord, 2.1 GHz, TDP 35
Chipset Intel® PCH Q370
Graphics Supports up to NVIDIA RTX 2060 (graphics card optional)
- Integrated graphic powered by Intel® UHD graphics 630
- Suggested expansion card dimension within the limit of 204mm (L) x 121mm (W) x 39mm (H)Validated for optional graphics card
- ASUS PH-RTX2060-O6G
- Leadtek Quadro P2200
Main Memory 2 x 260-pin SO-DIMM sockets Support DDR4-2400/2666 MHz non-ECC, un-buffered memory up to 32G (single socket max 16GB)
Internal I/O 2 x RS232 COM port box header8 Channels GPIO pin header4 x USB 2.0 pin header1 x SATA connector
I/O Interface 1 x Power button with LED1 x HDD LED2 x Antenna hole3 x HDMI 2.04 x USB 3.02 x RJ45 with LEDs for Gigabit LAN (Intel® I219-LM/I211-AT)1 x COM 1 port RS232/RS422/RS4851 x COM 2 port RS2321 x Audio Line-out
Storage 1 x SATA 2.5” HDD/SSD or 1 x 3.5” HDD/SSD1 x M.2 M Key 2280 SSD with SATA/PCIe signal
Expansion PCIe x16 Gen 3 slot (2 slot space available for graphics card)1 x M.2 E key 2230 supporting Wi-Fi module
Power Supply 1 x 500W flex ATX power supply
Environment Operating temperature: 0°C to 45°CStorage temperature: -20°C to 80°CHumidity: 10% to 90% (non-condensing)
Certification CE (EMC EN55032 + EN55024)FCC Class A (EMI Part 15B)LVD
Dimensions 360mm (W) x 250mm (D) x 85mm (H)
Operating System Support Win10/Linux
Description

The AIEdge-X300 is an ideal high-end PC for optimising Image analytics, interactive projection, information visualisation, convey brand messages, customer engagement, and smart retail management efficiencies to increase customer interaction and brand awareness, with HDMI display, LAN ports, USB 3.0 ports, and an RS232/RS422/RS485 interface. The AIEdge-X300 can be used for a variety of applications, including education, interactive walls/floors, virtual and augmented reality, and more.

Features:

  • Supports 8th/9th Gen Intel® Core™ i5/i7/i9 and socket type processor up to 65W
  • PCIe slot supports PCIe x16 graphics card up to 160W
  • Validated with NVIDIA RTX 2060 graphics card
  • Industrial AI system compact in size
  • Support optional M.2 module for Wi-Fi and flash storage
  • Support 1 x SATA 2.5” HDD/SSD or 1 x 3.5” HDD/SSD
