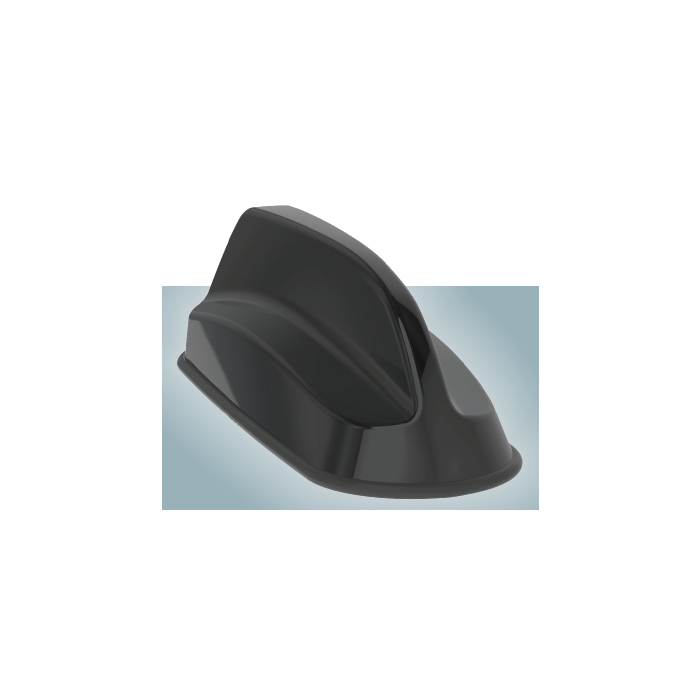

Airlink 2 in 1 Sharkfin

ELECTRICAL DATA
Frequency Range Elements 1 & 2 698-960, 1710-2170, 2500-3800MHz
Operational Bands Elements 1 & 2 2G/3G/4G LTE
Peak gain: Isotropic Elements 1 & 2 2dBi (698-960MHz) | 5dBi (1710-3800MHz)
Isolation with 4m/13’ CS29 Cellular >11dB
Typical Efficiency w/o
Cable Loss
Elements 1 & 2 > 50%
Correlation Co-efficient Elements 1 & 2 < 0.2
Polarisation Vertical
Pattern Omni-directional
Impedance 50Ω
Max Input Power 25W

MECHANICAL DATA
Dimensions
Total Height
(excluding whip)
50mm (2.2”)
Length 170mm (6.77”)
Width 60mm (2.4”)
Operating Temp -40° / +80°C (-40° / 176°F)
Material ASA, EPDM, Aluminium Alloy
Colour Black
Weight 658g
Ingress Protection IP 66

MOUNTING DATA
Mounting Type Panel Mount
Hole Mounting 19mm (3/4”)
CABLE DATA
Cell/LTE Cables
Cable Types - All Feeds CS29
Lengths 4 (13ft)
Termination SMA Plug
