Shop AirLink XR60 Rugged 5G Router

Semtech formerly Sierra Wireless

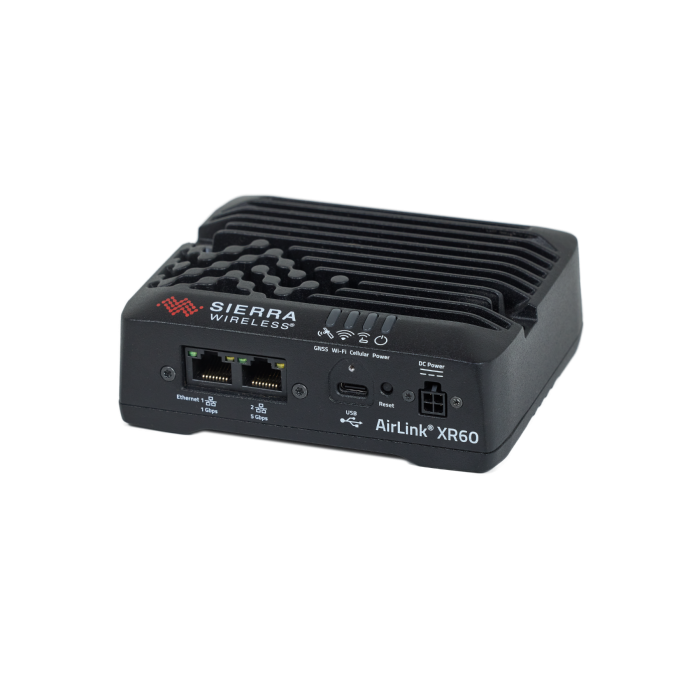

AirLink® XR60, the world’s smallest rugged 5G router is compact yet powerful.

Key Features:

4x4 5G + LTE Cat-20
2x2 Wi-Fi 6 (optional)
Dual-Band GNSS
Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
IP64 and MIL-STD-810H Rated
Powered by AirLink OS and AirLink Complete

In stock

SKU: XR60-DUAL-LAN

$1,575.00

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AirLink XR60 Rugged 5G Router

The ultra-compact and highly ruggedized AirLink® XR60 delivers high-performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments – from tight industrial enclosures to fast-moving vehicles. With advanced networking capabilities, private network support, and edge computing capabilities, the XR60 future-proofs your connectivity and accelerates your digital transformation.

The AirLink XR60 is fully integrated with AirLink Complete – a comprehensive service package that includes remote device and security management, expert technical support, and an extended hardware warranty. You can also opt for AirLink Premium – an advanced service package that includes all the benefits of AirLink Complete, enhanced with Advanced Mobility Reporting and Advance Replacement.

High-performance and reliable connectivity in fixed and mobile mission-critical applications:

Critical Infrastructure
Video Surveillance
Smart Cities
Manufacturing
Public Safety Vehicles
Fixed Wireless Access
Fleet Vehicles

More Information

brand

Semtech formerly Sierra Wireless

Specifications

GLOBAL
CELLULAR
Variant	Global
Technology	5G
Peak Downlink (Theoretical)	2800 Mbps
Peak Uplink (Theoretical)	300 Mbps
Category	5G
Region	Global
Radio	EM9291
MIMO	4x4
RF Connectors	SMA
SIM	Dual SIM (Nano-4FF)

WIRELESS CERTIFICATION
Regulatory	FCC, IC/ISED, PTCRB
Carrier	AT&T, FirstNet® 4G, T-Mobile, Verizon, CBRS. C-Band (Pending) Planned: Rogers, Telus, Bell, Telstra
Public Safety	FirstNet® 4G (Pending)
Part Numbers	1105099 XR60 Dual Ethernet (1 Gbps + 5 Gbps) 1105159 XR60 Dual Ethernet (1 Gbps + 5 Gbps) with Wi-Fi 1105160 XR60 Single Serial, Single Ethernet (1 Gbps) 1105161 XR60 Single Serial, Single Ethernet (1 Gbps) with Wi-Fi
WI-FI
Wi-Fi Standard	Wi-Fi 6
Access Point	Dual (2.4 & 5 GHz)
Client (Depot/WAN)	Yes
Client & AP	Yes
Peak Throughput (Theoretical)	1200 Mbps
MIMO	Single 2x2
Security	WPA2/3 Personal WPA2/3 Transitional WPA2 Enterprise (Client only)
Clients	Up to 32 maximum
SSID	3
Output Power	21 dBm per chain
Frequency	2.4/5 GHz
RF Connectors	SMA (Reverse Polarity)
ENVIRONMENTAL
Operating Temperature	-40°C to +70°C / -40°F to +158°F -30°C to +65°C / -22°F to +149°F (Wi-Fi variant)
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	95% RH @ 60°C
Military Specification	MIL-STD-810H (Shock, Vibration, Thermal Shock, Humidity)
IP Rating	IP64
INDUSTRY CERTIFICATIONS
Safety	IECEE Certification Bodies Scheme (CB Scheme)
Vehicle Usage	E-Mark (UN ECE Regulation 10.05), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environmental Directives	RoHS2, REACH, WEEE, Prop 65
Hazardous Environments	Class 1 Div 2 – Ambient temperatures of -30°C to +60°C IECEx & ATEX
Rail Usage	EN50155/EN45545 (Rolling Stock)
POWER
Input Voltage	7 to 36 VDC Redundant power input via USB-C (45W)
Power Consumption	Idle Power: 3.5W (290 mA @ 12VDC) - Serial/Ethernet variant Standby Mode Power: 55 mW (4.6 mA @ 12 VDC) Triggered on low voltage, I/O or periodic timer
Power Modes	7 to 36 VDC: Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption Can switch to redundant power input via USB-C (45W)
SECURITY
AAA	Wi-Fi 802.1x/Radius authentication
Firewall	Stateful firewall with port forwarding, DMZ
WLAN Encryption	WPA2/3 Personal WPA2/3 Transitional WPA2 Enterprise (Client only)
Firmware Update	Secure Firmware Update
NETWORK AND ROUTING
Throughput	800 Mbps Firewall TCP throughput
Features	Semtech Cognitive Wireless IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet
QoS	Application/Traffic Priority Queuing
WAN Monitors	Connection Failure Recovery
LAN (ETHERNET/USB)
	USB to Ethernet
VPN
Throughput	175 Mbps IPSec VPN TCP throughput
Features	Integrated with ACM VPN Server IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Level 1 compliant
Encryption	AES128/AES192/AES256
Hashing	SHA256/SHA384/SHA512
Key Exchange	DHGroup14/15/16/17/18/19/20/21
	LAN to LAN and Host to LAN Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD)
EDGE COMPUTING
	Support for Edge Compute Docker Containerized Applications (Beta) licensed via ALMS
RAM¹,²	1.2 GB
Storage (Flash)¹	1.7 GB
CPU	Quad Core Arm A53 64-bit
AIRLINK COMPLETE (1 Year Included With Router Purchase)
Support	24/7 technical support*
Hardware Warranty	1-year standard hardware warranty Extended hardware warranty up to 5 years with current subscription**
Device Management	AirLink Management Service (ALMS)*
Software Updates	Unrestricted critical firmware updates
*AIRLINK PREMIUM (Optional Upgrade) Includes All Airlink Complete Features and Adds:**
Advanced Mobility Reporting	Coverage and fleet reporting***
Advance Replacement	Same-day shipping for in-warranty router replacements***
RELIABILITY
MTBF	1105099 XR60 Dual Ethernet: 264010 hours (30.13 years) 1105159 XR60 Dual Ethernet, Wi-Fi: 245227 hours (27.99 years) 1105160 XR60 Serial, Ethernet: 283666 hours (32.38 years) 1105161 XR60 Serial, Ethernet, Wi-Fi: 262094 hours (29.91 years) • Ground Benign, 25°C • MTBF calculations performed per Telcordia “Reliability Prediction Procedure for Electronic Equipment” document number SR-332, Method I, Issue 31. Approximation available to containers (not device total)
ACCESSORIES
In The Box	XR60, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet
Other Accessories (sold separately)	6001503 AC Adapter 6001502 Spare DC Power Cable 6001529 DIN Rail Bracket 6001410 RJ45 to Single DB9 6001409 RJ45 to Dual DB9
DIMENSIONS
AirLink XR60	Size: 118mm x 39mm x 98mm (108 including SMA connectors) 4.6 x 1.5 x 3.9 in (4.2 in including SMA connectors) Same bolt pattern as RV Weight: 522 g / 1.15 lb with Wi-Fi

2. Depends on other enabled features

*With current AirLink Complete subscription
**Full warranty terms are available at www.sierrawireless.com/end-user-warranty
***With current AirLink Premium subscription
