Buy ARC-15W00 15.6\" Rugged Touch Monitor

Avalue Technology Inc

15.6" WXGA LCD Front IP65 with projective capacitive multi-touch

Key Features:

15.6" WXGA LCD with projective capacitive multi-touch
HDMI, Display Port, VGA input, line in
Rugged design for vibration and shock protection
Fanless operation -10 ~ 50°C
Default with +12V DC in power input
Front panel IP65 protection
Default with panel mounting kits
Option for Bi-Direction WIFI-6 interactive module for USB signal and image

In stock

SKU: ARC-15W00-CP-A1R

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

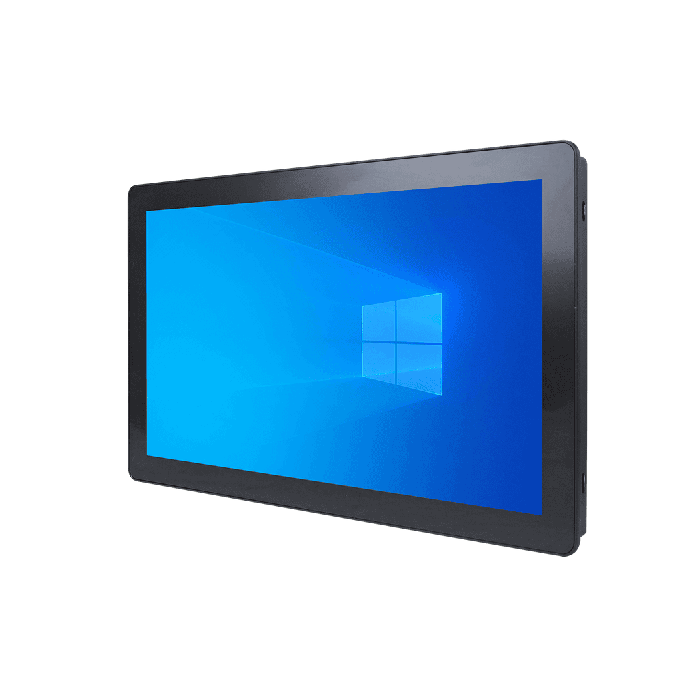

Description / ARC-15W00 15.6" WXGA Rugged PCAP Multi-Touch Monitor

The Avalue ARC-15W00 is a robust 15.6” industrial display, designed to perform reliably in demanding environments. With its wide operating temperature range and IP65-rated front panel, it withstands exposure to dust and water, making it suitable for factory floors, outdoor kiosks, and more. The display offers high-quality visuals with 1920 x 1080 resolution, ensuring crisp clarity for monitoring and control applications. Flexible mounting options and connectivity enhance its adaptability, while the rugged design ensures lasting durability in industrial applications.

More Information

brand

Avalue Technology Inc

Specifications

System Information
Other	OSD key at rear cover
Expansion	Option for Bi-Direction WIFI-6 interactive module for USB signal and image
Audio
Audio Interface	1x Line in
Speaker Output	2 x 5W
Certification
Certification Information	CE/ FCC Class A
External I/O
USB	USB type B connector for touch function
Panel
LCD Size	15.6\", 16:9
Display Type	WXGA
Resolution	1366x768
Pixel Pitch	0.252mm (H) x 0.252mm (V)
Luminance	300 cd/m²
Contrast Ratio	500
Viewing Angle	80° (U), 80° (D), 80° (L), 80° (R)
Response Time	8 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch supports up to 10 points
Touch Light Transmission	89%
I/O
HDMI	1x HDMI 1.4a (HDCP 1.3)
VGA	1x 15 PIN D-SUB VGA connector
Display Port	1x Display Port 1.2 (HDCP 1.3)
Mechanical & Environmental
Operating Temp.	-10°C ~ 50°C (option for -10°C ~ 60°C)
Storage Temp.	-20°C ~ 60°C
Operating Humidity	40°C @ 95% Relative humidity, non-condensing
Weight	3.2 Kg
Vibration Test	1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock Test	MIL-STD-810G, method 516.6, procedure I, functional shock=20G
IP Rating	Front panel IP65
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm; Panel mount with mounting kits
Dimension (W x L x D)	391.21 x 239.21 x 68 mm
Power Requirement	+12V DC in by DC Jack; Optional +9~36V DC in by phoenix connector
System Fan	Fanless
Construction - Front	Die casting with cover lens
Construction - Rear	Metal
Component
Adapter	Input: 100 ~ 240Vac/ 50 ~ 60Hz; Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
