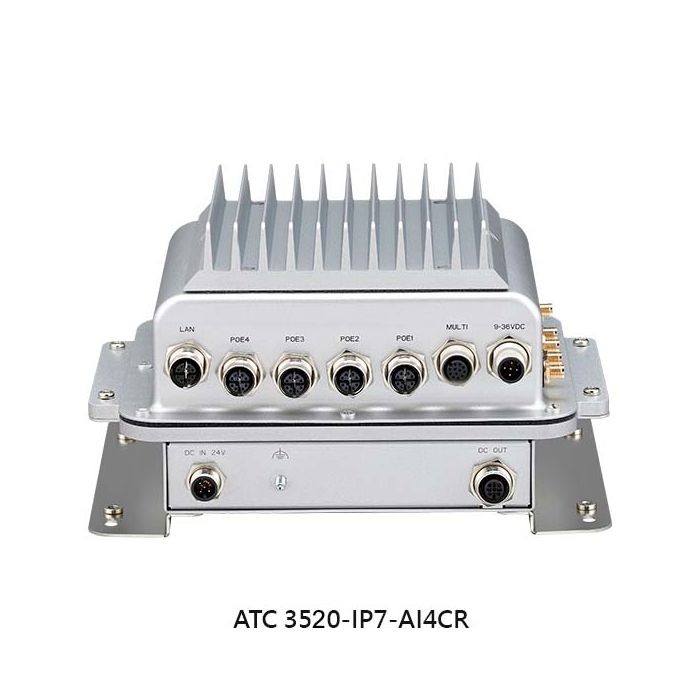

ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano
Discover the ATC3520-IP7-4C/AI4CR: Your Edge AI computing solution with NVIDIA Jetson Orin Nano, IP67 design, and certifications for industrial needs.
Key Features:
- Edge AI in-vehicle/rail computer
- Built-in NVIDIA Jetson Orin Nano SOM, up to 40(sparse) INT8 TOPS
- 4-Port GbE PoE+ for IP CAM/LiDAR sensors
- HEVC/H.265 hardware CODEC, 11x 1080p30 compute power (decoded)
- Wide range operating temperature of -30~70°C
- Rugged, fanless design with an IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9~36V DC-in with ignition control & OCP/OVP
- CE/FCC, UKCA, Emark/EN50155 certified
In stock
- SKU
- ATC3520-IP7-AI4CR/4C
Have a Question about this product?
Description / ATC3520-IP7-4C/AI4CR NVIDIA Jetson Orin Nano
AI has become an indispensable element within the realm of automated vehicle technologies. Equipped with the cost-effective and performance-efficient NVIDIA® Jetson Orin™ Nano SOM, the ATC 3520 can deliver an impressive 40 (sparse) INT8 TOPS, all while operating on a mere 15W of power. This capability makes it exceptionally well-suited for various AI-powered applications, including IoT gateway for AI, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, effectively boosting productivity and reducing the Total Cost of Ownership (TCO).
The ATC 3520 stands out as a fanless, compact, and IP67-certified computing solution. It boasts compatibility with power sources ranging from 9 to 36VDC, complete with IGN control, and offers four PoE+ ports for seamless IP camera deployment with support for 4Kp30/1080p60 resolution. Furthermore, the ATC 3520 incorporates a versatile array of peripheral ports, encompassing USB 3.2, isolated CANBus, RS232, Console, DI/DO, OTG, and HDMI, facilitating effortless connections to an extensive array of devices and sensors.
With the inclusion of 5G NR and Wi-Fi 5/6 modules, the ATC 3520 takes AI inference to the next level through integration with Cloud Service Providers (CSPs). Designed to excel in challenging environments, this computing powerhouse can operate within a wide temperature range of -30 to 70°C, and it meets the rigorous MIL-STD-810G military standard for vibration and shock resistance. In terms of regulatory compliance, the ATC 3520 adheres to CE/FCC Class A, UKCA, and Emark (E13)/EN50155 standards.
In summary, the ATC 3520 is the pinnacle of AI-enabled computing solutions, offering high-performance capabilities, rugged durability, and extensive connectivity options for a wide range of industrial applications.
Key Features:
- Edge AI in-vehicle/rail computer
- Built-in NVIDIA Jetson Orin Nano SOM, up to 40(sparse) INT8 TOPS
- 4-Port GbE PoE+ for IP CAM/LiDAR sensors
- HEVC/H.265 hardware CODEC, 11x 1080p30 compute power (decoded)
- Wide range operating temperature of -30~70°C
- Rugged, fanless design with an IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 5.1.1 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9~36V DC-in with ignition control & OCP/OVP
- CE/FCC, UKCA, Emark/EN50155 certified
More Information
| brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Description | AI has become an indispensable element within the realm of automated vehicle technologies. Equipped with the cost-effective and performance-efficient NVIDIA® Jetson Orin™ Nano SOM, the ATC 3520 can deliver an impressive 40 (sparse) INT8 TOPS, all while operating on a mere 15W of power. This capability makes it exceptionally well-suited for various AI-powered applications, including IoT gateway for AI, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, effectively boosting productivity and reducing the Total Cost of Ownership (TCO). The ATC 3520 stands out as a fanless, compact, and IP67-certified computing solution. It boasts compatibility with power sources ranging from 9 to 36VDC, complete with IGN control, and offers four PoE+ ports for seamless IP camera deployment with support for 4Kp30/1080p60 resolution. Furthermore, the ATC 3520 incorporates a versatile array of peripheral ports, encompassing USB 3.2, isolated CANBus, RS232, Console, DI/DO, OTG, and HDMI, facilitating effortless connections to an extensive array of devices and sensors. With the inclusion of 5G NR and Wi-Fi 5/6 modules, the ATC 3520 takes AI inference to the next level through integration with Cloud Service Providers (CSPs). Designed to excel in challenging environments, this computing powerhouse can operate within a wide temperature range of -30 to 70°C, and it meets the rigorous MIL-STD-810G military standard for vibration and shock resistance. In terms of regulatory compliance, the ATC 3520 adheres to CE/FCC Class A, UKCA, and Emark (E13)/EN50155 standards. In summary, the ATC 3520 is the pinnacle of AI-enabled computing solutions, offering high-performance capabilities, rugged durability, and extensive connectivity options for a wide range of industrial applications. Key Features:
|
