AV600-RH Military IP66 AI Edge GPU Computer

7StarLake

Military IP66 with D38999 connectors VIDIA RTX A1000/A2000, 2048/2560 CUDA

Key Features:

  • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
  • IP66 Chassis with D38999 connectors
  • Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
  • Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
  • NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
  • MIL-STD-461 EMI Filter18V~36V DC-Input
  • Extreme Temperature : -40°C to 60°C
  • Dimensions : 250(L) x 325 (W) x 100 (H) mm

In stock

SKU
AV600-RH

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AV600-RH Military IP66 AI Edge GPU Computer

AV600RH is driven by Intel® 13 Gen. Raptor Lake Processors. These processors are Intel’s industrial-grade processors. Raptor Lake provides an incremental set of crucial industrial features vital to the manufacturing and energy sector, along with a significant increase in instructions-per-cycle performance from the 12th Gen Core Mobile Processor. Moreover, Raptor Lake also comes with long-life hardware availability of up to 10 years and software support of up to 5 years.

AV600RH highlights its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connectors and full IP66 protection allow the system to withstand any kind of harsh environment. AV600RH supports extended temperature from -40°C to 55°C and MIL-STD-461 18V~36V DC-input Power supply which can protect the system from damages caused by sudden surges of voltage, thus further securing the reliability of its critical components and the system itself.

Key Features:

  • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
  • IP66 Chassis with D38999 connectors
  • Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
  • Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
  • NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
  • MIL-STD-461 EMI Filter18V~36V DC-Input
  • Extreme Temperature : -40°C to 60°C
  • Dimensions : 250(L) x 325 (W) x 100 (H) mm

By Request:

  • Frame Grabber: 4xCH HD-SDI
  • Discrete IO : 4xDI 4xDO
  • 10GbE : Dual 10GbE (Intel X710) Ethernet Ports
  • Dual Redundant MIL-STD-1553 connections
  • Dual ARINC 429 input connections
  • Conformal coating on electronics

More Information

brand 7StarLake
Specifications

System

CPU

13th Raptor Lake (H) i7-13800HE/HRE, 14xCores, 2.5(5.0) Ghz

Memory type

Dual channel DDR5 memory up to 64GB, 4800MT/s

CHIPSET



GPU

NVIDIA RTX™ A1000 /A2000 embedded graphics

- Standard MXM 3.1 Type A, B

- 2048 CUDA® 4GB RAM-A1000

- 2560 CUDA  8GB RAM -A2000


On board Storage NVMe Soldered 64GB SSD

Expansion Slot

1 x M.2(M-key,Type: 2280 , PCIe 3.0 x 1 )

2 x Mini PCIe Full size (USB / PCIe and 1 x micro SIM Card)

1 x PCIe/104(TypeII), 1 x FPE
TPM TPM 2.0 (SLB9665)

VIDEO INPUT

 4 Channel Capture module for 4 x SMA male connectors  (Optional)

Storage
SATA 2 x 2.5” SSD





Ethernet

Ethernet (Internal)

2 x 10/100/1000 Ethernet Ports

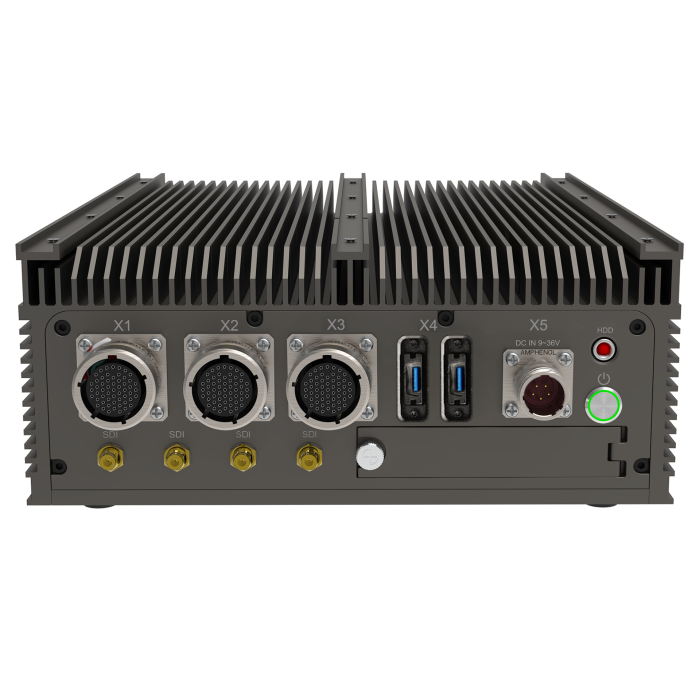

Front I/O
X1 1 x DVI , with D38999 connector
X2 1 x DVI , with D38999 connector
X3 2 x GLAN + 3 x USB 2.0, with D38999 connector
X4 2x USB 3.0
DC-in 1 x DC-in , with D38999 connector
LED 1 x SSD/HDD LED indicator
switch 1 x IP65 power button, with LED indicator

Power

Power input

MIL-STD -461 18V~36V DC-Input

Operating System

OS

Windows® 11-Pro / Linux (support by request)

Physical

Dimension

250(L) x 325 (W) x 100(H)mm

Weight

10.5 Kg

Chassis

Aluminum Alloy





Environmental

Green Product

RoHS, WEEE compliance

Operating Temp.

-40 to 60°C

Storage Temp.

-40 to 85°C

Relative Humidity

5% to 95%, non-condensing

MIL-STD-810 Specifications (Operating)

Method 502.5

Low Temperature

-20°C, 4 hours, ±3°C

Procedure 2

Method 501.5

High Temperature

+60°C, 4 hours, ±3°C

Procedure 2

Method 507.5

Humidity

85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles.

Method 514.6

Vibration

5-500Hz, Vertical 2.20Grms, 40mins x 3axis.

Method 516.6

Shock

20 Grms, 11ms, 3 axes.

MIL-STD-810 Specifications (None-Operating)

Method 502.5

Low-Temperature Storage



-33°C, 4 hours, change rate:≦20°C/ Hour

-15°C, 72hours (By request)

Procedure 1

Method 501.5

High-Temperature Storage

+71°C, 4 hours, change rate:≦20°C/ Hour

+63°C, 240 hours (By request)

Procedure 1

Method 514.6

Vibration

5-500Hz, Vertical 2.20Grms, 40mins x 3axis.

Method 516.6

Shock

20 Grms, 11ms, 3 axes.
MIL-STD-461
Conducted Emissions CE102 basic curve 10kHz – 30MHz
Power Leads
Conducted Emissions RE102-4 1.5HMz - 30MHz – 5GHz
Electric Field
Radiated Susceptibility RS103 1.5 MHz – 3GHz, 50 V/m equal for all frequencies
2MHz – 80MHz, 50 V/m equal for all frequencies
Electric Field 80MHz – 3GHz, 50 V/m equal for all frequencies
3GHz – 5GHz, 50 V/m equal for all frequencies
Electrostatic Discharge EN 61000-4-2 Air DISCHARGE: 8 Kv, Contact discharge : 6kV
Electromagnetic compatibility EN61000-4-4 Signal and DC Net: 1 kV
Electromagnetic compatibility EN61000-4-5 Lead vs. ground potential 1Kv, ignal und DC Net: 1 kV
Radio disturbance EN55022 Class A
Electromagnetic compatibility EN61000-4-3 10V/m
Electromagnetic compatibility EN 61000-4-5 Lead vs. ground potential 1Kv, ignal und DC Net: 0.5 kV
Designed to Meet Items ( Options )
CS101, CS114, CS115, CS116
CE106, RE103, RS101
MIL-STD-1275 Steady State 20V-33V
  Surge Low 18V/500ms
  Surge High 100V/500ms
Description

AV600RH is driven by Intel® 13 Gen. Raptor Lake Processors. These processors are Intel’s industrial-grade processors. Raptor Lake provides an incremental set of crucial industrial features vital to the manufacturing and energy sector, along with a significant increase in instructions-per-cycle performance from the 12th Gen Core Mobile Processor. Moreover, Raptor Lake also comes with long-life hardware availability of up to 10 years and software support of up to 5 years.

AV600RH highlights its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connectors and full IP66 protection allow the system to withstand any kind of harsh environment. AV600RH supports extended temperature from -40°C to 55°C and MIL-STD-461 18V~36V DC-input Power supply which can protect the system from damages caused by sudden surges of voltage, thus further securing the reliability of its critical components and the system itself.

Key Features:

  • MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
  • IP66 Chassis with D38999 connectors
  • Intel 13th Gen. Raptor Lake (H) i7-13800HE/HRE, 14C , 2.5/5.0 GHz Processor
  • Up to 64GB DDR5 SO-DIMM, non-ECC and ECC
  • NVIDIA RTX A1000/A2000, 2048/2560 CUDA,4GB/8GB GDDR6 RAM
  • MIL-STD-461 EMI Filter18V~36V DC-Input
  • Extreme Temperature : -40°C to 60°C
  • Dimensions : 250(L) x 325 (W) x 100 (H) mm

By Request:

  • Frame Grabber: 4xCH HD-SDI
  • Discrete IO : 4xDI 4xDO
  • 10GbE : Dual 10GbE (Intel X710) Ethernet Ports
  • Dual Redundant MIL-STD-1553 connections
  • Dual ARINC 429 input connections
  • Conformal coating on electronics
