AX61120TB - 1U Rackmount Chassis

PICMG 1.3 SBC structure with 2 expansion slots

Internal two 3.5" HDD drive bays

Slim-line CD-ROM disk bay for ease of system installation

Special cooling system design for supporting Intel® Pentium® 4 processor

In stock

SKU
AX61120TB - 1U Rackmount Chassis

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AX61120TB - 1U Rackmount Chassis

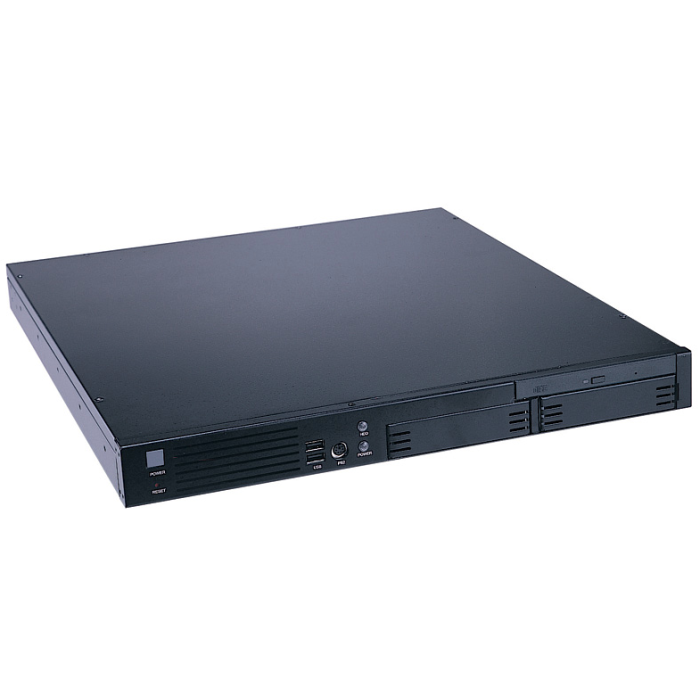

The AX61120TB is a slim 1U-high rackmount industrial computer chassis, supports up to two PCI expansion slots.

More Information

Specifications
Height
  • 1U
Expansion
  • 2-slot
Drive Bay
  • 2 x 3.5" HDD drive bay
Cooling System
  • 3 x 4 cm ball bearing fan
System Board
  • Full-size SBCs
Backplane Options
  • ATX6022/3VP2, FAB102, FAB209
I/O Interface
  • 2 x USB
  • 1 x PS/2 6-pin
  • 1 x slim-line CD-ROM
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power Supply
  • 1U type
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Dimensions
(W x D x H)
  • 482.6 x 500 x 44.3 mm (19" x 19.7" x 1.75")
Weight (net/gross)
  • 9.8 kg (21.6 lb)/10.5 kg (23.15 lb)
Certifications
  • CE


Description

The AX61120TB is a slim 1U-high rackmount industrial computer chassis, supports up to two PCI expansion slots.
pdf
Data sheet
