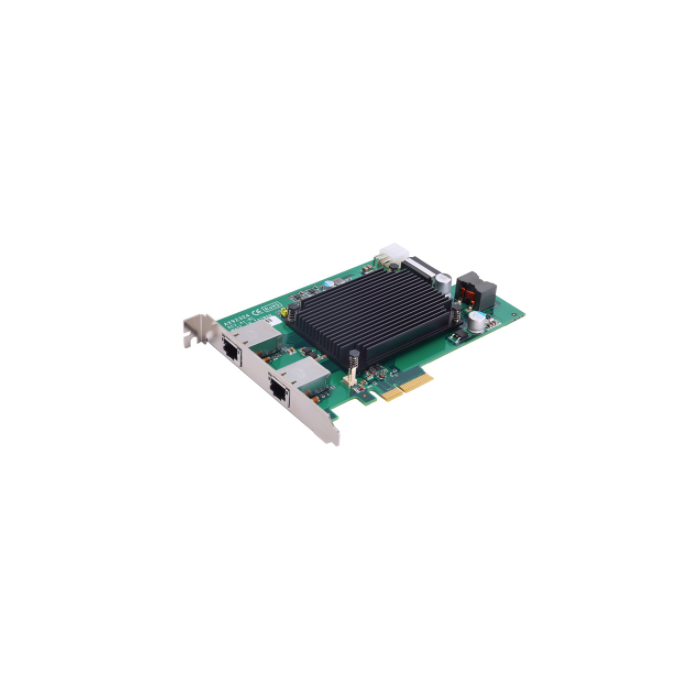

AX92324 - 2-port 10GbE PoE PCI Express Card

2-port 10GbE PoE PCI Express Card

In stock

SKU
AX92324 - 2-port 10GbE PoE PCI Express Card

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / AX92324 - 2-port 10GbE PoE PCI Express Card

Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate

Supports 15.5KB Jumbo Frame and IEEE 1588

Compliant with IEEE802.3at to deliver 25.5W per port

PCI Express x4 compliant

PoE power on/off via Power Manager software and API

Operating temperature range from 0°C to 55°C

More Information

Specifications
Bus Type
  • PCI Express x4
Connector
  • 2 GbE LANs with Intel® X550-AT2 controller; supports 15.5KB jumbo frame and IEEE 1588
  • IEEE 802.3at compliant; each port delivers up to 30W at 54 VDC
  • 10Gbps/*5Gbps/*2.5Gbps/1Gbps/100Mbps (*Linux only)
Power Connector
  • 6-pin ATX power connector
Power Requirements
  • Power from PCIe slot (max. 20W PoE power output)
  • 2.1A @ +12V
  • 1.2A @ +3.3V
  • Power from ATX power connector (max. 60W PoE power output)
  • 6A @ +12V or 3A @ +24V
  • 1.2A @ +3.3V (from PCIe slot)
Operating Temperature
  • 0°C to +55°C (+32°F to +131°F) (with air flow)
Relative Humidity
  • 10% to 95%, non-condensing
Dimensions
  • 168 x 111 mm
Certifications
  • CE
Software
  • N/A
OS
  • Windows® 7/10, Linux
Description

Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate

Supports 15.5KB Jumbo Frame and IEEE 1588

Compliant with IEEE802.3at to deliver 25.5W per port

PCI Express x4 compliant

PoE power on/off via Power Manager software and API

Operating temperature range from 0°C to 55°C
pdf
Data sheet
