Shop B4BE[E]-6-60 - 4G/5G Bracket Antenna

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

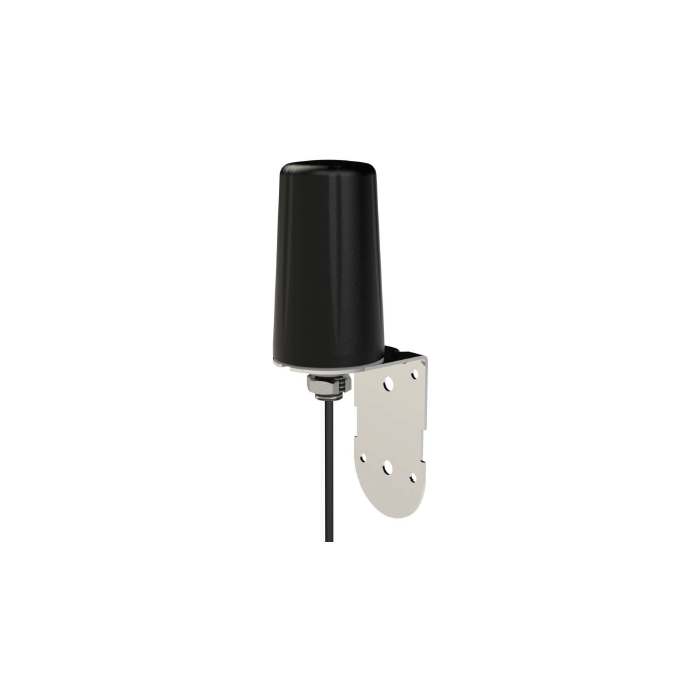

The B4BE[E] antenna is a cost effective omnidirectional broad band antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.

In stock

SKU: B4BE[E]-6-60 - 4G/5G Bracket Antenna

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / B4BE[E]-6-60 - 4G/5G Bracket Antenna

Cost Effective 2G/3G/4G/5G coverage

Wall, mast or panel mount

Integrated low loss cable -std length 2m or 5m

More Information

Specifications	Frequency Range (MHz) 617-960 / 1710-6000 Operational Band 2G/3G/4G/5G Peak Realised Gain: Isotropic* 698-960MHz 2dBi 1710-2700 MHz 3.5dBi 3400-3800MHz 5dBi 4.9-6000Mhz 7dBi VSWR <2.5:1 Nominal Radiated Effi ciency* > 70% Polarisation Vertical Pattern Omni-directional Impedance 50Ω Max Input Power (W) 30
Description	Cost Effective 2G/3G/4G/5G coverage Wall, mast or panel mount Integrated low loss cable -std length 2m or 5m

Data sheet
