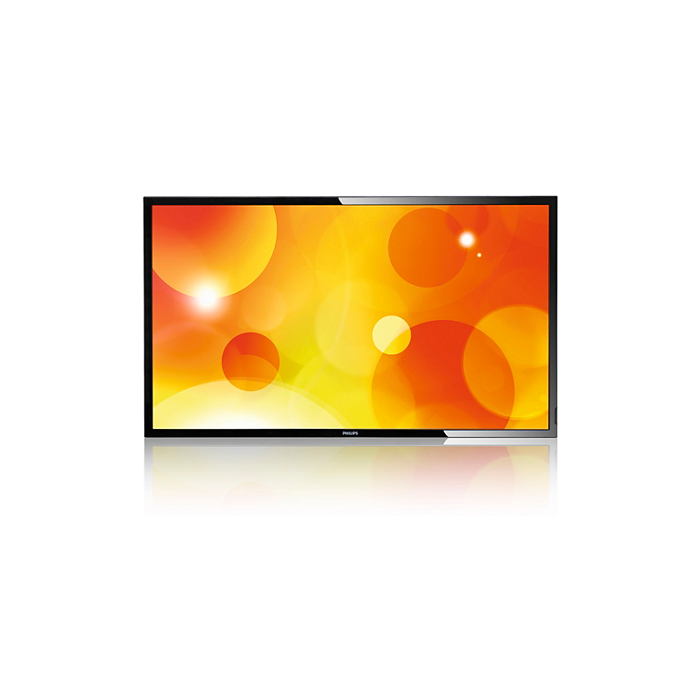

BDL3230QL 32" Full HD Display

Diagonal screen size (metric)

80  cm

Diagonal screen size (inch)

31.5  inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350  cd/m²

Contrast ratio (typical)

1400:1

Dynamic contrast ratio

500,000:1

Response time (typical)

8  ms

Aspect ratio

16:9

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.36375 x 0.36375 mm

Display colors

16.7 Million

DICOM

Clinical D-image

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 800 x 600, 56, 60, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1360 x 768, 60Hz
• 1366 x 768, 60Hz
• 1440 x 900, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz

Video formats

• 480i, 60Hz
• 480p, 60Hz
• 576p, 50Hz
• 576i, 50Hz
• 720p, 50, 60Hz
• 1080i, 50, 60Hz
• 1080p, 50, 60Hz

Connectivity

Video input

• DVI-D
• HDMI
• Component (RCA)
• Composite (RCA)
• VGA (Analog D-Sub)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

Audio Left/Right (RCA)

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Other connections

USB

Convenience

Memory

• Internal memory access
• 8GB eMMC

Screen saving functions

Pixel Shift

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Switch on delay
• Switch on status
• Wake up on LAN

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45
• One Wire (HDMI-CEC)

Signal Loop Through

• RS232
• IR Loopthrough

Dimensions

Bezel width

11.9 (TLR) / 17.2 (B) mm

Set Width

726.5  mm

Set Height

425.4  mm

Set Depth

63.6  mm

Set Width (inch)

28.6  inch

Set Height (inch)

16.75  inch

Set Depth (inch)

2.5  inch

VESA Mount

100x100mm, 200x200 mm, M4

Product weight

5.20  kg

Product weight (lb)

14.74  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Power

Mains power

AC 100 - 240V, 50 - 60Hz

Standby power consumption

<0.5 W

Consumption (Typical)

57  W

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• 3G2
• 3GP
• ASF
• ASX
• AVI
• DAT
• DivX
• F4V
• FLV
• M2TS
• M4V
• MK3D
• MKV
• MOV
• MP4
• MPE
• MPEG
• MPG
• MTS
• QT
• TRP
• TS
• TTS
• VOB
• WEBM
• WMV
• Xvid

USB Playback Picture

• BMP
• GIF
• JPEG
• JPG

USB Playback Audio

• AAC
• AC3
• AIF
• AIFF
• AMR
• EC3
• M4A
• MP3
• OGA
• OGG
• WAV
• WMA

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• VGA cable
• Remote Control
• Batteries for remote control
• User manual on CD-ROM
• Quick start guide

Miscellaneous

Warranty

3 year warranty
