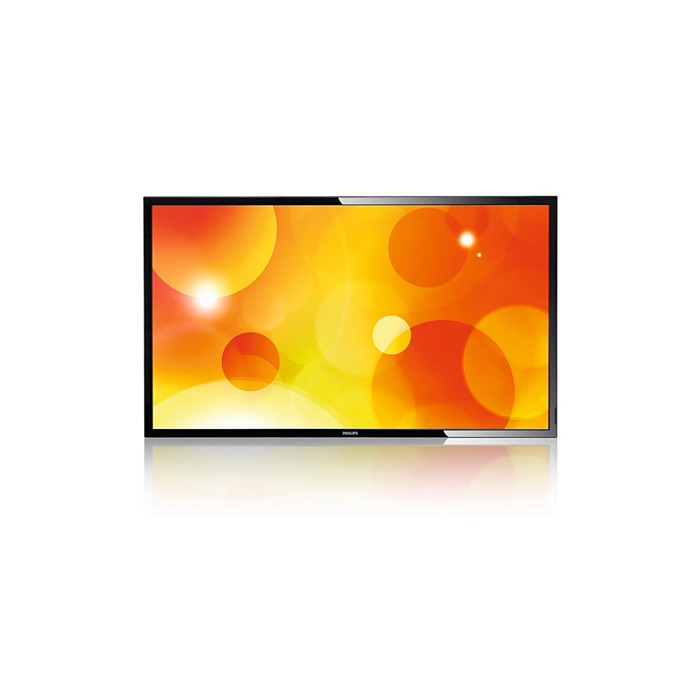

BDL4830QL 48" Full HD Display

Diagonal screen size (metric)

120.9  cm

Diagonal screen size (inch)

47.6  inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350  cd/m²

Contrast ratio (typical)

4000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

8  ms

Aspect ratio

16:9

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.549 x 0.549 mm

Display colors

16.7 Million

DICOM

Clinical D-image

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 800 x 600, 56, 60, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1360 x 768, 60Hz
• 1366 x 768, 60Hz
• 1440 x 900, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz

Video formats

• 480i, 60Hz
• 480p, 60Hz
• 576p, 50Hz
• 576i, 50Hz
• 720p, 50, 60Hz
• 1080i, 50, 60Hz
• 1080p, 50, 60Hz

Connectivity

Video input

• DVI-D
• HDMI
• Component (RCA)
• Composite (RCA)
• VGA (Analog D-Sub)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

• Audio Left/Right (RCA)
• 3.5mm jack

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Other connections

USB

Convenience

Memory

• Internal memory access
• 8GB eMMC

Screen saving functions

Pixel Shift

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Wake up on LAN
• Switch on delay
• Switch on status

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45
• One Wire (HDMI-CEC)

Signal Loop Through

• RS232
• IR Loopthrough

Dimensions

Bezel width

11.9 (TLR) / 14.7 (B) mm

Set Width

1081.8  mm

Set Height

623.4  mm

Set Depth

59.9  mm

Set Width (inch)

42.59  inch

Set Height (inch)

24.54  inch

Set Depth (inch)

2.36  inch

VESA Mount

400 x 400 mm, 200x200 mm, M6

Product weight

11.52  kg

Product weight (lb)

25.4  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Power

Consumption (On mode)

115 W (EnergyStar 6.0 test method)

Mains power

100 ~ 240 VAC

Standby power consumption

<0.5W

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• 3G2
• 3GP
• ASF
• ASX
• AVI
• DAT
• DivX
• F4V
• FLV
• M2TS
• M4V
• MK3D
• MKV
• MOV
• MP4
• MPE
• MPEG
• MPG
• MTS
• QT
• TRP
• TS
• TTS
• VOB
• WEBM
• WMV
• Xvid

USB Playback Picture

• BMP
• GIF
• JPEG
• JPG

USB Playback Audio

• AAC
• AC3
• AIF
• AIFF
• AMR
• EC3
• M4A
• MP3
• OGA
• OGG
• WAV
• WMA

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• VGA cable
• Remote Control
• Batteries for remote control
• User manual on CD-ROM
• Quick start guide

Miscellaneous

Warranty

Global: 3 years
