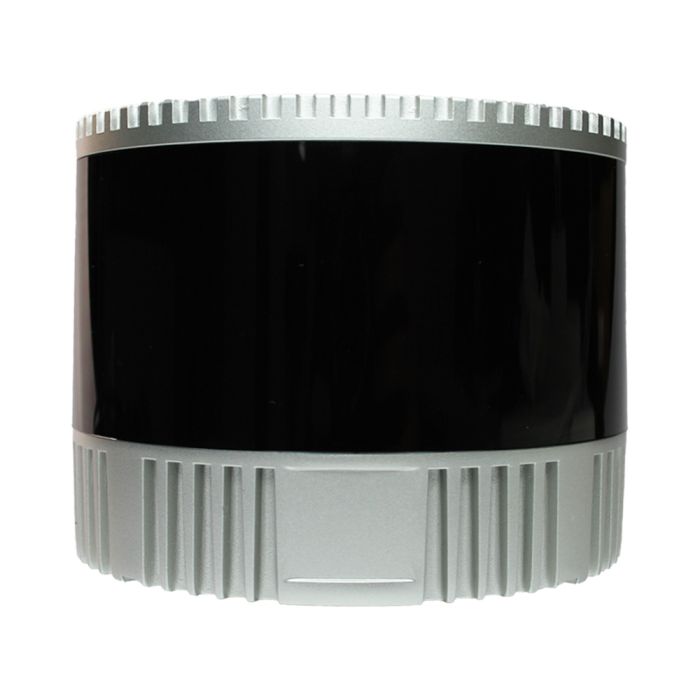

C32/16 32/16-Line Mechanical LiDAR
360° 3D High Accuracy Perception Mechanical LiDAR
Key Features:
- 360° 3D High Accuracy Perception
- Up to 150m detection range
- Realizes 360° three-dimensional fast scanning with dense 32/16 beam laser
- Chip by LSLiDAR
In stock
- SKU
- C32/16
Have a Question about this product?
Description / C32/16 32/16-Line Mechanical LiDAR
360° 3D High Accuracy Perception
Highly Integrated Module Design Provides the Most Stable and Reliable Performance
Realizes 360° three-dimensional fast scanning with dense 32/16 beam laser
Vertical FOV 31°(-16°-15°) / 30°(-16°~14°)
Vertical Resolution Uniform 1° / 2°
Chip by LSLiDAR
C32 adopts the in-house LiDAR chip, which ensures the excellent product performance and high cost performance of the product
Market Applications
- Mapping
- Drone/UAV
- Industrial
- Infrastructure
- Robotics
- Security
More Information
| brand | LSiLIDAR |
|---|---|

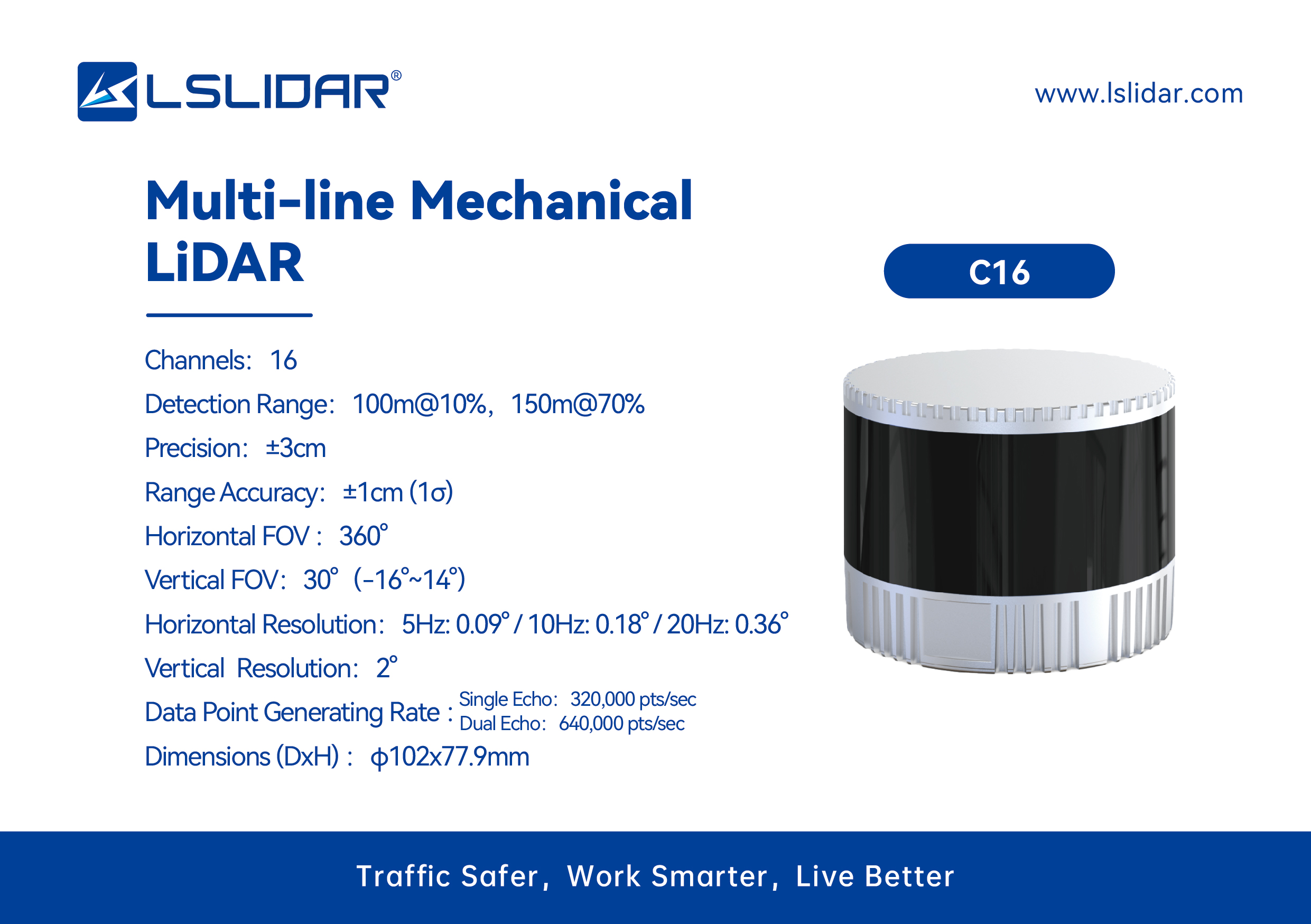

| Specifications | C16 Vertical FOV
30°（-15° ~ 15°） Vertical Resolution
2° Horizontal Resolution
5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36° Detection Range
70m / 120m / 150m Range Accuracy
±3cm Dimensions
102 x 77.9 mm IP Grade
IP67 Data Points
600,000 pts/s @Single echo 1,200,000 pts/s @Dual echo Input Voltage
9V~36V DC
C32 Vertical FOV
31°（-16° ~ 15°） Vertical Resolution
1° Horizontal Resolution
5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36° Detection Range
70m / 120m / 150m Range Accuracy
±3cm Dimensions
102 x 77.9 mm IP Grade
IP67 Data Points
600,000 pts/s @Single echo 1,200,000 pts/s @Dual echo Input Voltage
9V~36V DC |
| Description |
Realizes 360° three-dimensional fast scanning with dense 32/16 beam laser Vertical FOV 31°(-16°-15°) / 30°(-16°~14°)
Chip by LSLiDAR C32 adopts the in-house LiDAR chip, which ensures the excellent product performance and high cost performance of the product
Market Applications
|
