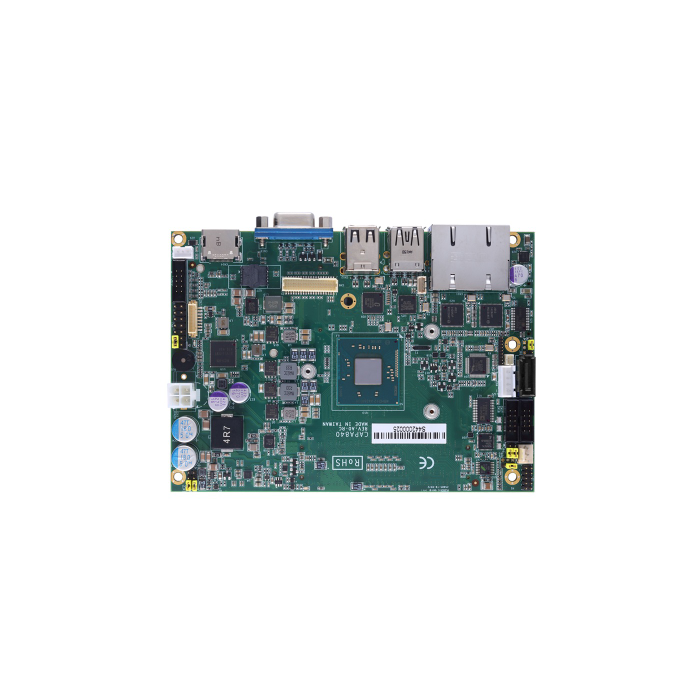

Shop CAPA840 Atom E3845/E3827 CPU

Axiomtek

3.5" Embedded SBC with Intel® Atom® Processor E3845/E3827, LVDS/VGA/HDMI, Dual LANs, Audio and ZIO

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / CAPA840 Atom E3845/E3827 CPU

Intel® Atom® processor E3845/E3827

2 DDR3L-1066/1333 SO-DIMM, up to 8GB

4 USB 2.0 ports and 1 USB 3.0 port

2 COM ports

Brand

Axiomtek

Specifications

CPU	Intel® Atom® processor E3845 quad-core, E3827 dual-core onboard
Chipset	SoC integrated
System Memory	2 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS	AMI
COM	1 x RS-232/422/485 with +5V/+12V powered 1 x RS-232
USB	4 x USB 2.0 1 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x VGA 1 x LVDS 1 x HDMI
Digital I/O	8 channels IN/OUT programmed
Audio	MIC-in/Line-in/Line-out
Storage	1 x mSATA 1 x SATA-300
Expansion	1 x Full-SizePCI Express Mini Card 1 x Full-Size PCI Express Mini Card (USB only) 1 x USB, 1x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector
Others	SMBus TPM 1.2
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector +10V ~ 24V DC-in AT Auto Power On function supported
Power Requirements	Intel® Atom® E3845 @ 1.91 GHz, 4 GB DDR3L Max. RMS: +24V @ 0.68A Intel® Atom® E3827 @ 1.75 GHz, 4 GB DDR3L Max. RMS: +24V @ 0.6A
Watchdog Timer	255 levels, 1 ~ 255 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE

Description

Intel® Atom® processor E3845/E3827

2 DDR3L-1066/1333 SO-DIMM, up to 8GB

4 USB 2.0 ports and 1 USB 3.0 port

2 COM ports
