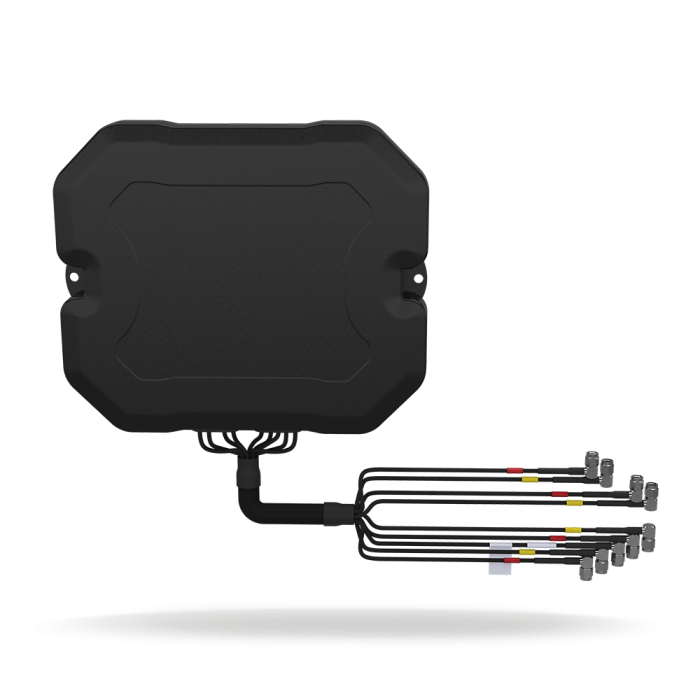

CASEANT[X]4-6-60-[X] 4×4 MiMo 4G/5G Case Mount Antenna
The CASEANT[[X]4-6-60-[X] is a 4x4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.
Key Features:
- Adhesive mount antenna designed for easy installation in cases
- Works when the case is open or closed when mounted on the lid
- 4x4 MiMo 617-960/1427-6000MHz
- Up to 4x4 MiMo WiFi 6e
- Optional active GPS/GNSS - L1 or L1/L5
- Loomed cables with right-angled connectors for easy installation
In stock
- SKU
- CASEANT[X]4-6-60-[X]
Have a Question about this product?
Description / CASEANT[X]4-6-60-[X] 4×4 MiMo 4G/5G Case Mount Antenna
The Panorama CASEANT[[X]4-6-60-[X] range is a 4x4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.
The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed. CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e.
The antenna is supplied with integrated low-loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right-angled connectors for easy installation.
More Information
| brand | Panorama Antennas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | The Panorama CASEANT[[X]4-6-60-[X] range is a 4x4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases. The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed. CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e. The antenna is supplied with integrated low-loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right-angled connectors for easy installation.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
