Axiomtek

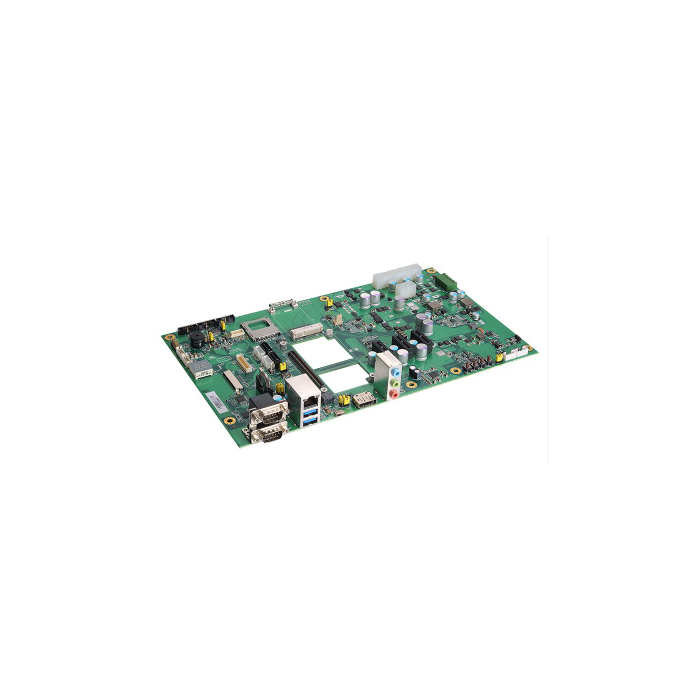

COM Express Type 10 Development Baseboard

In stock

SKU: CEB94017 - Development Baseboard

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / CEB94017 - Development Baseboard

COM Express Type 10 baseboard

2 SATA-300 and SD card slot

1 PCI Express Mini Card slot

5 USB 2.0 and 2 USB 3.0

Port 80 display for debugging

More Information

Brand

Axiomtek

Specifications

CPU	On the module
Chipset	On the module
System Memory	On the module
BIOS	On the module
Serial	2 x TX/RX 2 x RS-232/422/485
USB	4 x USB 2.0 (wafer connector) 2 x USB 3.0 1 x micro USB (USB 2.0)
Ethernet	1 x 10/100/1000 Mbps
Display	1 x DisplayPort 1 x 40-pin LVDS / 1 x 8-pin inverter connector 1 x eDP 1 x jumper for LVDS panel 3.3V/5V/12V voltage selection 1 x jumper selection LVDS/eDP
GPIO	4-CH in & 4-CH out
Audio	1 x Audio jack
Storage	2 x SATA 1 x SD card slot
Expansion	1 x Full-size PCI Express Mini Card slot 3 x PCIe x1
Others	Port 80 Display Dual 7 segments port 80 display for convenient debugging purpose through LPC interface
Battery	Lithium 3V/195mAH
Power Input	DC input: 5V - 20V (max @ 10A), support single power source and VCC_RTC from COM Express connector AT/ATX mode support
Watchdog Timer	On the module
Hardware Monitoring	Yes
Operating Temperature	-40ºC to +85ºC (-40ºF to +185ºF)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	N/A
Dimensions	293.4 x 171.5 mm
Board Thickness	1.6 mm
Certifications	CE

Description

COM Express Type 10 baseboard

2 SATA-300 and SD card slot

1 PCI Express Mini Card slot

5 USB 2.0 and 2 USB 3.0

Port 80 display for debugging
