Axiomtek

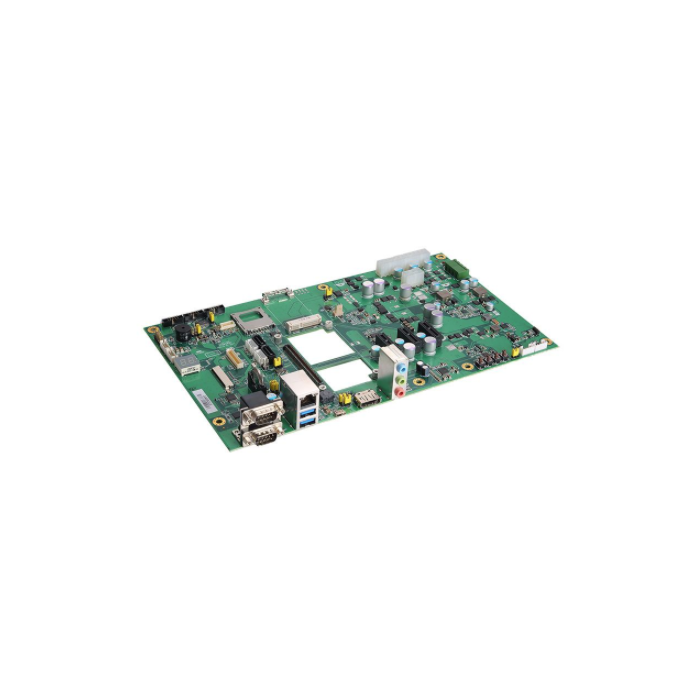

COM Express Type 7 Development Baseboard

In stock

SKU: CEB94701 - Development Baseboard

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / CEB94701 - Development Baseboard

Two 10GBASE-KR SFP+ ports

2 SATA-600

VGA

4 USB 3.0

2 PCI Express Mini Card slots

2 RS-232/422/485

More Information

Brand

Axiomtek

Specifications

CPU	On the module
Chipset	SoC integrated
System Memory	On the module
BIOS	AMI
Serial	2 x RS-232/422/485 2 x TX/RX
USB	4 x USB 3.0/2.0
Ethernet	1 x 10/100/1000 Mbps 2 x 10GBASE-KR (SFP+)
Display	1 x VGA
GPIO	4-CH in & 4-CH out
Audio	Buzzer
Storage	2 x SATA-600
Expansion	2 x Full-size PCI Express Mini Card slot (one for optional) 1 x PCIe x16 1 x PCIe x8 1 x PCIe x4 1 x PCIe x1
Others	1 x I2C
Battery	Lithium 3V/220 mAH
Power Input	1 x 24-pin ATX connector 1 x 4-pin 12V connector (for module power supply)
Watchdog Timer	On the module
Hardware Monitoring	Yes
Operating Temperature	-20ºC to +70ºC (-4ºF to +158ºF)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	N/A
Dimensions	244 x 305 mm
Board Thickness	1.6 mm
Certifications	CE

Description

Two 10GBASE-KR SFP+ ports

2 SATA-600

VGA

4 USB 3.0

2 PCI Express Mini Card slots

2 RS-232/422/485
