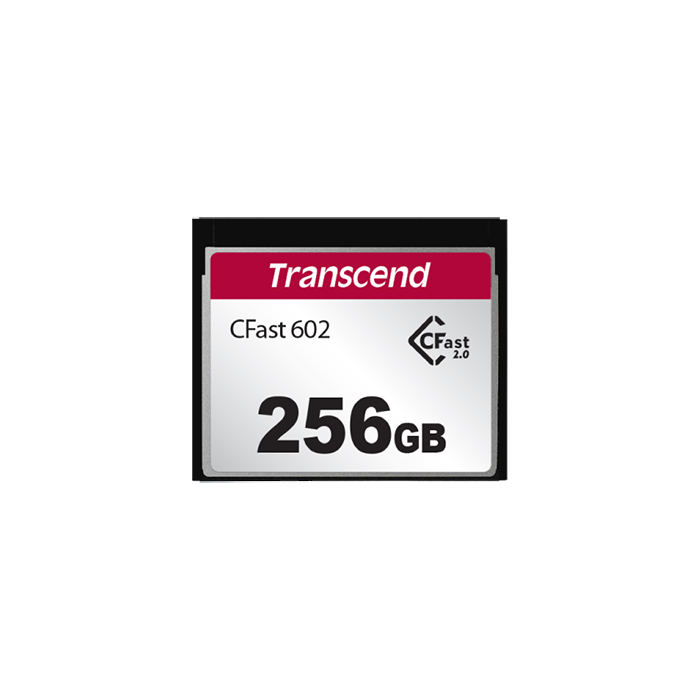

CFX602 & CFX602I CFast Cards

Transcend

Transcend CFast 2.0 CFX602 Memory Cards boast high data transfer rates and extra large storage capacity, perfect for serving as bootable disks.

In stock

SKU
CFX602 & CFX602I CFast Cards

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / CFX602 & CFX602I CFast Cards

Transcend CFast 2.0 CFX602 Memory Cards have a SATA III interface and extra large storage capacity, making them ideal for use as bootable discs. The CFX602I's wide-temperature capability (-40°C to 85°C) provides superior stability in harsh environments.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with CFast specification 2.0
  • MLC NAND flash
  • Durability: 10,000 insertion/removal cycles
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Built-in ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • Wear-Leveling
  • Power-saving DevSleep (Device Sleep) mode

More Information

brand Transcend
Specifications

Appearance
Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Form Factor
  • Compact flash card

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Flash Type
  • MLC NAND flash
Capacity
  • 8 GB/
  • 16 GB/
  • 32 GB/
  • 64 GB/
  • 128 GB/
  • 256 GB

Operating Environment
Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard Temp.
    -5°C (23°F) ~ 70°C (158°F)
    •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)

Power
Power Consumption (Max.) 2.15 watt(s)

Performance
Read Speed (Max.) up to 500 MB/s
Write Speed (Max.) up to 350 MB/s
Mean Time Between Failures (MTBF) 1,000,000 hour(s)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
Description

Transcend CFast 2.0 CFX602 Memory Cards have a SATA III interface and extra large storage capacity, making them ideal for use as bootable discs. The CFX602I's wide-temperature capability (-40°C to 85°C) provides superior stability in harsh environments.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with CFast specification 2.0
  • MLC NAND flash
  • Durability: 10,000 insertion/removal cycles
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Built-in ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • Wear-Leveling
  • Power-saving DevSleep (Device Sleep) mode
