Cabinet Mount Fanless PC with Intel Xeon E-2278GEL and 8th & 9th Gen Intel Core i7/i5/i3 Processors Two PCIe x4
In stock
SKU
CMC 300-F2x
Have a Question about this product?
Description /
CMC 300-F2x Cabinet Mount Fanless PC
The CMC 300-F2x industrial fanless PC series has been purposely designed to be installed in the plate of the control cabinet, or the rear plate. The fanless PC is cut into a suitable cut-out in the control cabinet, with its heatsink outside the cabinet with IP65 protection. CMC 300-F2x has a high-performance Intel Xeon grade CPU with two PCIe x4 expansion and two external 2.5” HDD trays. This product is made for maintenance conditions in the industries such as wind power, charging stations, etc.
Fanless system design
Intel Xeon E-2278GEL and 8th & 9th Gen Intel Core i7/i5/i3 LGA socket-type processors
2 x Gigabit Ethernet
2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485
IP65 protection on the outside heatsink
1 x DVI-D display output
2 x DDR4 up to 64GB
1 x mini-PCIe for storage device
2 x Easy-access 2.5” SSD trays
Support power input 24 VDC
More Information
Brand
Nexcom
Specifications
CPU Support
Support Intel® Xeon® E-2278GELSupport 8th & 9th Gen Intel® Core™ i7/i5/i3 LGA socket type: - Intel® Core™ Core i3-8100T, i5-8500T, i7-8700T - Intel® Core™ Core i3-9100TE, i5-9500TE, i7-9700TESupport up to TDP 35W CPU
PCH
Intel® C246 PCH
Main Memory
2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-buffered
I/O Interface Status LEDs
PowerSATA (SSD)
I/O Interface
DC power input connector: 3-pin Phoenix contact terminal blocks COM: 1 x RS232/422/485Display: 1 x DVI-D port Ethernet: 2 x RJ45 - LAN: 1 x Intel® I219-LM PHY LAN and 1 x Intel® I210-IT Gigabit LAN - Ethernet interface: 10/100/1000 Mbps - Support wake up on LAN2 x USB 2.0 ports2 x USB 3.0 ports2-Pin remote power on/off 1 x Easy-access RTC battery socket
Storage Device
2 x Easy-access 2.5” SSD trays1 x mini-PCIe slot for storage
Expansion
Two PCIe x4 expansion slots from PCIe x8 Riser card
Power Requirements
DC power input: - Input voltage: 18VDC -5% to 24VDC +10%, 7.5A - Reverse polarity protection
Environment
Operating temperature: - 0°C to 55°C with natural convection - 0°C to 60°C with mild forced airflow

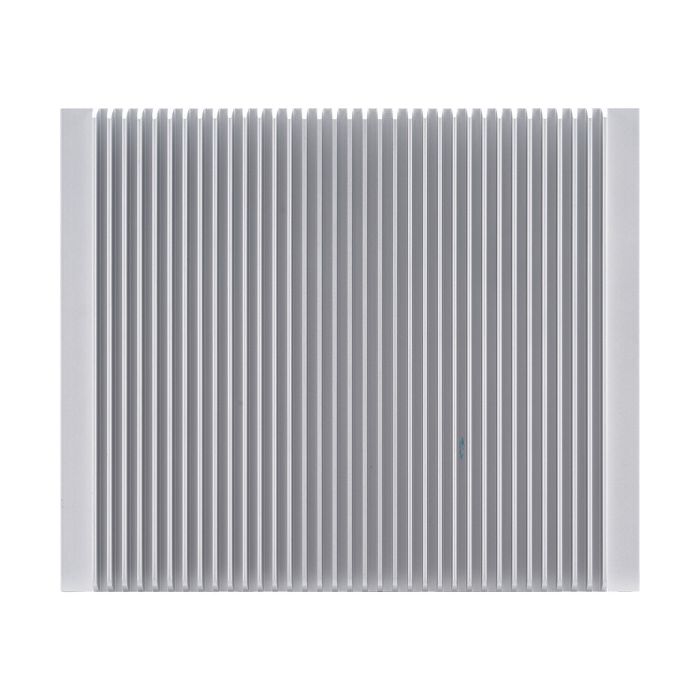

Aluminium extrusion heat sink and iron-nickel plating housing Back cover with reserved RAID card heatsink holeIP65 protection for the outside heatsink
Certifications
CE (EN61000-6-2/EN61000-6-4)FCC Class A
OS Support List
Windows 10 64-bit
