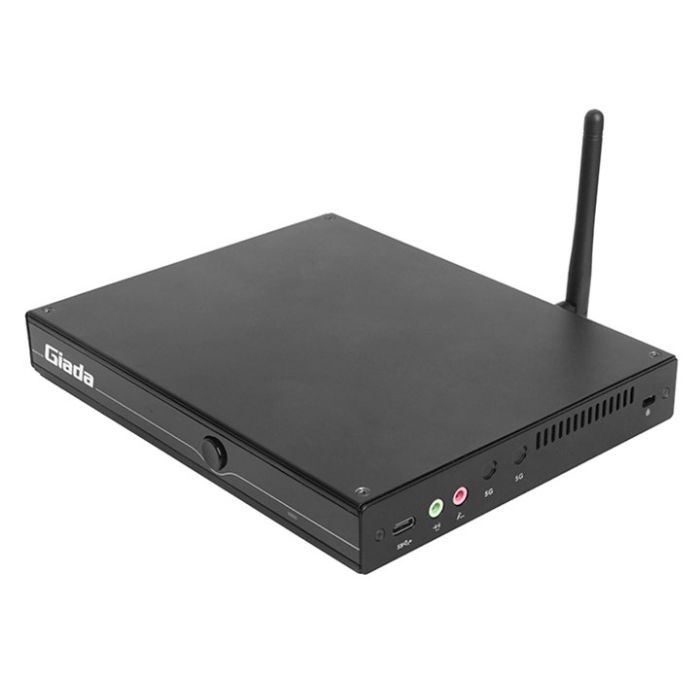

The Giada Tech D611 is an 11th gen Intel Digital Signage Player supporting 8K displays. Based on the Iris Xe Graphics GPU it provides 1 x Display Port - 8K @ 60Hz , 2 x HDMI – 4K @ 60Hz and multiple USB + RS232 housed in 190 x 149 x 26mm. Support for Wifi 6 and onboard Sim slot allows easy integration of LTE module for complete processing/communication package.
1 x DP, 2 x HDMI, Supporting 8K Display 2 x SO-DIMM DDR4 Memory, Up to 32GB 1 x M-key M.2 (2242/2280) for SSD Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access
More Information
Brand
Giada Technology Inc.
Specifications
D611-N1-1115G440M0G
D611-N1-1135G740M0G
D611-N2-1165G740M0G
Processor
CPU
Intel®Core™ i3-1115G7
Intel®Core™ i5-1135G7
Intel®Core™ i7-1165G7
BIOS
AMI Source Code
Chipset
SOC
Memory
Type
DDR4-3200MHz
Socket
2 x SO-DIMM
Max Size
32GB
Graphics
GPU
Intel® 11th UHD Graphics
Intel® Iris Xe Graphics
Graphic Engine
DirectX 12, OpenGL 4.5, OpenCL 2.2
8K60 12b 4:2:0 HEVC/VP9/SCC
DP
1 x DP (Max.7680 x 4320 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @60Hz)
Network
Controller
Realtek 8111H Gigabit Ethernet
Interface
1 x RJ45
I/O
USB
1 x USB3.2 Gen2, 2 x USB2.0
USB Type-C
1 x USB Type-C3.2 Gen2
Serial Port
1 x RS232
Audio
1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
Wireless
1 x E-key M.2 (2230) for WiFi/BT
1 x B-key M.2 (3052) for 3G/4G/5G
SIM
1 x SIM Slot
TPM
Infineon TPM 2.0
Storage
M.2
1 x M-key M.2 (2242/2280) for SATA / NVMe
JAHC Tech
WatchDog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
Remote Control
By IR Controller for Power On
Operation System
Windows
Windows 10 IoT Core
Linux
Ubuntu 18.04/20.04
Power
Power Type
DC-IN
Input Voltage
12V / 19V
Mechanical
Dimensions (W × D × H)
189.6mm x 148.3mm x 26mm(7.46"x 5.84"x 1.02")
Construction
Metal
Mounting
Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color
Black
Environment
Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@40℃ (non-condensing)
Certification
Certification
CE, FCC Class B, CCC
Description
The Giada Tech D611 is an 11th gen Intel Digital Signage Player supporting 8K displays. Based on the Iris Xe Graphics GPU it provides 1 x Display Port - 8K @ 60Hz , 2 x HDMI – 4K @ 60Hz and multiple USB + RS232 housed in 190 x 149 x 26mm. Support for Wifi 6 and onboard Sim slot allows easy integration of LTE module for complete processing/communication package.
1 x DP, 2 x HDMI, Supporting 8K Display 2 x SO-DIMM DDR4 Memory, Up to 32GB 1 x M-key M.2 (2242/2280) for SSD Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access
