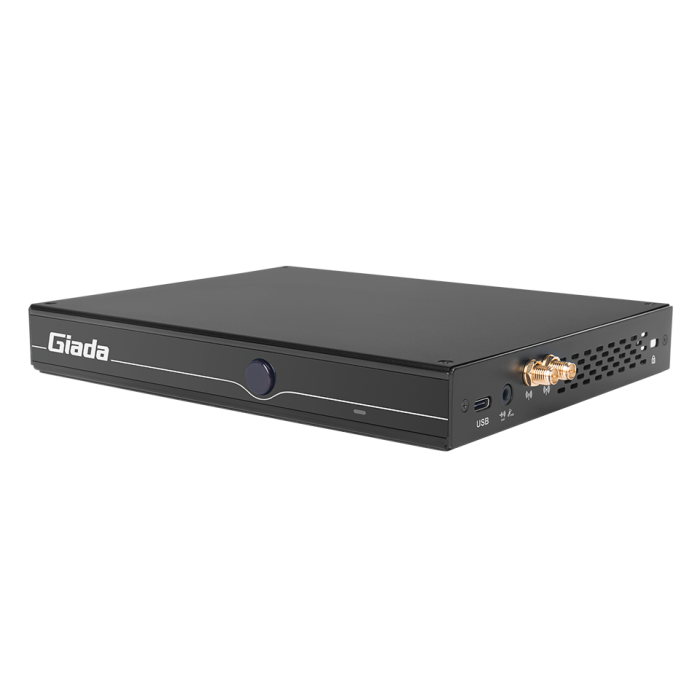

D612 Media Player 12th Gen CPU

Giada Technology Inc.

4 Video Output Media Player Alder Lake (Intel 12th Gen.) Support vPro Technology

Key Features:

  • Intel 12th Gen. Alder Lake Processors
  • High Computing Performance
  • Four Display Outputs
  • Supporting 4K Video Playback
  • Intel vPro Technology
  • Support 5G Mobile Network

In stock

SKU
D612-12xxU40N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / D612 Media Player 12th Gen CPU

Giada D612 features Intel 12th-Gen processors i3-1215U and i5-1235U, which outperform today's 11th-gen "Rocket Lake" by 19%. It can also support Intel 12th-Gen Alder Lake-P processors (optional). The Intel vPro and TPM 2.0 features on the D612 provide increased productivity, remote manageability, and data security.

The player uses an Intel-integrated Iris Xe GPU (Core i5), which improves graphic performance by 50% over the previous generation. It has four HDMI2.0 ports and can support up to four 4K displays (4096 x 2304@60Hz).

Intel Hardware Shield is a hardware-based PC protection solution that includes below-the-OS security, application and data protection, and advanced threat detection.

5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency and massive capacity. The Quectel-RM50XQ 5G module was certified to be compatible with D612.

Key Features:

  • Intel 12th Gen. Alder Lake Processors
  • High Computing Performance
  • Four Display Outputs
  • Supporting 4K Video Playback
  • Intel vPro Technology
  • Support 5G Mobile Network

More Information

brand Giada Technology Inc.
Specifications
CPU CPU

Intel® Core™ i3-1215U processor
Intel® Core™ i5-1235U processor

Efficient Frequency

3.30 GHz/3.30 GHz

Performance Frequency

4.40 GHz/4.40 GHz

Chipset

 SoC

Processing Units

6 Cores /10 Cores

Configurable TDP-up

15 W /15 W
Memory Size Up to 64 GB
Type 2 x SO-DIMM DDR4-3200 MHz
Storage Socket 1 1 x M-Key M.2 (2242/2280) for PCIe SSD
Display

GPU

Intel® UHD Graphics (Core™ Core i3)

Intel® IRIS® Xe Graphics (Core™ Core i5)

Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

Display Interface

4 x HDMI (Max.4096 x 2304 @60 Hz)
Network
Network Controller
1 x Intel® i219LM Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042/3052) for 3G/4G/5G,
1 x SIM Slot
I/O interface

USB

1 x USB Type-C3.2 Gen2,
1 x USB3.2 Gen2, 2 x USB2.0

Serial Port

1 x RS232

Audio

1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT
2 x Connector for 5G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
 Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
NA
Power Requirement
DC-IN, 19 V/3.42 A
Dimensions
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”)
Construction
Metal, Black
Operating System
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 40°C (non-condensing)
Certifications
CE, FCC Class B
Description

Giada D612 features Intel 12th-Gen processors i3-1215U and i5-1235U, which outperform today's 11th-gen "Rocket Lake" by 19%. It can also support Intel 12th-Gen Alder Lake-P processors (optional). The Intel vPro and TPM 2.0 features on the D612 provide increased productivity, remote manageability, and data security.

The player uses an Intel-integrated Iris Xe GPU (Core i5), which improves graphic performance by 50% over the previous generation. It has four HDMI2.0 ports and can support up to four 4K displays (4096 x 2304@60Hz).

Intel Hardware Shield is a hardware-based PC protection solution that includes below-the-OS security, application and data protection, and advanced threat detection.

5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency and massive capacity. The Quectel-RM50XQ 5G module was certified to be compatible with D612.

Key Features:

  • Intel 12th Gen. Alder Lake Processors
  • High Computing Performance
  • Four Display Outputs
  • Supporting 4K Video Playback
  • Intel vPro Technology
  • Support 5G Mobile Network
